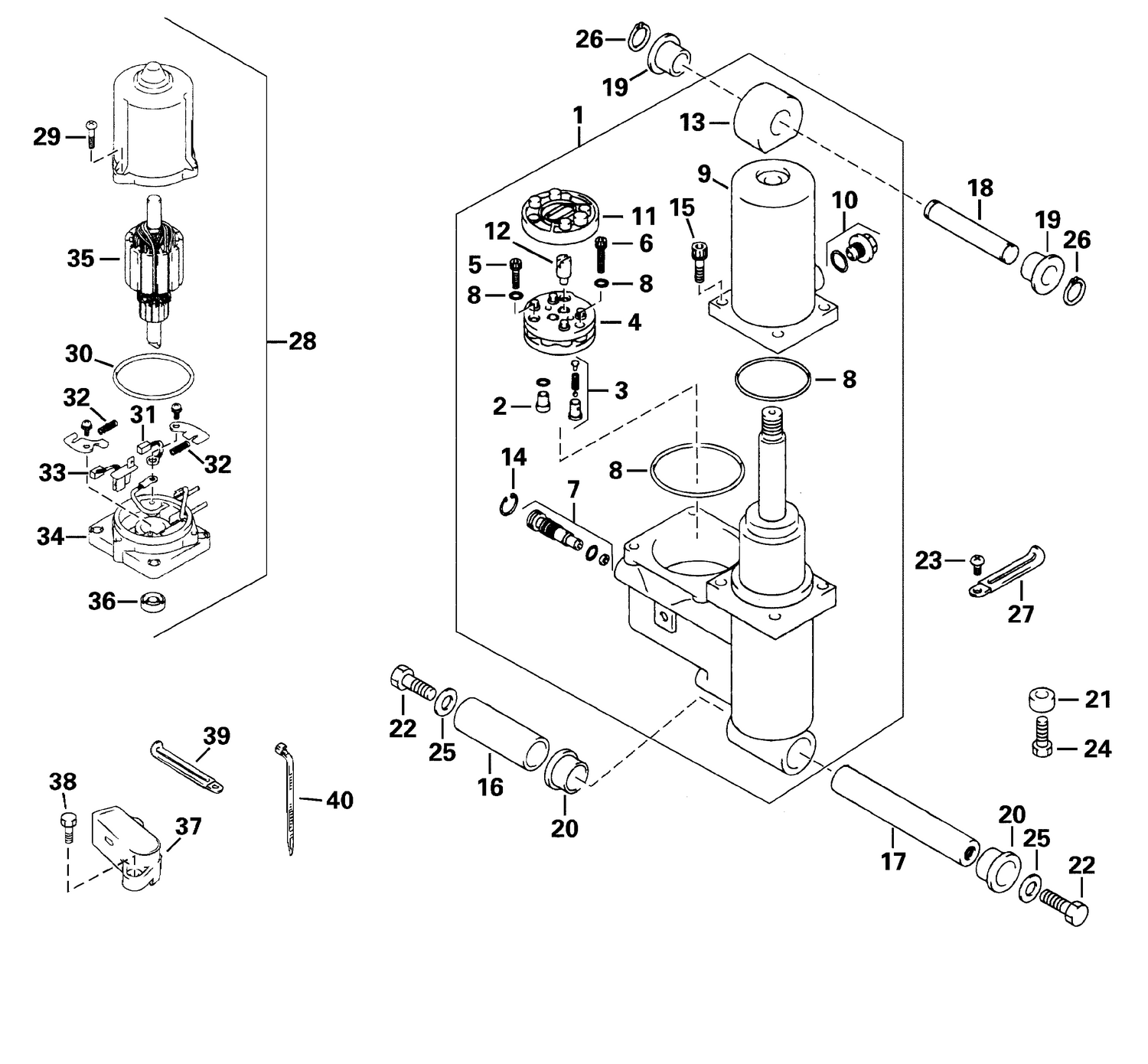

POWER TRIM/TILT HYDRAULIC
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034382 | POWER TRIM This part replaces 5032652. |
| 16 | 5032664 | COLLAR, TILT CYL LOWER |
| 17 | 5032665 | SHAFT, TILT CYL LOWER |
| 18 | 5032666 | TILT SHAFT, Upper |
| 19 | 5032075 | BUSH, TILT CYL UPPER |
| 20 | 5032667 | BUSHING, TILT CYL LOWER |
| 22 | 5032668 | BOLT |
| 23 | 5030409 | SCREW |
| 25 | 5031224 | WASHER |
| 26 | 5031276 | E RING |
| 27 | 5030135 | BRIDE |
| 28 | 5032670 | MOTOR Assy, TRIM & TILT |
| 37 | 5036054 | SENDER ASSY, TRIM This part replaces 5031474. |
| 38 | 5031117 | BOLT |
| 39 | 5030135 | BRIDE |
