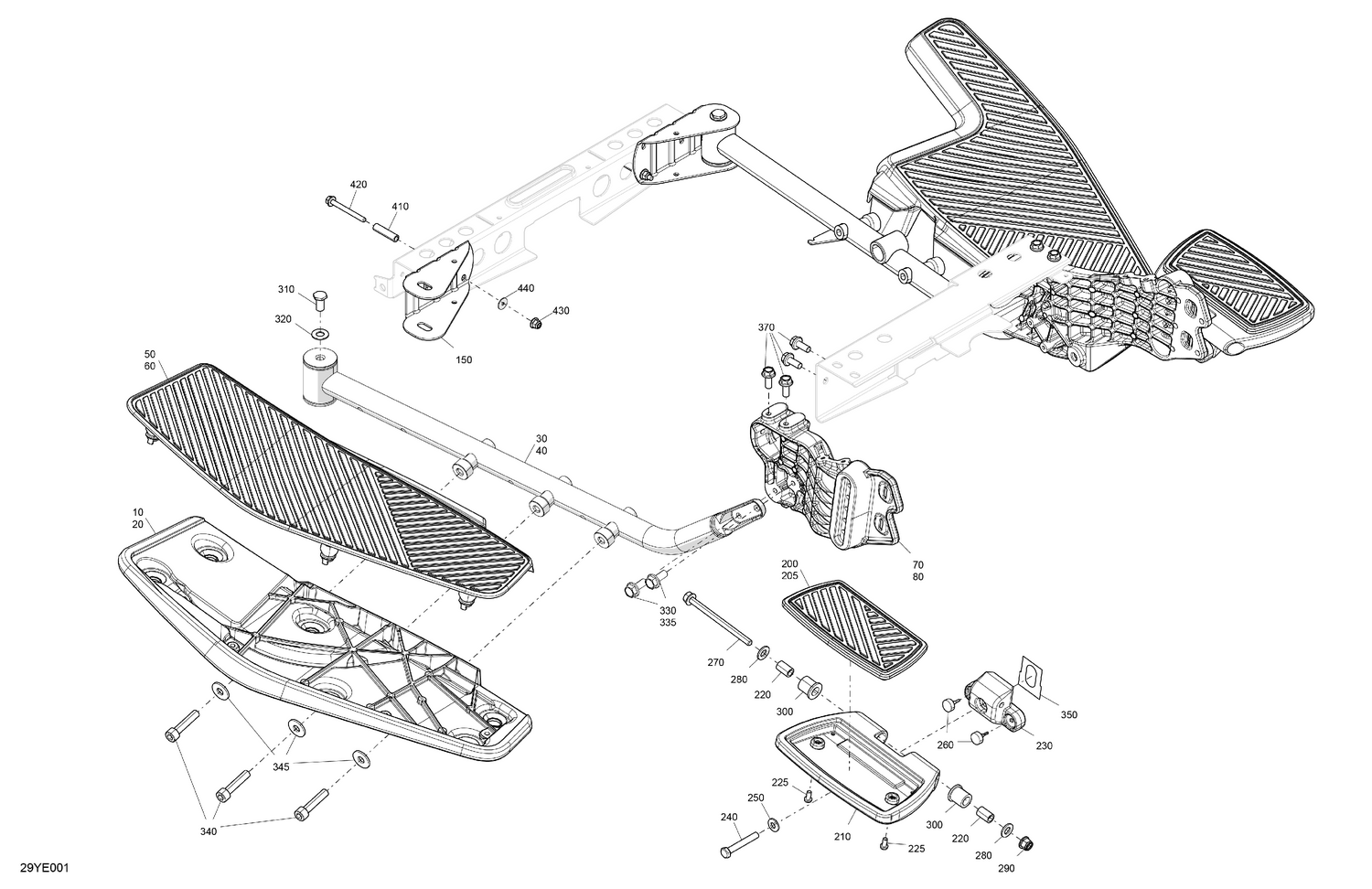

06- Frame - Footrest
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705013902 | Carbon Black, LH Front Footrest |
| 20 | 705013903 | Carbon Black, RH Front Footrest |
| 30 | 705019402 | RH Front Footrest Support |
| 40 | 705019401 | LH Front Footrest Support |
| 50 | 705014002 | RH Front Footrest Pad |
| 60 | 705014004 | LH Front Footrest Pad |
| 70 | 705017860 | Carbon Black, RH Rear Footrest Support |
| 80 | 705019333 | Carbon Black, LH Rear Footrest Support |
| 150 | 705008950 | Tube Support |
| 200 | 705014609 | RH Rear Footrest Pad |
| 205 | 705014610 | LH Rear Footrest Pad |
| 210 | 705015564 | Carbon Black, Rear Footrest |
| 220 | 705002153 | Bushing |
| 225 | 250000099 | Allen Plastite Screw #12 |
| 230 | 548875375 | Carbon Black, Sliding Block -Tx This part replaces 705011141. |
| 240 | 207085556 | Hex. Screw M8 X 55 |
| 250 | 234281474 | Conical Spring Washer M8 |
| 260 | 708003866 | Seat Stopper |
| 270 | 230681034 | Hex. Flange Screw M8 X 110 |
| 280 | 503183800 | Washer |
| 290 | 233281434 | Hex. Flange Elastic Nut M8 |
| 300 | 705003018 | Rubber Bushing |
| 310 | 250000719 | Hex. Cap Screw Full Thread M10 X 20 |
| 320 | 506152582 | Washer |
| 330 | 207582046 | Hex Flange Screw M8 X 20 |
| 335 | 207582046 | Hex Flange Screw M8 X 20 |
| 340 | 250001120 | Socket Screw Nylon Patch M10 X 45 |
| 345 | 503191926 | Washer |
| 350 | 705014173 | Film, Protective |
| 370 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 410 | 705018575 | Spacer |
| 420 | 250000778 | Hex. Flange Screw M6 X 60 |
| 430 | 233261466 | Hex. Flange Elastic Nut M6 |
