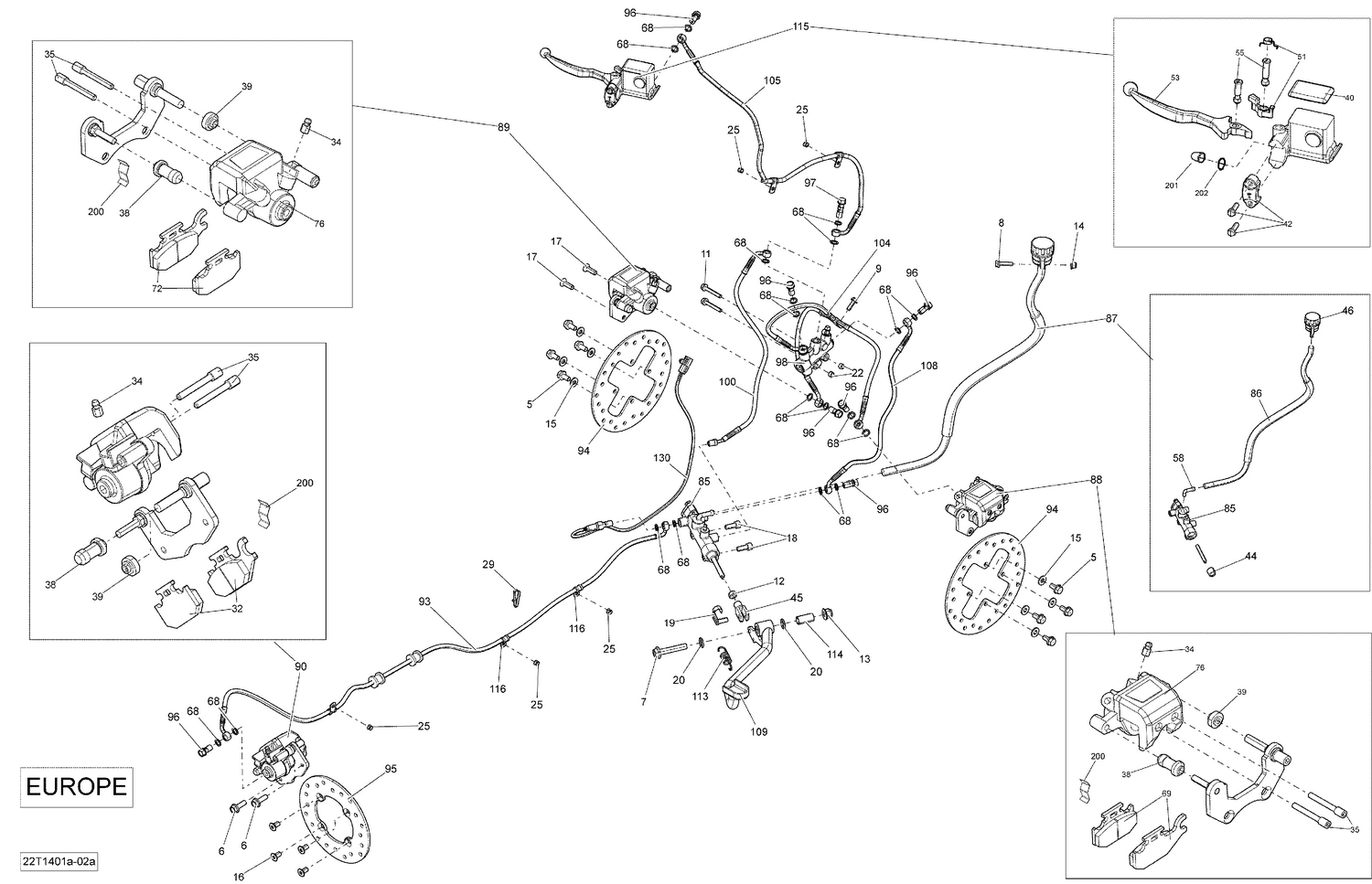

06- Brakes EUROPE
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 6 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 7 | 207605544 | Hex. Flange Screw M10 X 55 |
| 8 | 207662544 | Hex. Flange Screw M6 X 25 |
| 9 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 11 | 210264080 | HEX. SCREW M6 X 40 - Call your local BRP dealership |
| 12 | 232081414 | Hex. Nut M8 |
| 13 | 233201414 | Hex. Flange Elastic Nut M10 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 234281474 | Conical Spring Washer M8 |
| 16 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 17 | 250000143 | Torx Screw M8 X 25, Scotch Grip |
| 18 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip |
| 19 | 219702305 | Pin Kit |
| 20 | 293300144 | O-Ring |
| 22 | 293900104 | Bushing |
| 25 | 390910000 | Pop Rivet 3/16” |
| 29 | 414115200 | Tie-Rap 180 mm |
| 32 | 705600398 | LH Brake Pad Kit |
| 34 | 705600080 | Bleeding Screw |
| 35 | 705600081 | Pin Set (2) |
| 38 | 705600082 | Compression Boot |
| 39 | 705600083 | Compression Boot |
| 40 | 705600084 | Cap Set |
| 42 | 705600087 | BRACKET KIT - Call your local BRP dealership |
| 44 | 705600090 | Compression Boot |
| 45 | 705600100 | Yoke |
| 46 | 705600182 | Oil Tank, Brake Fluid Reservoir |
| 51 | 705600477 | PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership |
| 53 | 705600243 | Lever Arm |
| 55 | 705600246 | Brake Lever Bolt Kit |
| 58 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 68 | 705601628 | Copper Washer This part replaces 705600310. |
| 69 | 705600004 | Brake Pad Kit |
| 72 | 705600014 | Brake Pad Kit |
| 76 | 705600078 | Piston Set |
| 85 | 705600255 | Piston Set |
| 86 | 705600754 | OIL HOUSING HOSE - Call your local BRP dealership |
| 87 | 705600743 | REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership |
| 88 | 705600728 | RH CALIPER - Call your local BRP dealership |
| 89 | 705600729 | LH CALIPER - Call your local BRP dealership |
| 90 | 705600791 | REAR CALIPER - Call your local BRP dealership |
| 93 | 705600929 | Rear Hose |
| 94 | 705600603 | Disk Brake |
| 95 | 705600604 | Disk Brake |
| 96 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 97 | 705600958 | Banjo Bolt |
| 98 | 705600800 | SPLITTER - Call your local BRP dealership |
| 100 | 705600756 | LINE BRAKE - Call your local BRP dealership |
| 104 | 705600757 | LINE BRAKE - Call your local BRP dealership |
| 105 | 705600758 | LINE BRAKE - Call your local BRP dealership |
| 108 | 705600759 | LINE BRAKE - Call your local BRP dealership |
| 109 | 705601154 | BRAKE PEDAL, BLACK - Call your local BRP dealership |
| 113 | 705600792 | Brake Pedal Spring |
| 114 | 705600815 | Inner Spacer |
| 115 | 705600844 | Front Master Cylinder |
| 116 | 293650256 | Clamp This part replaces 705600459. |
| 130 | 705600798 | Brake Switch |
| 200 | 705600079 | Spring |
| 201 | 705600089 | COMPRESSION BOOT - Call your local BRP dealership |
