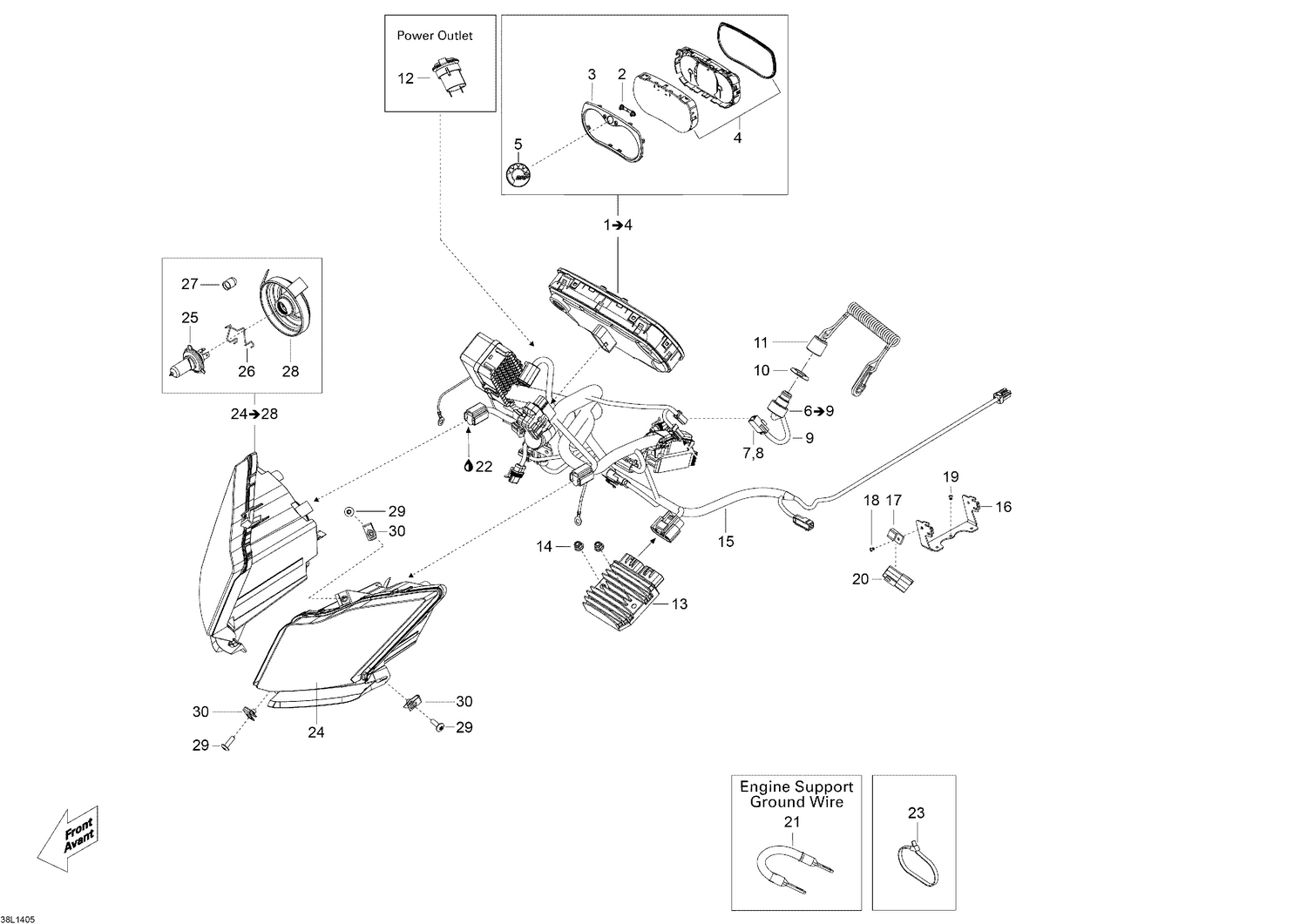

10- Electrical System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens And Seal |
| 5 | 516006224 | BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 7 | 515175232 | Male Terminal |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 409902000 | Tubing 12mm |
| 10 | 278002963 | Safety Nut (DESS Switch) |
| 11 | 515178284 | Dess. This part replaces 515177057. |
| 12 | 710001248 | Power Outlet DC |
| 13 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 515177504 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 16 | 515177073 | FUSEBOX SUPPORT - Call your local BRP dealership |
| 17 | 270000141 | Clip |
| 18 | 293150037 | Avdel Rivet 3/16" |
| 19 | 390402200 | Pop Rivet 3/16 |
| 20 | 515176234 | FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 21 | 515176883 | Ground Wire |
| 22 | 293550004 | Dielectric Grease |
| 23 | 293750001 | Tie-Rap 94 mm |
| 23 | 293750002 | Tie-Rap 142 mm |
| 23 | 414115200 | Tie-Rap 180 mm |
| 25 | 515176274 | Halogen Bulb, 60/55W, 12V |
| 26 | Not | Available As Spare Part - Bulb Holder |
| 27 | 515176498 | Cap |
| 28 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 29 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
