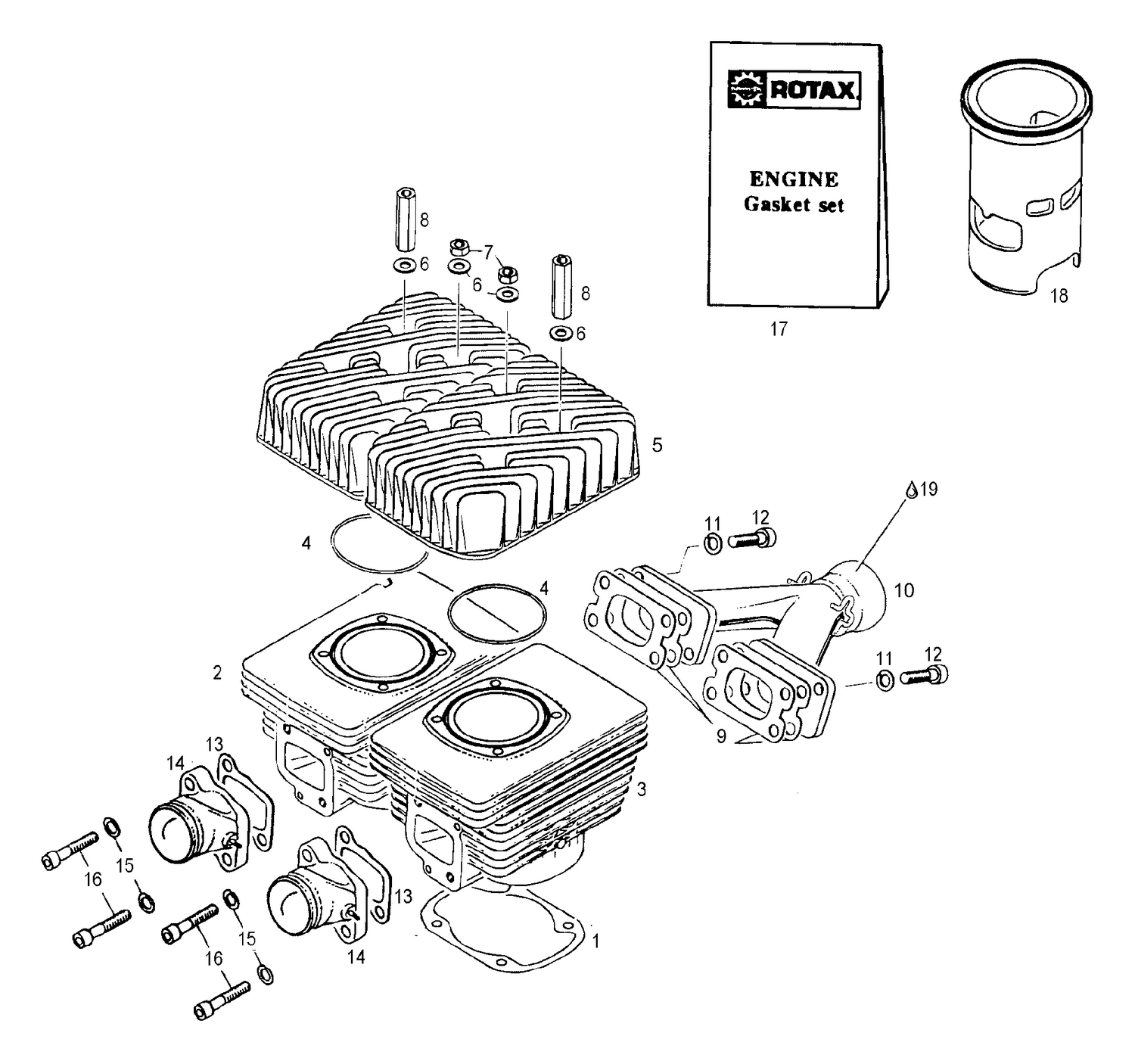

| Ref | Part Number | Description |
|---|
| 1 |
420831858 |
Gasket 0.4 mm |
| 3 |
Not |
Available As Spare Part - Screw M8x45 - DOES NOT APPLY TO THIS MODEL |
| 4 |
293300026 |
O-Ring This part replaces 420850540. |
| 5 |
420923590 |
CYLINDER HEAD - Call your local BRP dealership |
| 6 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 7 |
232081414 |
Hex. Nut M8 |
| 8 |
420842204 |
Distance Nut M8 x 47 This part replaces 420842203. |
| 9 |
420831849 |
Gasket 1.0 mm |
| 10 |
420973512 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 11 |
20014 |
Lock washer |
| 12 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 13 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership This part replaces 420831866. |
| 14 |
420867741 |
Intake manifold |
| 15 |
20014 |
Lock washer |
| 16 |
40131 |
Screw M8x40 |
| 17 |
420994238 |
ENGINE GASKET SET - Call your local BRP dealership |
| 18 |
420823658 |
Spare cylinder sleeve |
