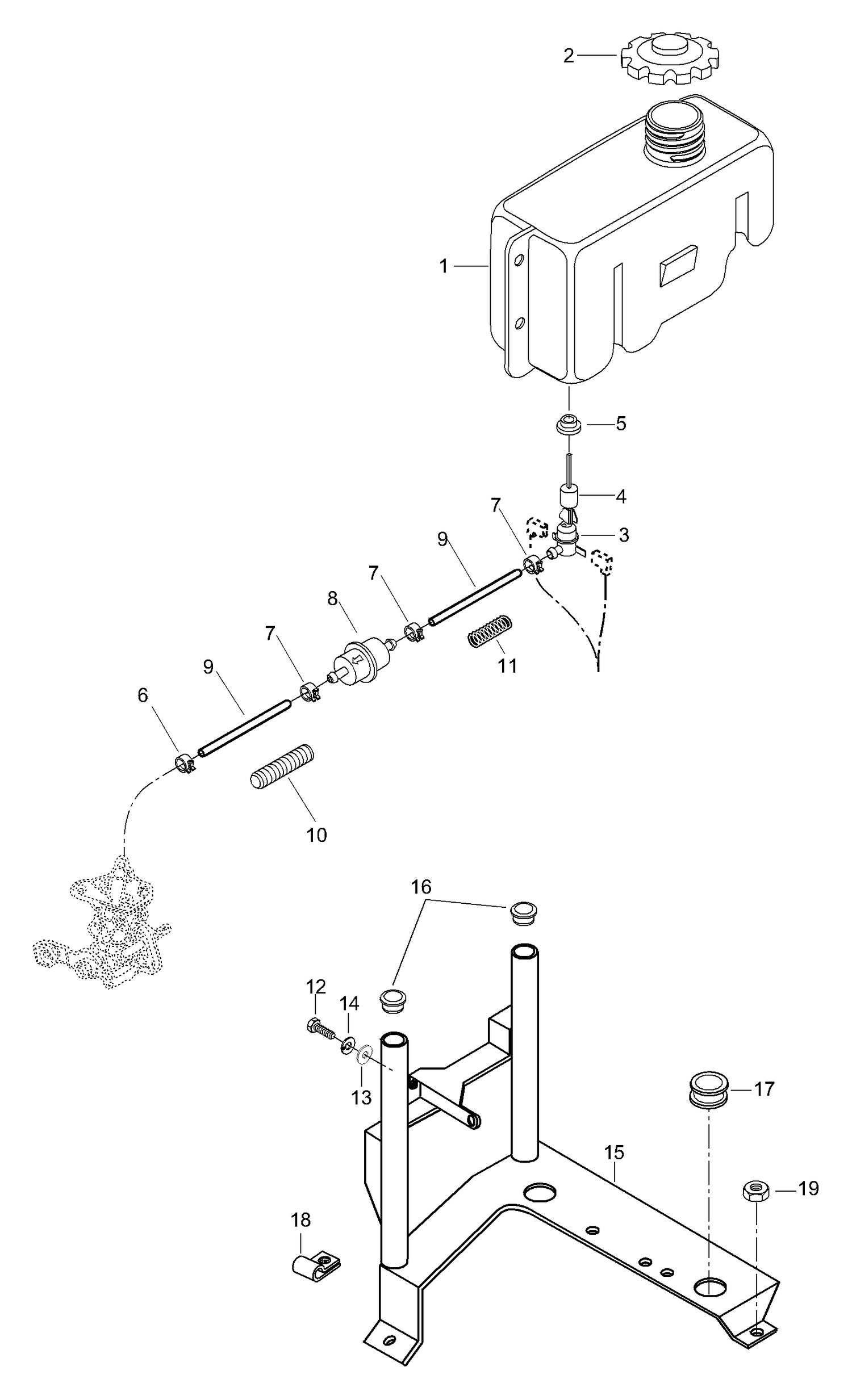

01- Oil Tank
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5142700 | Oil tank |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 4 | 414681900 | Float for sensor |
| 5 | 570023000 | Grommet |
| 6 | 414420700 | Universal Spring Clamp |
| 7 | 27119F | Spring clip |
| 8 | 414536500 | Oil filter |
| 9 | 39046 | Oil line 11/8 |
| 10 | 28015 | Tube |
| 11 | 250002 | Spring |
| 12 | 40029 | Screw M6x16 |
| 13 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 14 | 20052 | Lock washer |
| 15 | 5342647 | Support |
| 16 | 28136 | Plug |
| 17 | 28022 | Grommet |
| 18 | 27092 | Clamp |
