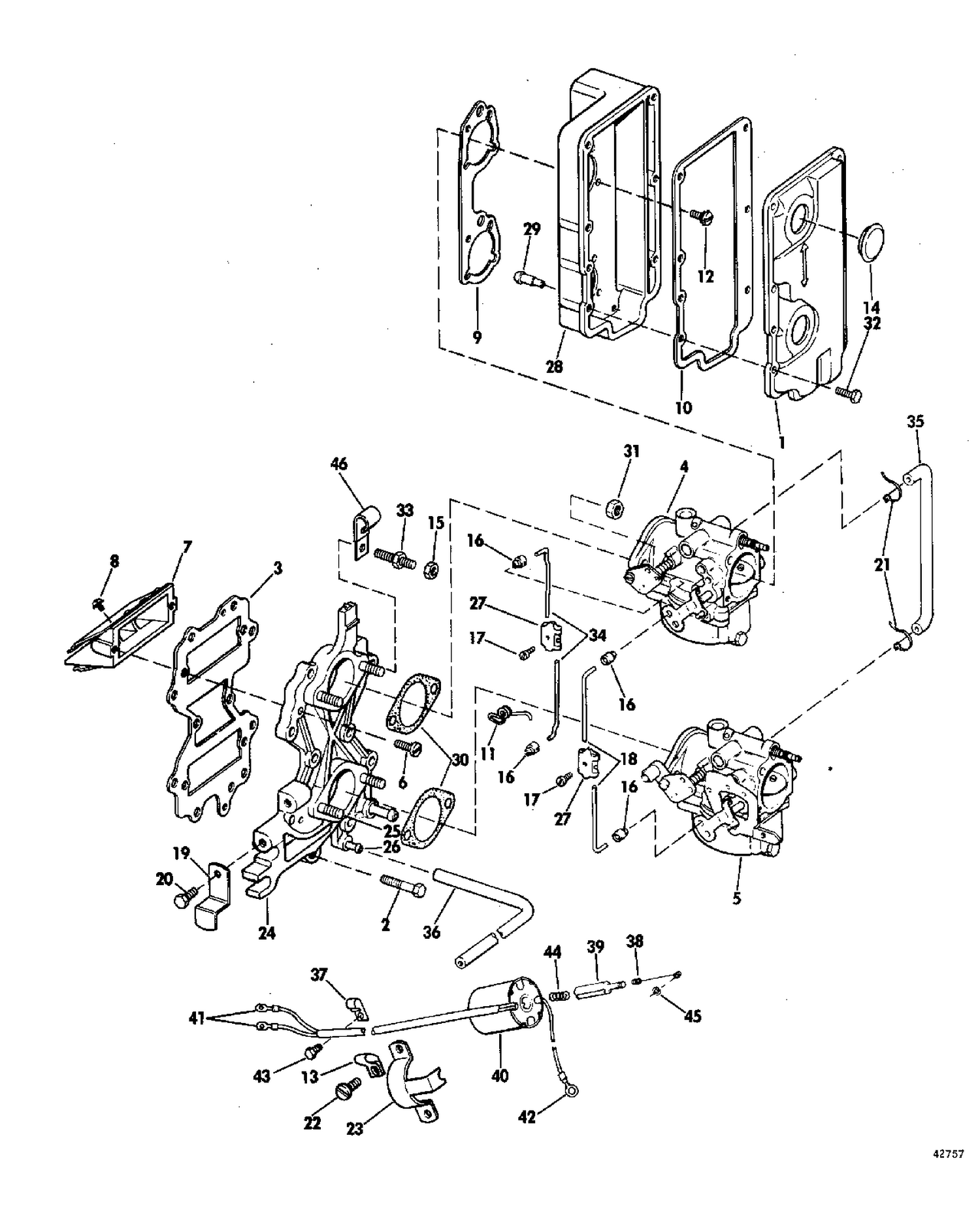

| Ref | Part Number | Description |
|---|
| 1 |
0319898 |
COVER, Air silencer |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET This part replaces 0317504. |
| 4 |
0386367 |
CARB ASSY., Upper |
| 5 |
0386369 |
CARB ASSY., Lower |
| 6 |
0306474 |
SCREW |
| 7 |
0389810 |
LEAF PLATE This part replaces 0383972. |
| 9 |
0321497 |
GASKET, Air silencer This part replaces 0316051. |
| 10 |
0330698 |
GASKET This part replaces 0316091. |
| 11 |
0314807 |
SPRING |
| 12 |
0314496 |
SCREW, Air silencer |
| 13 |
0511514 |
CLAMP, Cable This part replaces 0317883. |
| 14 |
0316074 |
BOUCHON, couvercle de volant-moteur |
| 15 |
0311375 |
NUT This part replaces 0316659. |
| 16 |
0313329 |
LOCKWASHER, Carburetor link |
| 17 |
0303686 |
SCREW, Fastener |
| 18 |
0316073 |
LINK, Carburetor choke |
| 19 |
0318311 |
CLAMP, Throttle & shaft cable |
| 20 |
0308551 |
SCREW, Clamp to intake mfld |
| 21 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 22 |
0551706 |
SCREW |
| 23 |
0316036 |
CLAMP CHOKE SOLENOID |
| 24 |
0386401 |
MANIFOLD ASSEMBLY |
| 27 |
0318974 |
FASTENER, Cable clamp |
| 28 |
0384265 |
BASE AND NIPPLE ASSY |
| 30 |
0325092 |
GASKET This part replaces 0314477. |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 32 |
0314576 |
SCREW |
| 34 |
0314897 |
HOSE, Air silencer |
| 35 |
HOSE, |
Carburetor, upper to lower |
| 36 |
HOSE, |
Air silencer to manifold |
| 38 |
0316075 |
SPRING, Choke colenoid |
| 39 |
0316330 |
PLUNGER ,Choker solenoid |
| 40 |
0386675 |
SOLENDOID ASSY. |
| 43 |
0313117 |
SCR,Clamp,eng cable |
| 44 |
0314739 |
SPRING, Plunger to solenoid |
| 45 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
