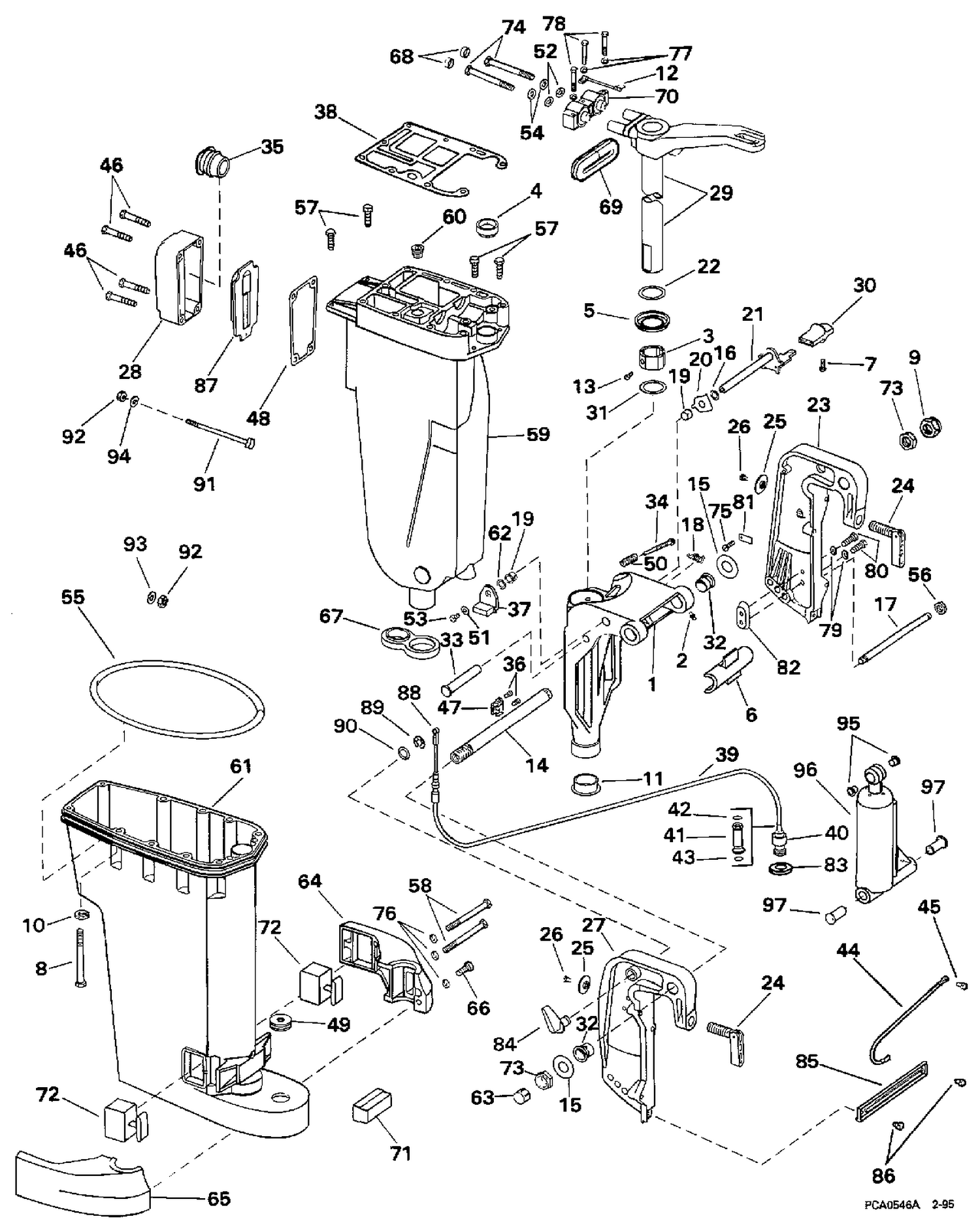

| Ref | Part Number | Description |
|---|
| 1 |
0350642 |
SWIVEL BRACKET This part replaces 0332440. |
| 3 |
0329291 |
BAGUE |
| 4 |
0332407 |
SEAL |
| 5 |
0332452 |
SEAL, Upper |
| 6 |
0341549 |
SHIELD, Tilt tube |
| 7 |
0318238 |
SCREW |
| 8 |
0324812 |
SCREW, Exh. hsg. to powerhead |
| 11 |
0332453 |
THRUST WASHER |
| 12 |
0582494 |
GROUND STRAP |
| 13 |
0317419 |
SCREW |
| 14 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 15 |
0317782 |
THRUST WASHER |
| 17 |
0332447 |
PIN,TILT |
| 18 |
0334259 |
CLIP |
| 19 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 20 |
0333765 |
SPRING |
| 21 |
0398875 |
LEVER & SHAFT |
| 22 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 23 |
0333621 |
STERN BRACKET, Port |
| 27 |
0333623 |
STERN BRACKET, Starboard |
| 28 |
0334343 |
BAFFLE, Exhaust relief |
| 29 |
0433585 |
ARM & SHAFT Assy |
| 30 |
0334438 |
KNOB |
| 31 |
0333821 |
WASHER |
| 32 |
0319787 |
BUSHING |
| 33 |
0332435 |
PIN |
| 35 |
0334883 |
GROMMET |
| 36 |
0306014 |
VIS, ancrage |
| 37 |
0432293 |
LEVER Assembly, Trail lock |
| 39 |
0436202 |
CABLE, Tilt assist |
| 46 |
0335221 |
SCREW, Throttle body to reed plate |
| 47 |
0334161 |
ANCHOR BLOCK |
| 48 |
0334281 |
GASKET |
| 49 |
0321452 |
GROMMET |
| 52 |
0313580 |
WASHER |
| 54 |
0321232 |
RETAINER WASHER |
| 55 |
0332414 |
SEAL |
| 57 |
0309705 |
SCREW |
| 58 |
0339822 |
SCREW, Mount bracket |
| 59 |
0434585 |
EXHAUST HOUSING, Inner |
| 61 |
0340787 |
EXHAUST HOUSING, Outer |
| 62 |
0314390 |
RETAINER |
| 63 |
0317894 |
CACHE, tube de relevage |
| 64 |
0340789 |
MOUNT BRACKET, Port |
| 65 |
0340790 |
MOUNT BRACKET, Stbd. |
| 67 |
0332429 |
GROMMET |
| 68 |
0313581 |
BUMBER, Mount screw |
| 69 |
0344332 |
SEAL, Steering arm This part replaces 0332441. |
| 70 |
0436470 |
MOUNT, Upper |
| 71 |
0332421 |
MOUNT, Bracket front |
| 72 |
0333764 |
MOUNT, Lower |
| 73 |
0335554 |
CROU, tube de relevage |
| 74 |
0333868 |
SCREW |
| 78 |
0339825 |
SCREW, Upper mount |
| 80 |
0333674 |
SCREW, Anode |
| 81 |
0324952 |
CLAMP |
| 82 |
0173029 |
ANODE |
| 83 |
0339033 |
WASHER, Nut, cylinder |
| 84 |
0431962 |
LEVER Assy, Tilt assist |
| 85 |
0357240 |
TIE BAR, Stern bracket This part replaces 0334247. |
| 87 |
0334879 |
PLATE, Baffle |
| 89 |
0328260 |
E-RING |
| 90 |
0334162 |
WASHER |
| 96 |
0434037 |
TILT ASSIST CYLINDER |
| 0434676 |
0434676 |
TRANSOM MOUNT KIT |
