Parts Catalog

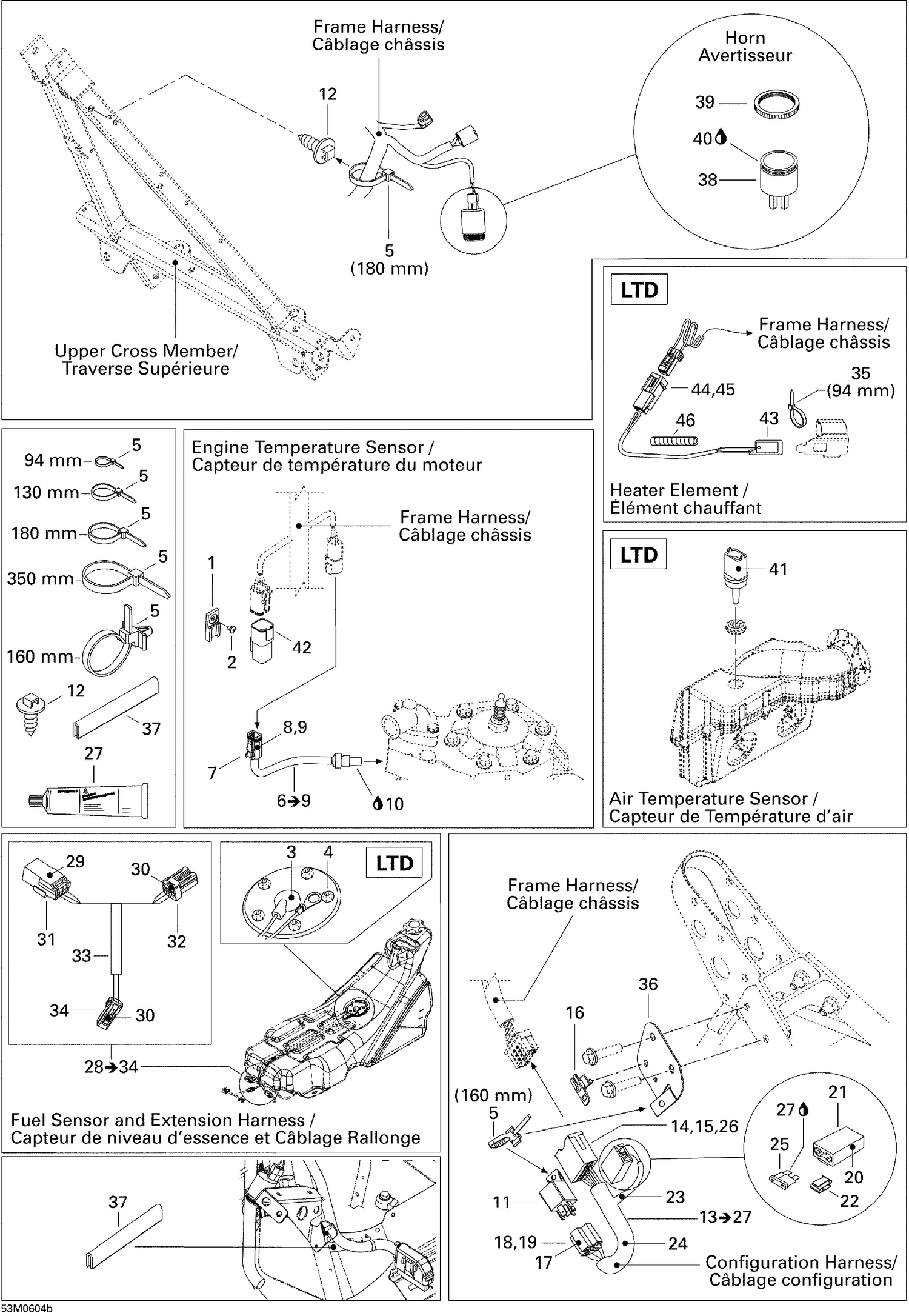

10- Electrical Accessories LTD 2

Parts (46)

Ref	Part Number	Description
1	270000141	Clip This part replaces 515175917.
2	293150037	Avdel Rivet 3/16"
3	515175522	Fuel Sensor
4	232551414	Elastic Stop Nut M5
5	293750001	Tie Wrap 94 mm
5	293750002	Tie Wrap 142 mm
5	293750008	Tie Wrap 368 mm
5	293750009	Tie-Rap 173 mm
5	414115200	Tie-Rap 180 mm
7	278000739	Male Connector, 4 Circuits
8	278000632	Female Terminal
9	515175677	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
10	219704455	Was 293800018 Loctite 592, 50 ml
11	710010053	Relay This part replaces 410113200.
12	293730040	Mount Dart This part replaces 293730018.
14	515175232	Male Terminal
15	515175273	MALE TERMINAL - Call your local BRP dealership
16	515175283	Housing Support
17	409209900	Female Housing, 5 Circuits
18	561503100	FEMALE TERMINAL - Call your local BRP dealership
19	561503100	FEMALE TERMINAL - Call your local BRP dealership
20	409011600	Female Terminal
21	409004000	Fuse Holder
22	409014200	CLIP - Call your local BRP dealership
23	219704425	Tubing 6 Mm 3000Mm Long
24	219704400	Was 409901800 Tubing (13 mm)
25	278000344	Fuse, 5 Amperes
26	515175720	MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
27	219704453	Was 293550004 Dielectric Grease, 150 g
29	515175232	Male Terminal
30	515175231	Female Terminal
31	515175494	Male Housing, 3 Circuits
32	515175495	Female Housing, 3 Circuits
33	219704425	Tubing 6 Mm 3000Mm Long
34	515175658	Female Housing, 2 Circuits
35	293750001	Tie Wrap 94 mm
36	515176020	HARNESS SUPPORT - Call your local BRP dealership
37	219704353	Was 271000110 Protection Trim
38	515176035	HORN - Call your local BRP dealership
39	414805101	PLASTIC NUT - Call your local BRP dealership
40	296000309	Silicone Sealant 51388, 300 ml
41	270600000	AIR TEMPERATURE SENSOR - Call your local BRP dealership
42	515176234	FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
43	515176256	Heater Element
44	515175654	Male Terminal Housing, 2 Circuits
45	515175232	Male Terminal
