Parts Catalog

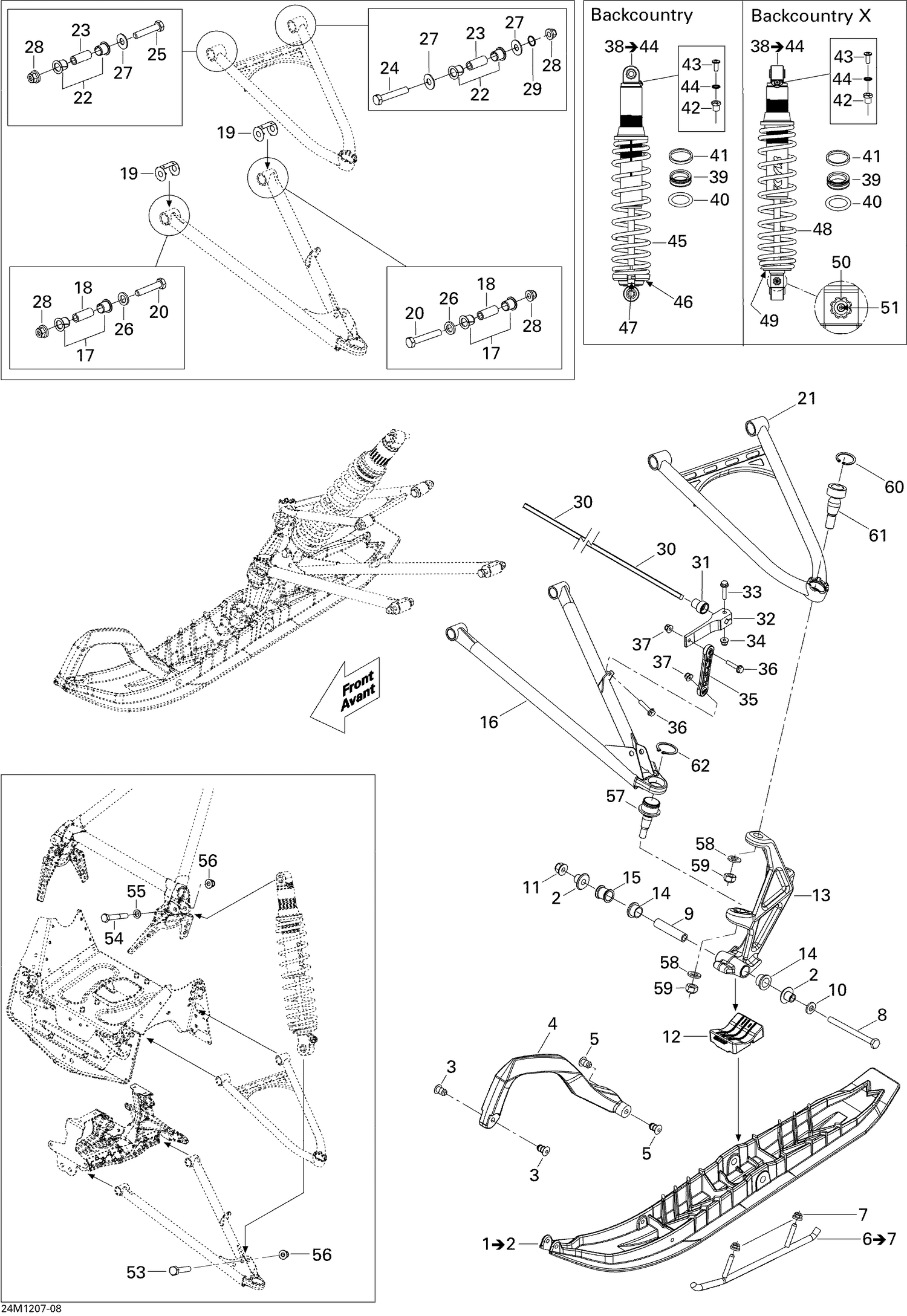

07- Front Suspension And Ski

Parts (55)

Ref	Part Number	Description
2	505071781	Ski Bushing
3	505071812	Retainer 17mm long
4	505072976	Black, Handle
5	505072133	Retainer 23mm Long
7	233281414	Hex. Flange Elastic Nut M8
8	250000703	Hex. Screw M10 X 130 This part replaces 230003044.
9	506133300	Spacer
10	732900049	Washer
11	233201414	Hex. Flange Elastic Nut M10
12	505072594	Ski Stopper
14	505072690	Leg Bushing
15	505071999	Spacer
16	505072497	Black, RH Lower Arm
16	505072498	Black, LH Lower Arm
17	505072208	Bushing
18	505072209	Sleeve This part replaces 505072393.
19	505072634	Wear Plate
20	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
21	505073468	LH Upper Arm 39" This part replaces 505073074.
21	505073469	RH Upper Arm 39" This part replaces 505073076.
22	505072250	Bushing
23	505072143	Sleeve
24	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
25	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
26	503189564	Washer
27	505072392	Washer
28	250100165	Hex. Flange Elastic Nut M10 This part replaces 250100088.
29	505072448	O-Ring
30	505072602	Stabilisator
31	505072064	Bushing
32	505072394	Stabilisator Lever
33	207663046	Hex. Flange Screw M6 X 30
34	233261416	Elastic Flange Nut M6 X 1.0
35	505072204	Sway Bar Double Joint Link
36	207663046	Hex. Flange Screw M6 X 30
37	233261416	Elastic Flange Nut M6 X 1.0
39	505189309	Free Piston
40	414888312	O-Ring
41	503189308	Piston Ring
42	505070398	Air Valve
43	505070399	Screw
44	505070400	O-Ring
48	XXX	Not Available As Spare Parts
49	XXX	Not Available As Spare Parts
50	XXX	Not Available As Spare Parts
51	XXX	Not Available As Spare Parts
53	207005544	Hex. Screw M10 X 55
54	207006544	Hex. Screw M10 X 1.5 X 65
55	503189564	Washer
56	233201414	Hex. Flange Elastic Nut M10
57	505073636	Ball Joint This part replaces 505072682.
58	234021410	Flat Washer 12 mm
59	250100089	Hex. Elastic Hex. Nut M12
60	293370070	Circlip
61	505072913	Upper Ball Joint
