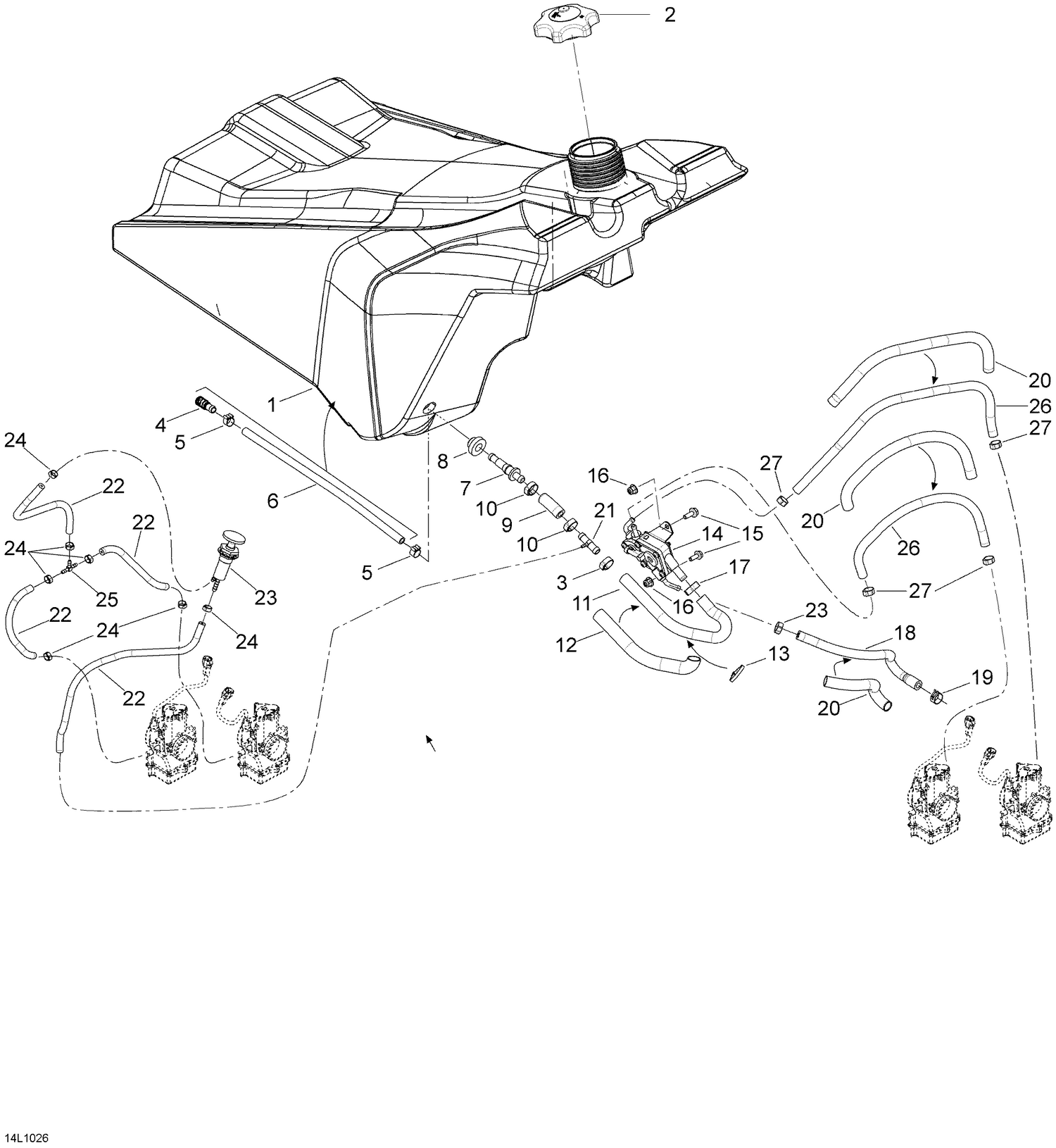

02- Fuel System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033455 | Fuel Tank |
| 2 | 513033752 | Fuel Tank Cap This part replaces 513033103. |
| 3 | 293650043 | Clamp |
| 4 | 414872100 | Fuel Filter |
| 5 | 513033010 | Norma Spring Clamp |
| 6 | 219704391 | POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 7 | 414872700 | Male Connector |
| 8 | 513033435 | Grommet |
| 9 | 709000668 | HOSE 9.53MM AVON #70-570000 - Call your local BRP dealership This part replaces 415129546. |
| 10 | 293650053 | Crimp Clamp |
| 11 | 513033439 | FORMED HOSE - Call your local BRP dealership |
| 12 | 415080000 | Tubing 16 mm |
| 13 | 414115200 | Tie-Rap 180 mm |
| 14 | 513033420 | FUEL PUMP - Call your local BRP dealership |
| 15 | 207661644 | Hex. Flange Screw M6 X 16 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 414415200 | Universal Spring Clamp |
| 18 | 513033111 | FORMED HOSE - Call your local BRP dealership |
| 19 | 513033029 | Spring Clamp |
| 20 | 409901800 | Tubing 13 mm |
| 21 | 415119300 | T-Fitting |
| 22 | 709000665 | HOSE - Call your local BRP dealership This part replaces 513033423. |
| 23 | 513033441 | Primer |
| 24 | 293650043 | Clip |
| 25 | 414222400 | T-Fitting |
| 26 | 513033448 | Hose |
