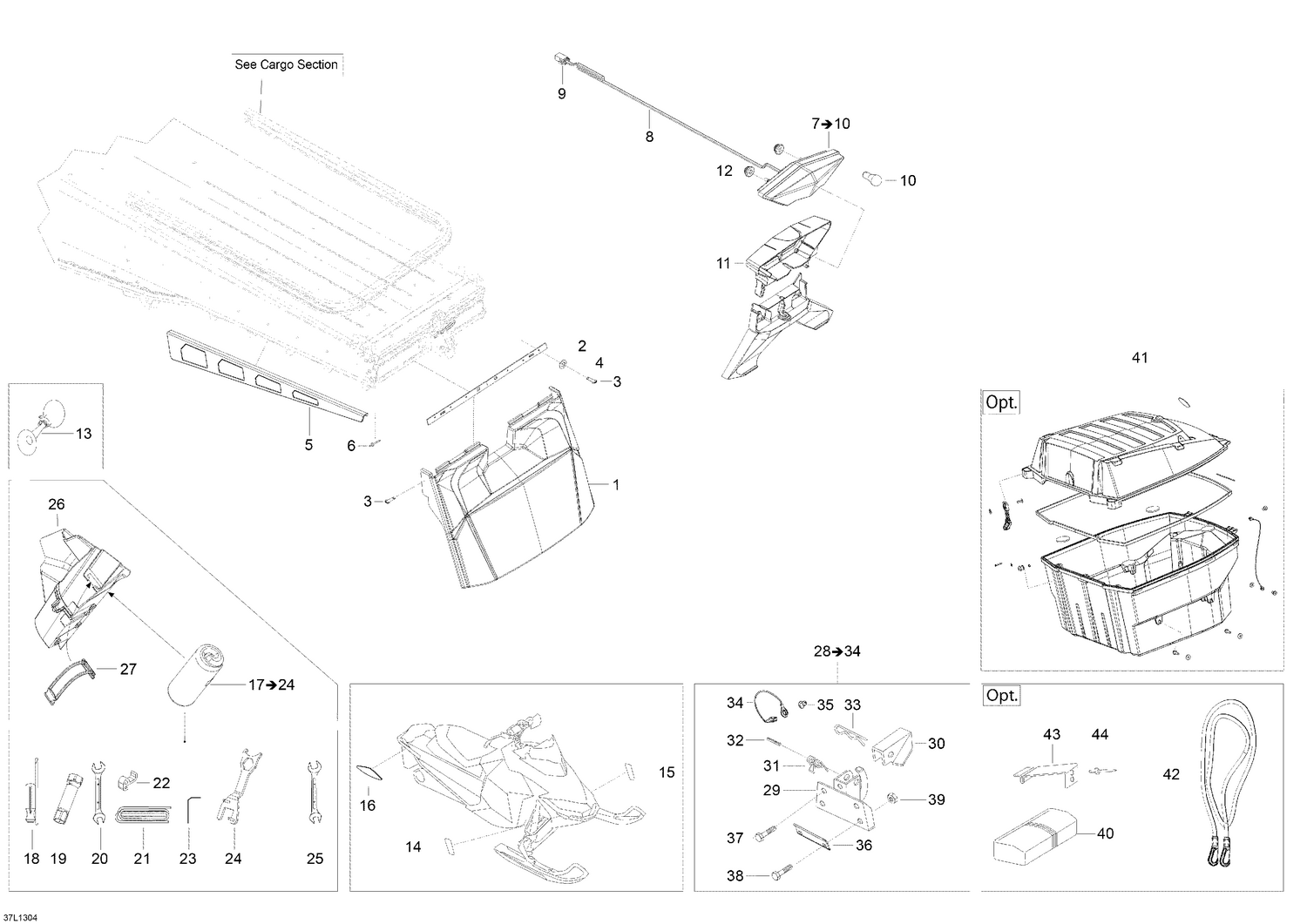

09- Utilities
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001004 | Snow Guard |
| 2 | 520001022 | Fastening Plate |
| 3 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000849 | Wiring Harness |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Support |
| 12 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 13 | 549011291 | Horn |
| 14 | 520001600 | Yellow RH Reflector This part replaces 520000843. |
| 15 | 520001601 | Yellow LH Reflector This part replaces 520000844. |
| 16 | 705002423 | Reflector AMBER |
| 18 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 19 | 529000046 | Socket Wrench |
| 20 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 21 | 412500200 | Starter Rope |
| 22 | 529000060 | Starter Grip |
| 23 | 520001142 | Key |
| 24 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 25 | 34017 | Wrench |
| 26 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 27 | 520000528 | Latch |
| 29 | 520001040 | Hook |
| 30 | 520001041 | LOCKING PLATE - Call your local BRP dealership |
| 31 | 545693 | SPRING - Call your local BRP dealership |
| 32 | 41012 | Spring Pin 6 x 30 |
| 33 | 41029 | Cotter Spring |
| 34 | 293750069 | Retainer Cable This part replaces 5446839. |
| 35 | 390909100 | Avex Rivet |
| 36 | 520000727 | Plate |
| 37 | 207782544 | Screw M8 x 25 |
| 38 | 207784044 | Screw M8 x 40 |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 520900004 | Tool Box Ass´y (Opt.) |
| 41 | 511000722 | Cargo Box Ass´y (Opt.) |
| 42 | 21156 | Rope (Opt.) |
| 43 | 5346728 | Toolkit Support Spring (Opt.) |
