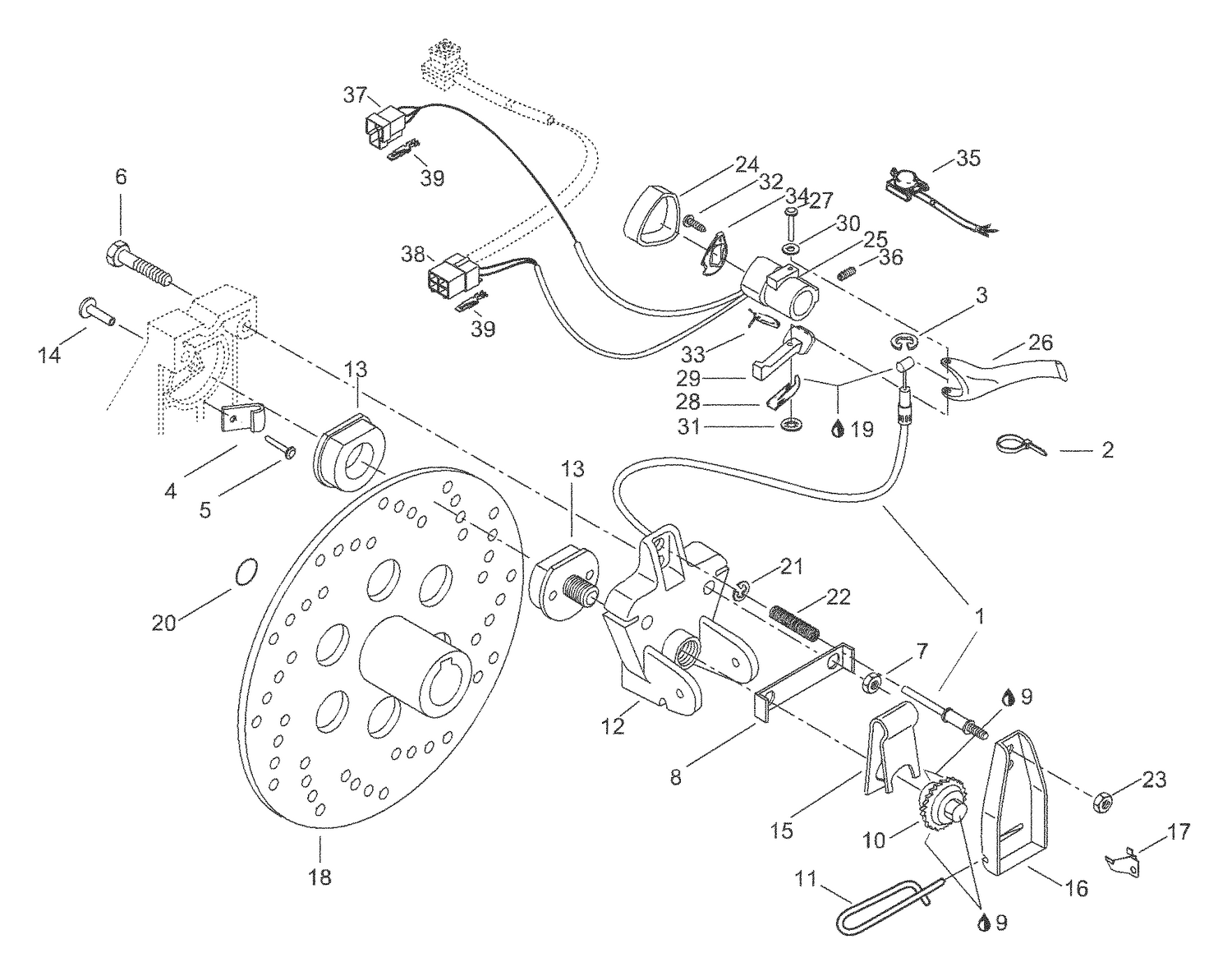

| Ref | Part Number | Description |
|---|
| 1 |
414922500 |
BRAKE CABLE - Call your local BRP dealership |
| 2 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 3 |
414274500 |
Circlip |
| 4 |
507022600 |
WEAR INDICATOR - Call your local BRP dealership |
| 5 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 6 |
40010 |
Screw M8x55 |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 8 |
507020400 |
LOCK-TAB - Call your local BRP dealership |
| 9 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 10 |
507019600 |
Ratchel wheel |
| 11 |
507027500 |
Pin |
| 12 |
507027600 |
Brake lining holder |
| 13 |
860701700 |
Pad_Brake Kit - Call your local BRP dealership |
| 14 |
293150104 |
Pop Rivet 3/16 This part replaces 390409600. |
| 15 |
507020200 |
RELEASE SPRING - Call your local BRP dealership |
| 16 |
507021500 |
LEVER - Call your local BRP dealership |
| 17 |
507009400 |
RATCHET SPRING - Call your local BRP dealership |
| 18 |
507029000 |
WELDED DISK - Call your local BRP dealership |
| 19 |
293550004 |
Dielectric grease |
| 20 |
414928900 |
O'RING - Call your local BRP dealership |
| 21 |
371901300 |
Circlip |
| 22 |
414460600 |
SPRING - Call your local BRP dealership |
| 23 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 24 |
572073800 |
BRAKE COVER - Call your local BRP dealership |
| 25 |
515169800 |
Brake handle housing |
| 26 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 27 |
517229400 |
PIN - Call your local BRP dealership |
| 28 |
517229300 |
Spring |
| 29 |
572025200 |
Brake lever |
| 30 |
414729400 |
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 31 |
389804300 |
Push Nut |
| 32 |
414473200 |
Screw |
| 33 |
415085700 |
Brake light switch |
| 34 |
572086600 |
Cover |
| 35 |
415085800 |
Dimmer switch |
| 36 |
414440800 |
Socket Set Screw M8 X 10 |
| 37 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 38 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
