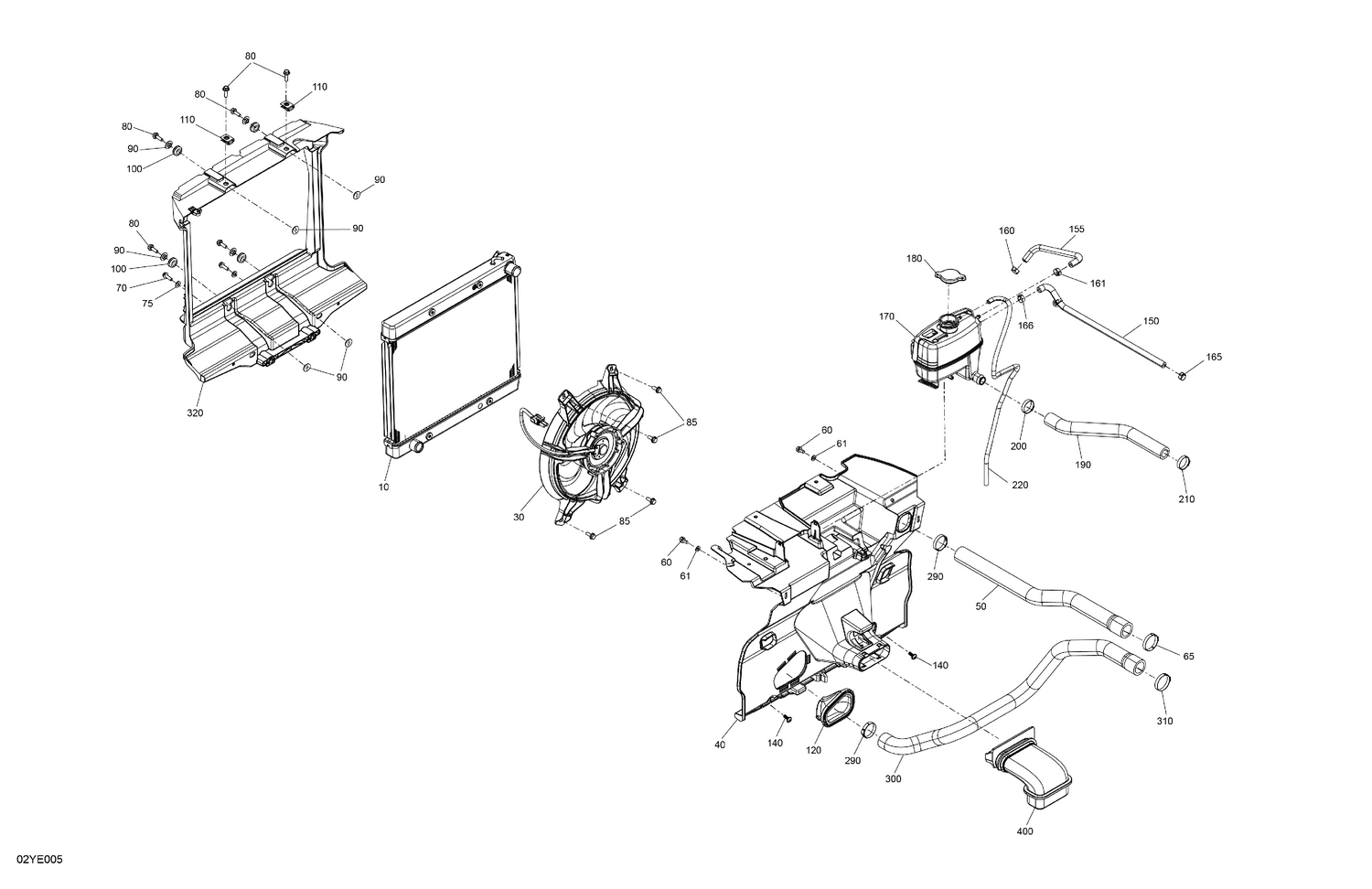

02- Engine - Cooling
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709201318 | Radiator |
| 30 | 709201224 | Fan Ass'y |
| 40 | 705017424 | Rear Deflector |
| 50 | 709201227 | Formed Radiator Hose |
| 60 | 210261250 | Hex. Flange Screw M6 X 12 |
| 61 | 234061670 | Black, Flat Washer 6 mm |
| 65 | 293650199 | Oetiker Gear Clamp |
| 70 | 210262050 | Hexagonal Head Screw |
| 75 | 234061670 | Black, Flat Washer 6 mm |
| 80 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 85 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 90 | 709001287 | Bushing |
| 100 | 293720130 | Overmolded Grommet |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 120 | 705017962 | Radiator Hose Boot |
| 140 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 150 | 709201254 | Formed Radiator Hose |
| 155 | 709201230 | Formed Radiator Hose |
| 160 | 293650046 | Oetiker Clamp |
| 161 | 293650046 | Oetiker Clamp |
| 165 | 293650046 | Oetiker Clamp |
| 166 | 293650046 | Oetiker Clamp |
| 170 | 709201500 | Coolant Tank Ass'y |
| 180 | 509000187 | Pressure Cap |
| 190 | 709201228 | Formed Radiator Hose |
| 200 | 293650165 | Oetiker Gear Clamp |
| 210 | 293650165 | Oetiker Gear Clamp |
| 220 | 219704410 | Polyurethane Hose 10000Mm Long |
| 290 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 300 | 709201229 | Formed Radiator Hose |
| 310 | 293650199 | Oetiker Gear Clamp |
| 320 | 705018530 | Front Deflector |
