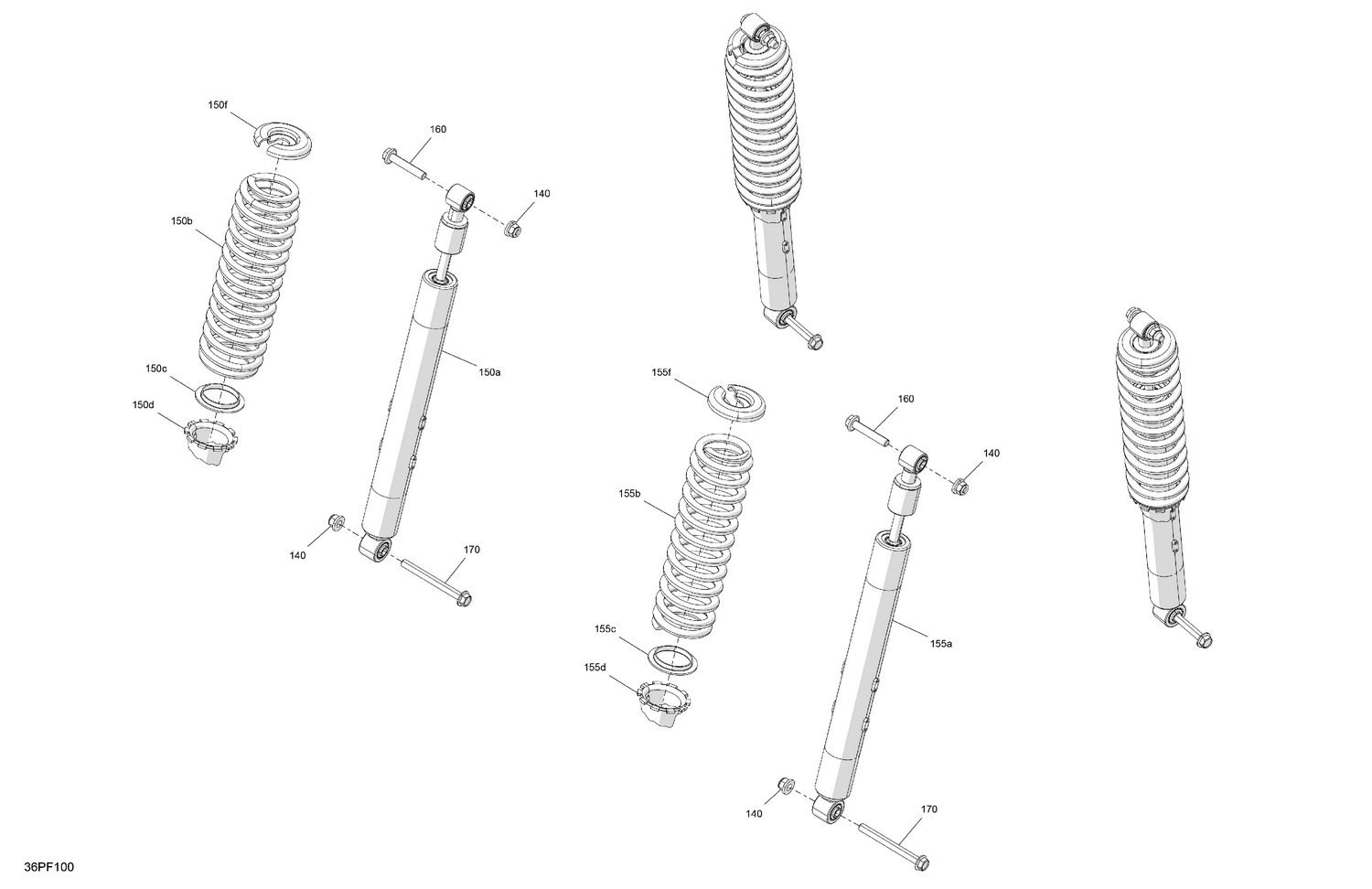

05- Suspension - Rear Shocks
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 140 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 150a | 706005673 | Rear Shock Absorber |
| 150b | 706005674 | Deep Black, Rear Compression Spring |
| 150c | 706005994 | Guide Spring |
| 150d | 706003123 | Cam Adjustment |
| 150f | 706205679 | Spring Guide |
| 155a | 706005678 | Rear Shock Absorber |
| 155b | 706005679 | Deep Black, Rear Compression Spring |
| 155c | 706005994 | Guide Spring |
| 155d | 706003123 | Cam Adjustment |
| 155f | 706205679 | Spring Guide |
| 160 | 207605546 | Hex. Flange Screw M10 X 55 |
