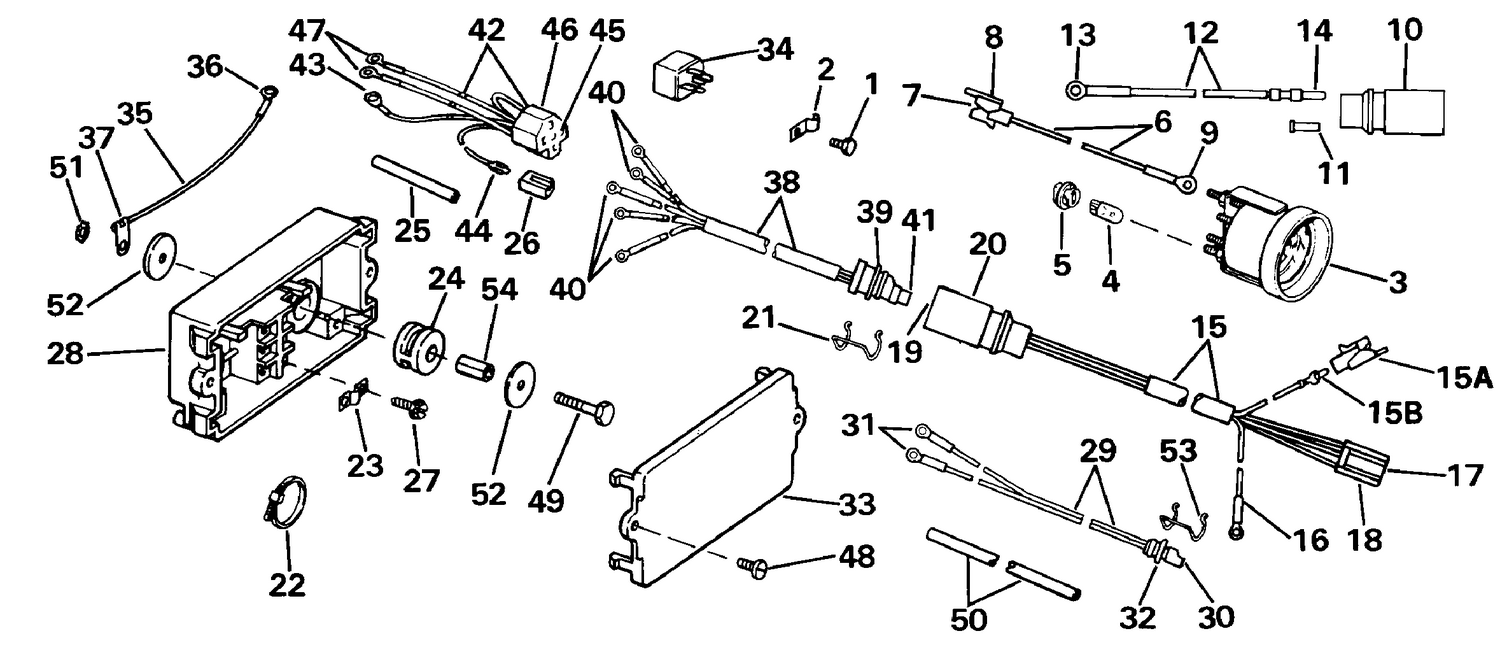

| Ref | Part Number | Description |
|---|
| 2 |
0317000 |
COLLIER, câble |
| 3 |
0175483 |
TRIM/TILT GAUGE KIT, CLASSIC SERIES This part replaces 0583254. |
| 6 |
0583255 |
LEAD ASSEMBLY |
| 12 |
0582093 |
LEAD ASSY This part replaces 0582092. |
| 15B |
0512904 |
BULLET TERMINAL |
| 21 |
0512743 |
DISPOSITIF DE RETENUE |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
0315004 |
FIL DE LIAISON, bornier |
| 24 |
0315057 |
MOUNT, Bracket |
| 27 |
0329289 |
JUNCTION BOX & COVER |
| 28 |
0512776 |
BASE Junction box |
| 29 |
0583105 |
CABLE ASSY., Sending unit |
| 33 |
0583707 |
COVER ASSY This part replaces 0583090. |
| 35 |
0582671 |
LEAD ASSY. Junction box ground |
| 38 |
0583158 |
CONNECTOR |
| 42 |
0582986 |
CONN ASSY., Blue leads (trim up) |
| 42 |
0582987 |
CONN ASSY., Green leads (trim down) |
| 48 |
0329182 |
VIS, borne |
| 49 |
0313606 |
SCREW, Junction box mount |
| 50 |
0327267 |
SLEEVE This part replaces 0512422. |
| 53 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 0583107 |
0583107 |
JUNCTION BOX & COVER ASSY |
| 0583206 |
0583206 |
GAUGE & CABLE ASSY. |
