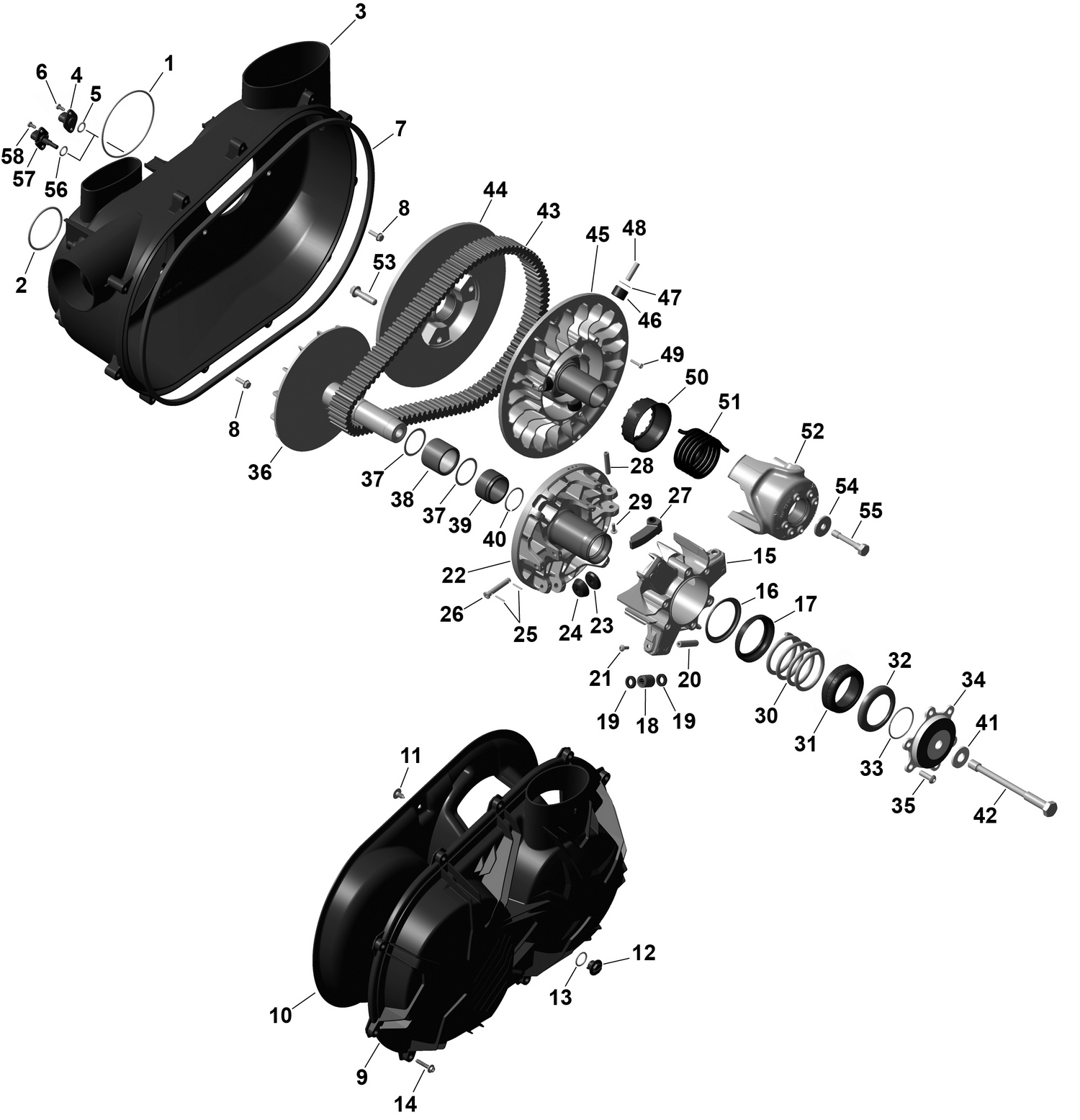

01- ROTAX - CVT — Parts Catalog

Parts (49)

Ref	Part Number	Description
3	420212609	CVT Air Guide
4	XXX	Not Available As Spare Parts
5	XXX	Not Available As Spare Parts
6	XXX	Not Available As Spare Parts
7	420450405	Gasket
8	420441311	Hex.Screw M6 X 20
9	420212508	Variator Cover
10	420897385	Insulating Mat
11	420651816	Trim Button
14	420441575	Torx Screw 6X30
16	417224910	Stopper Spring
17	420427801	Spring Support
18	417224861	Roller Pulley Ass'y
19	420626233	Thrust Washer
20	417224204	Axle - 10mm
21	250000763	Torx-Truss M/S M5 X 14 S.Grip
23	417224153	Back Torque Roller
24	420629222	Ext Roller Pulley
25	250400101	Spring Pin 2.6MM X 20.5MM This part replaces 250400074.
26	417224510	Pin
27	420248735	Roller Lever Ass'y
28	417224694	Pin Ramp
29	250000763	Torx-Truss M/S M5 X 14 S.Grip This part replaces 420841081.
30	420638133	Compression Spring, Drive Pulley
31	420427809	Spring Support
32	420427354	Seat Spring
33	293370116	Circlip
34	420280275	Governor Cup Torque Flange
35	420841085	Hex Screw M8 X 2 This part replaces 420841083.
36	420280811	Flasque Fixe Ass.
37	420427220	Washer
38	420832351	Needle Roller Bearing With Sleeves
39	420660284	Stop Sleeve
40	420845741	Retaining Ring 35 x 1.5
41	420245690	Washer
42	420841161	Hexagonal Screw M14X 165
43	422280652	Drive Belt This part replaces 420280652.
44	420280636	Sliding Pulley Ass'y
46	417127016	Pulley Roller
47	420227946	Thrust Washer
48	420629192	Bearing Pin
49	420841531	Torx Screw M4 X 20
50	420427805	Spring Support
51	420638126	Spring
52	420280846	Cam 48/52 Ass'y
53	420841711	Torx Flange Screw M10 X 40
54	420427243	Collar Washer
55	420441990	Hexagonal Screw M10X 61
57	515176366	Air Temperature Sensor
