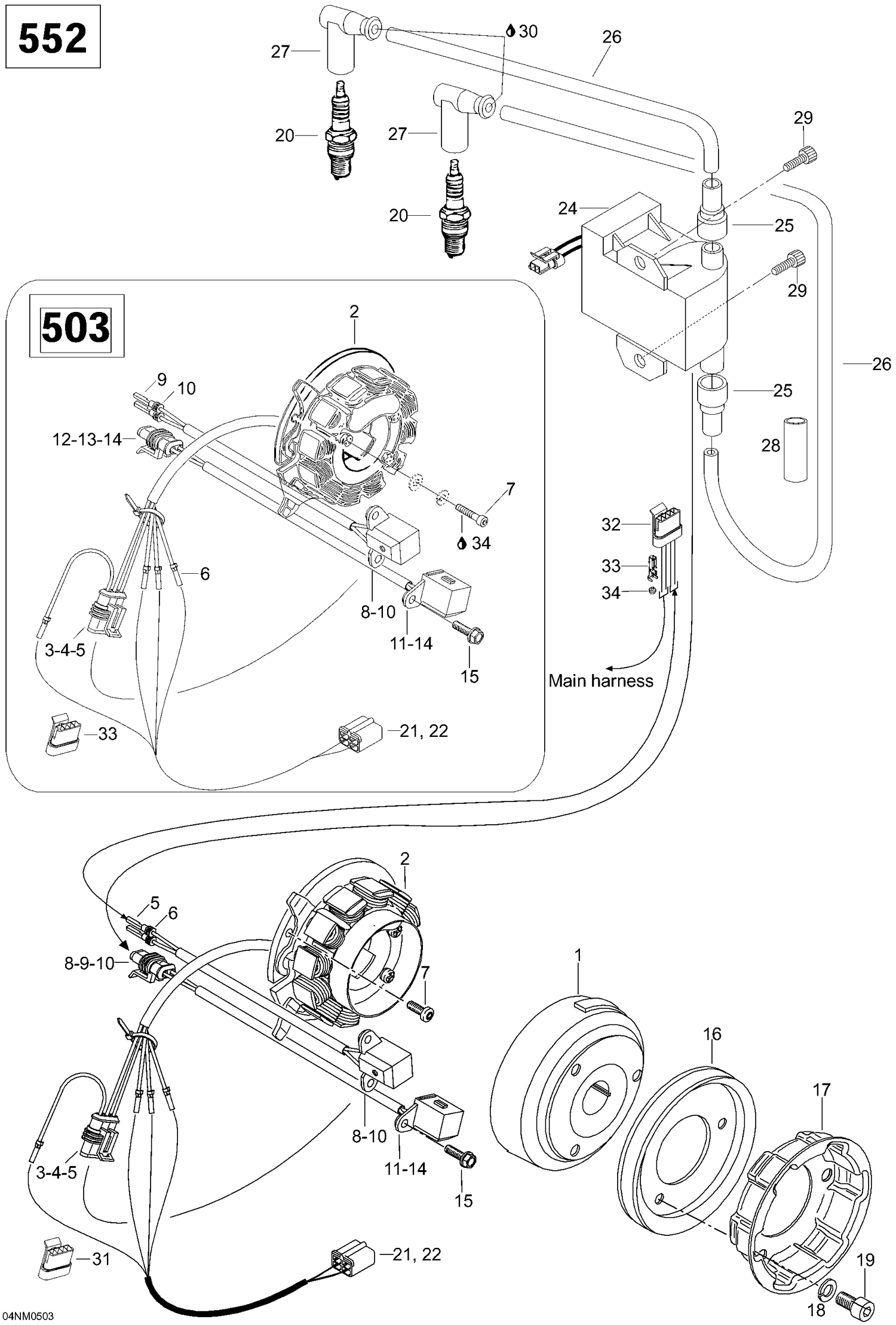

03- Magneto, 6900
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 409209600 | Female terminal housing (3 circuits) |
| 4 | 278001014 | Female Terminal |
| 5 | 278001013 | Wire Seal |
| 6 | 515175567 | Female terminal |
| 9 | 278001014 | Female Terminal |
| 10 | 278001013 | Wire Seal |
| 12 | 409209500 | Female Housing, 2 Circuits |
| 13 | 278001014 | Female Terminal |
| 14 | 278001013 | Wire Seal |
| 15 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 16 | 420980486 | V-belt pulley |
| 17 | 420852414 | Starting pulley |
| 18 | 420845311 | Lock washer 8 mm |
| 20 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 21 | 278001473 | Liitin kotelo, uros |
| 22 | 278001474 | Kiila, uros liitinkoteloon |
| 24 | XXX | Not Available As Spare Parts |
| 25 | 278002198 | SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 26 | 420830962 | Ignition cable, l=690 mm |
| 27 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 28 | 293550004 | Tubing |
| 29 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 30 | 293550004 | Dielectric grease, 150g |
| 31 | 42618 | Male terminal housing (4 circu.1=10pc) - Call your local BRP dealership |
| 32 | 409209700 | Female Housing, 4 Circuits |
| 33 | 278001014 | Female Terminal |
| 34 | 278001013 | Wire Seal |
