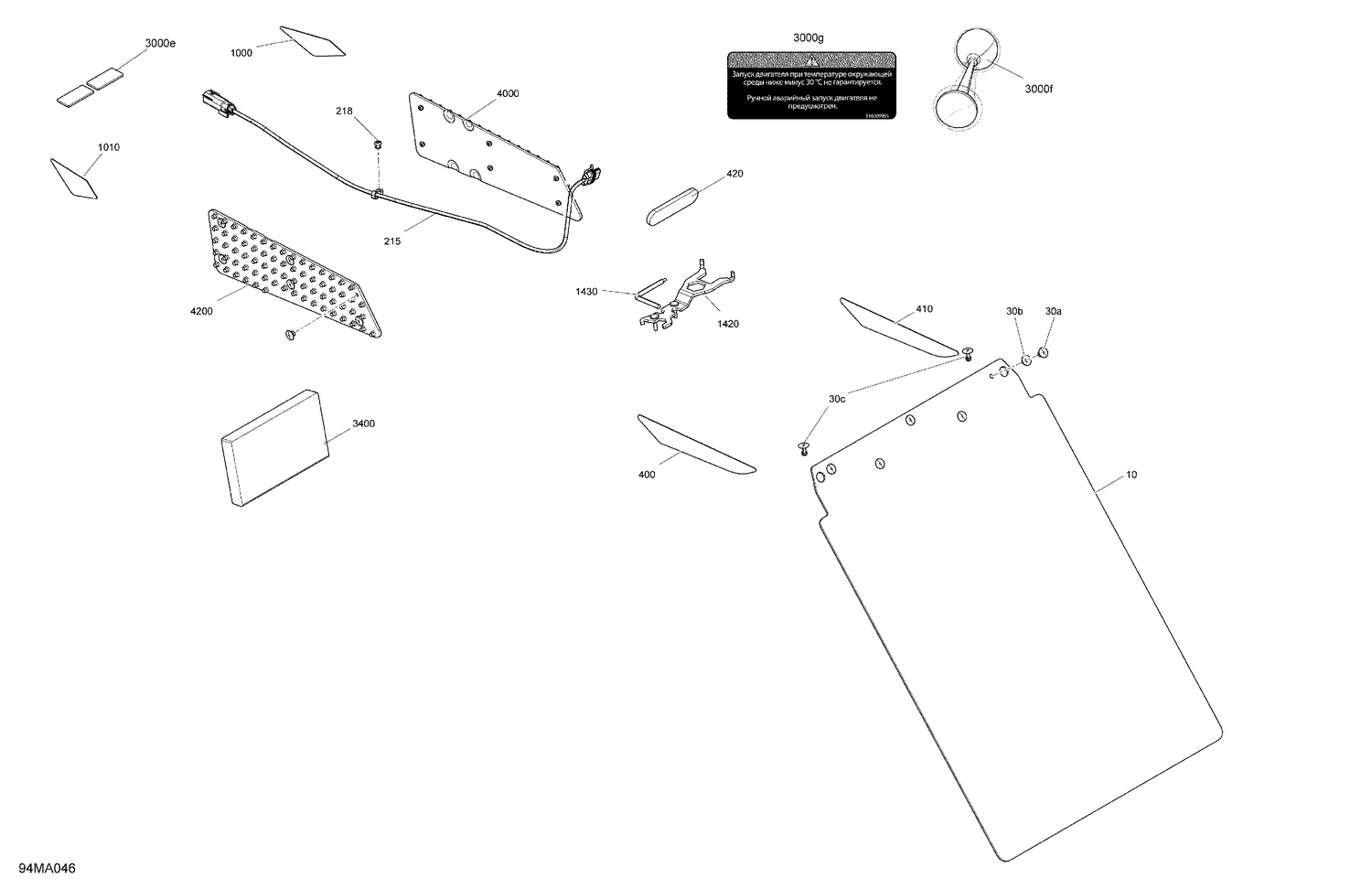

09- Miscellaneous - Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002213 | Snow Flap |
| 30a | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 30b | 517124300 | Washer |
| 30c | 293150100 | Pop Rivet 3/16" |
| 215 | 515178888 | Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 420 | 705015551 | Red, Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1420 | 520001499 | Wrench |
| 1430 | 417127579 | Belt Installation Tool |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 3400 | 520002348 | English Operator Guide |
| 4000 | 860200164 | Grip Plate Kit |
