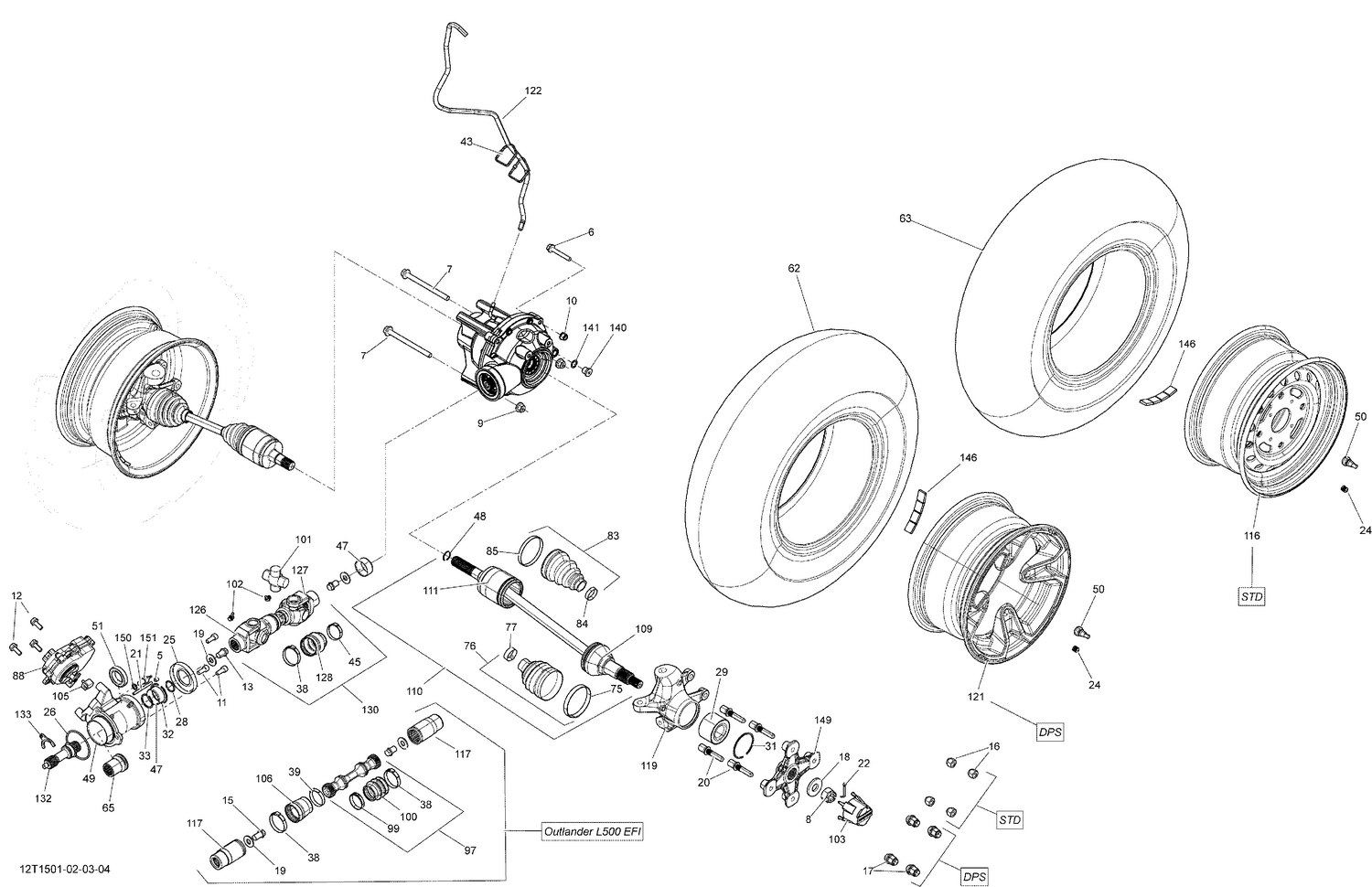

07- Drive System, Front _12T1504

07- Drive System, Front _12T1504

Parts (69)

RefPart NumberDescription
5 XXX Not Available As Spare Parts
6 207685544 Hex. Flange Screw M8 X 55
7 230602546 Hex. Flange Screw M10 X 125
8 232291413 Hex. Flange Castellated Nut M18 This part replaces 250100047.
9 233201436 Hex. Flange Elastic Nut M10
10 233281414 Hex. Flange Elastic Nut M8
11 XXX Not Available As Spare Parts
12 XXX Not Available As Spare Parts
13 XXX Not Available As Spare Parts
15 250001042 Hex Flange Screw M12 X 20 This part replaces 250000540.
18 250200171 Conical Spring Washer M18 This part replaces 250200049.
19 250200014 Flat Washer M10
21 XXX Not Available As Spare Parts
22 250400036 Cotter Pin
24 293000110 Valve Cap
25 XXX Not Available As Spare Parts
26 XXX Not Available As Spare Parts
28 XXX Not Available As Spare Parts
29 293350150 Ball Bearing This part replaces 293350040.
31 293370019 Circlip
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
38 293650138 Oetiker Gear Clamp 44.0MM
39 293650199 Oetiker Gear Clamp
43 414115200 Tie-Rap 180 mm
45 509000529 Oetiker Gear Clamp, 36.5-706R
47 705400036 Wear Ring
48 705401349 Circlip Joint
49 XXX Not Available As Spare Parts
50 705400193 Rim Valve With Cap
51 XXX Not Available As Spare Parts
62 705402890 Tire 205 X 80 R12 This part replaces 705401625.
63 705402890 Tire 205 X 80 R12 This part replaces 705401625.
65 XXX Not Available As Spare Parts
75 Not Available As Spare Part - Oetiker Clamp, Large
76 715900298 CV Boot Kit, Wheel Side
77 Not Available As Spare Part - Oetiker Clamp, Small
83 715900299 CV Boot Kit, Differential Side
84 Not Available As Spare Part - Oetiker Clamp, Small
85 Not Available As Spare Part - Oetiker Clamp, Large
88 XXX Not Available As Spare Parts
97 705400913 Propeller Shaft
99 509000045 Oetiker Gear Clamp 36.1MM
100 715900118 Rubber Boot
101 703500845 Universal Joint Kit
102 715900295 Grease Fitting
103 705400928 Wheel Cap
105 XXX Not Available As Spare Parts
106 705401093 Rubber Boot
109 715900297 CV Joint
110 705401428 RH Front - Premium CV Axle
110 705401429 LH Front - Premium CV Axle
111 715900300 RH Plunging CV Joint
111 715900301 LH Plunging CV Joint
116 705401199 Black,12" X 6 Rim
117 703500678 Front Bushing Shaft Kit
119 705403307 LH Knuckle This part replaces 705401290.
119 705403308 RH Knuckle This part replaces 705401291.
122 219704410 Polyurethane Hose 10000Mm Long
126 715900293 YOKE JOINT - Call your local BRP dealership
127 715900116 Fixed Yoke Joint
128 715900118 Rubber Boot
130 XXX Not Available As Spare Parts
132 XXX Not Available As Spare Parts
133 XXX Not Available As Spare Parts
140 705500504 Fill Level Plug
141 705500506 Copper Washer
149 705501716 Wheel Hub Ass'y
150 XXX Not Available As Spare Parts
