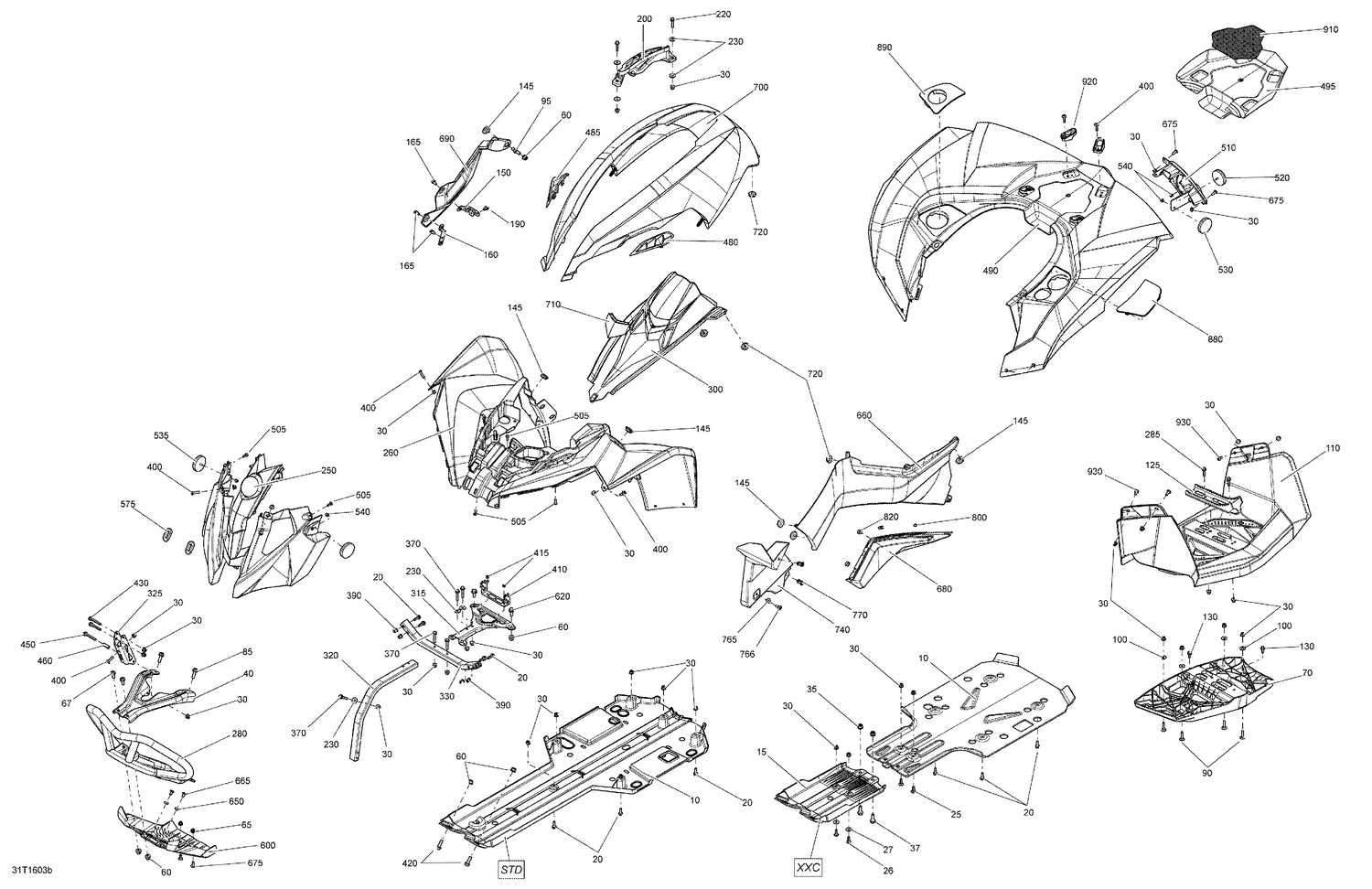

09- Body and Accessories
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 14a | 232862412 | Square Nut M6 |
| 15a | 232862412 | Square Nut M6 |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 40 | 705003505 | Bumper Support |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 65 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 67 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 70 | 705004176 | LH Footboard |
| 70 | 705004177 | RH Footboard |
| 85 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 90 | 207763044 | Carriage Bolt M6 X 30 |
| 95 | 250300039 | Ball Head Stud |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705004729 | RH Footboard/Fender |
| 110 | 705004730 | LH Footboard/Fender |
| 125 | 705002326 | Footrest |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 145 | 705000321 | Oval Washer |
| 150 | 705011461 | Engine Cover Support This part replaces 705002667. |
| 160 | 705003646 | Engine Cover Support |
| 165 | 210261250 | Hex. Flange Screw M6 X 12 |
| 190 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705003948 | Front Facia |
| 280 | 705011635 | Front Bumper This part replaces 705004993. |
| 285 | 207662554 | Hex. Flange Screw M6 X 25 |
| 300 | 705003556 | Dashboard |
| 315 | 705003599 | Bracket |
| 320 | 705016643 | Front Sectinal Bent Tube This part replaces 705003511. |
| 325 | 705002282 | Support |
| 330 | 705016093 | Bent Sectional Tube This part replaces 705003510. |
| 370 | 207663544 | Hex. Flange Screw M6 X 35 |
| 390 | 293450275 | Insert |
| 400 | 250000284 | Torx Screw M6 x 25 |
| 410 | 710002482 | Fuse Holder |
| 415 | 390402400 | Pop Rivet 3/16" |
| 420 | 207682534 | Hex. Flange Screw M8 X 25 |
| 430 | 207664544 | Hex. Flange Screw M6 X 45 |
| 450 | 207665044 | Hex. Flange Screw M6 X 50 |
| 460 | 705005809 | Spacer |
| 480 | 705008137 | LH Grille |
| 485 | 705008138 | RH Grille |
| 495 | 705005840 | Reflective Sheet |
| 505 | 250000720 | Torx Screw K50 X 16 |
| 575 | 705003668 | Oblong Grommet |
| 600 | 705004850 | Front Bumper Plate |
| 620 | 207682044 | Hex. Flange Screw M8 X 20 |
| 650 | 232862412 | Square Nut M6 |
| 665 | 250000454 | Torx Screw M6 X 12 |
| 675 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 680 | 705004988 | Panel Extension |
| 690 | 705004966 | Engine Cover |
| 720 | 705003264 | Grommet |
| 740 | 705004307 | LH INNER FENDER - Call your local BRP dealership |
| 740 | 705004308 | RH INNER FENDER - Call your local BRP dealership |
| 765 | 234062670 | Stainless Steel Flat Washer |
| 766 | 250000722 | Torx Screw M6 X 20 |
| 770 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 800 | 414479100 | Clip |
| 820 | 293830005 | Rubber Bumper |
| 880 | 705017923 | LH Rear Body Panel Cap This part replaces 705001910. |
| 890 | 705017924 | RH Rear Body Panel Cap This part replaces 705002420. |
| 910 | 705002343 | Rear Carpet |
| 920 | 705017925 | Hook This part replaces 705002342. |
