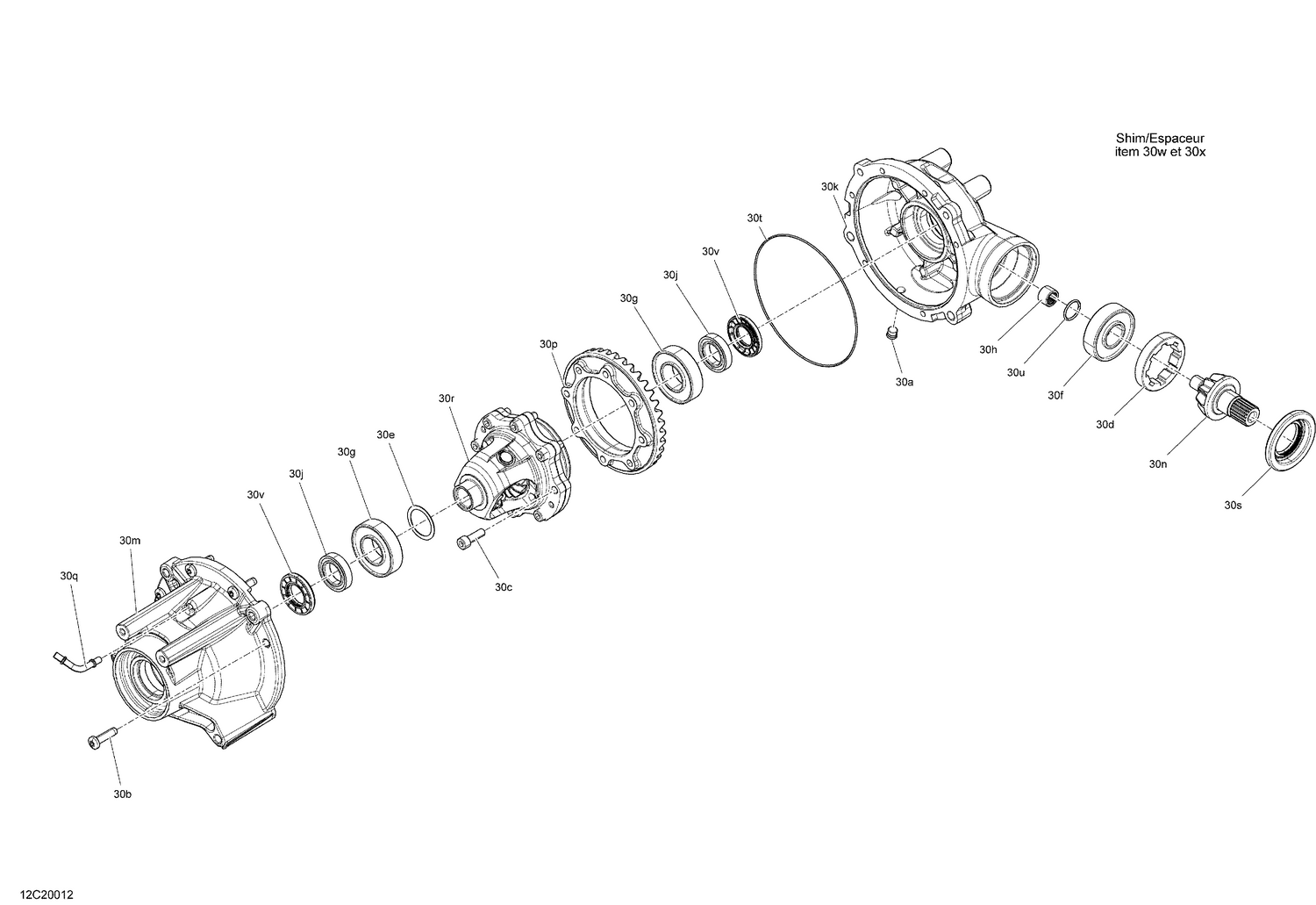

07- Front Drive - Differential Parts
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501885 | Drain Plug |
| 30b | 705401601 | Screw |
| 30c | 705401602 | Screw |
| 30d | 705401603 | Nut |
| 30e | 705401604 | Shim |
| 30f | 705401605 | Ball Bearing |
| 30g | 705401606 | Ball Bearing |
| 30h | 705402848 | Ball Bearing This part replaces 705401607. |
| 30j | 705401608 | Ball Bearing |
| 30k | 705401792 | Front Pinion Cover |
| 30m | 705401610 | Front Cover |
| 30n | 705402841 | Pinion 10 Teeth This part replaces 705401791. |
| 30p | 705401612 | Gear 36 Teeth |
| 30q | 705401613 | Vent Valve |
| 30r | 705402182 | Differential |
| 30s | 705401615 | Oil Seal |
| 30t | 705401616 | Seal |
| 30u | 705401617 | O'Ring |
| 30v | 705401618 | Gasket |
