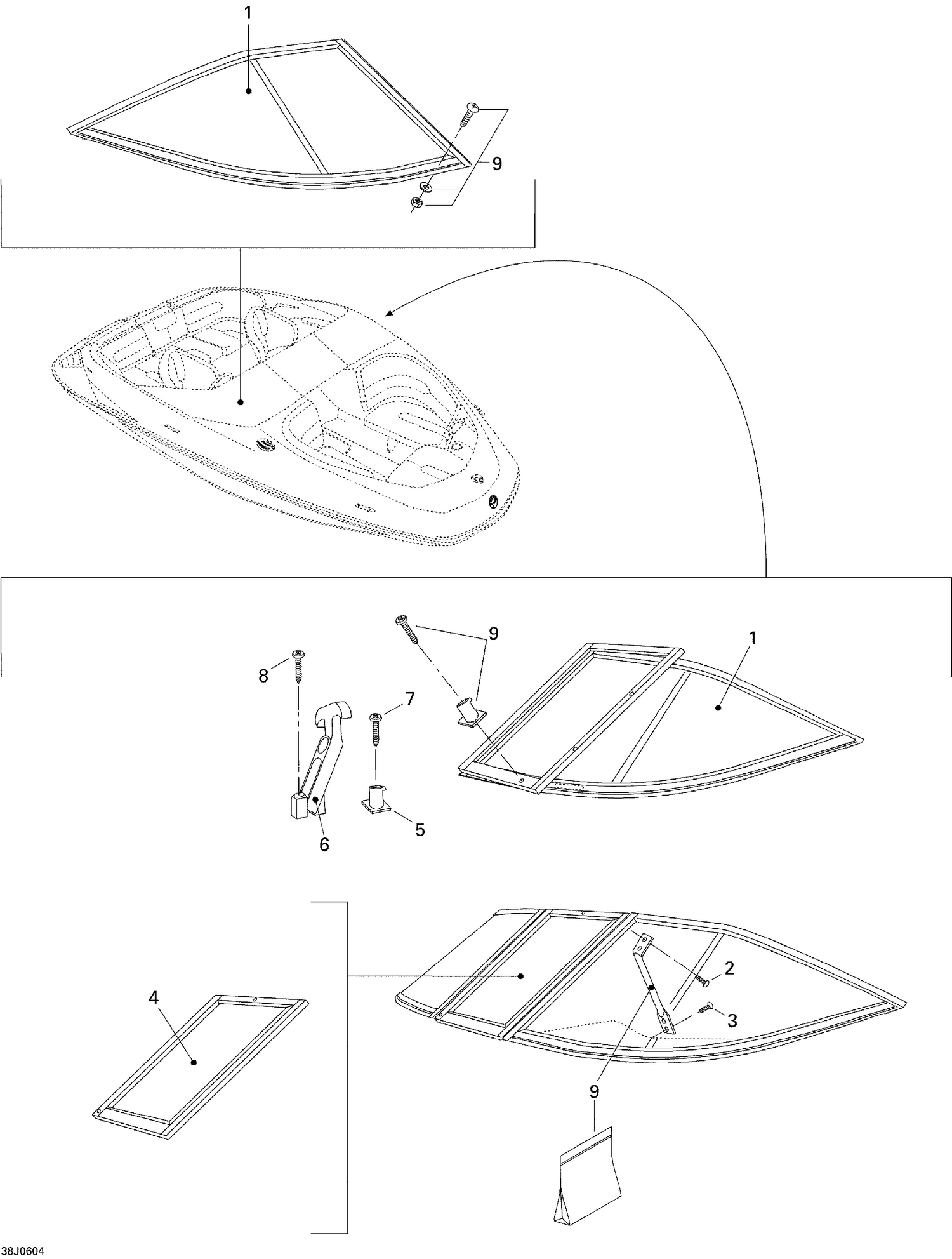

| Ref | Part Number | Description |
|---|
| 1 |
204072448 |
Side Windshield Ass'y, Port Side |
| 1 |
204072449 |
Side Windshield Ass'y, Starboard |
| 2 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Screw |
| 4 |
204072450 |
Windshield Center Door Ass'y |
| 5 |
204071376 |
STRAP KEEPER - Call your local BRP dealership |
| 6 |
204071291 |
DOOR STRAP - Call your local BRP dealership |
| 7 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 8 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
