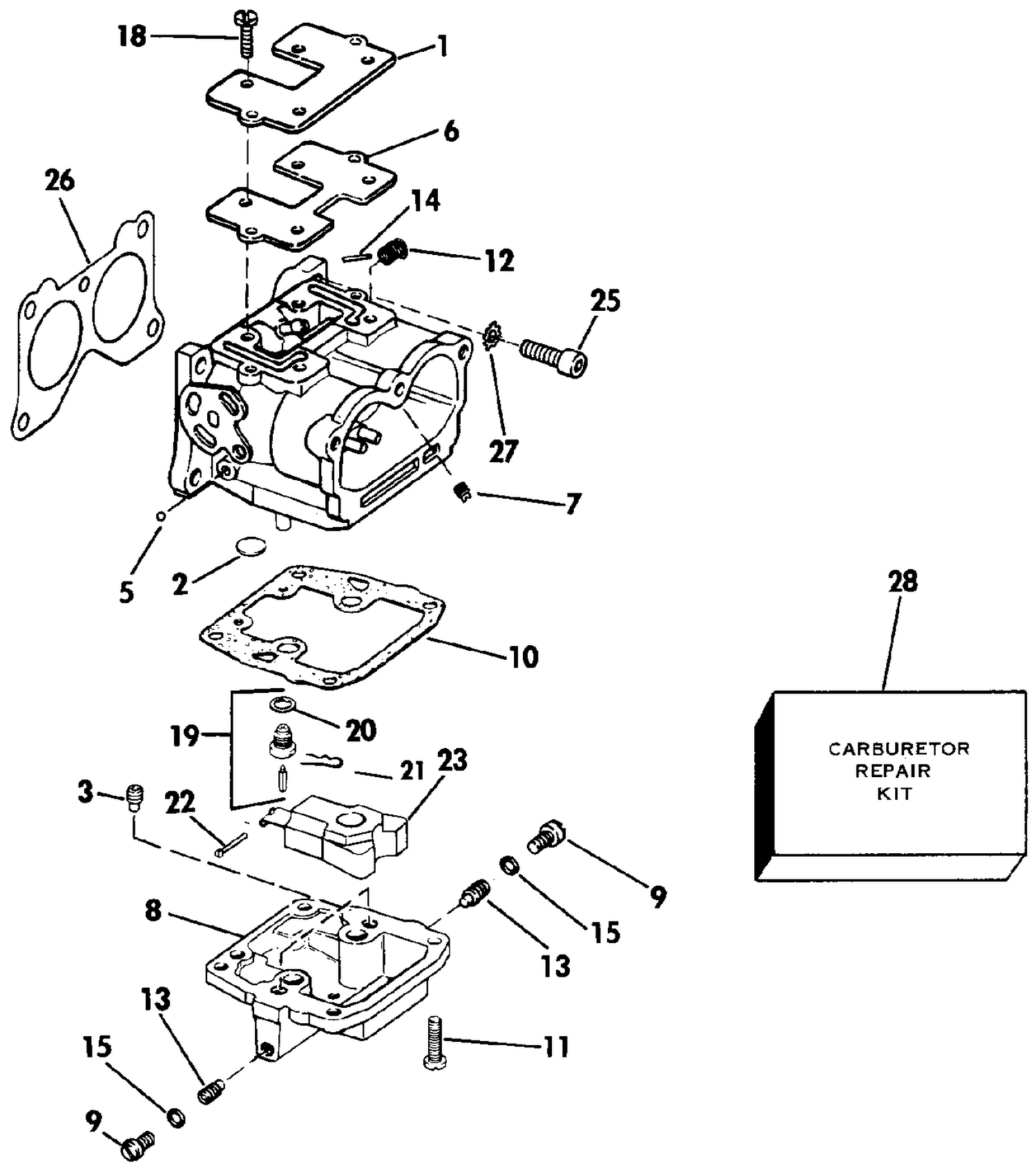

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel |
| 3 |
0333459 |
ORIFICE, #25C, 110 models |
| 6 |
0334353 |
GASKET, Cover |
| 8 |
0398544 |
FLOAT CHAMBER ASSY. |
| 10 |
0338884 |
GASKET, Float bowl This part replaces 0333418. |
| 13 |
0317183 |
ORIFICE PLUG |
| 13 |
0321449 |
ORIFICE PLUG 175 ONLY, No. 60c |
| 18 |
0333750 |
SCREW, Cover |
| 21 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 23 |
0383437 |
FLOAT ASSEMBLY |
| 25 |
0203023 |
SCREW, Bracket to upper carb. |
| 26 |
0327707 |
GASKET, Air silencer |
| 0432122 |
0432122 |
CARB. ASSY., 110 models |
| 0432125 |
0432125 |
CARB ASSY., 100STL models |
| 0432126 |
0432126 |
CARB ASSY., 88/90 models |
