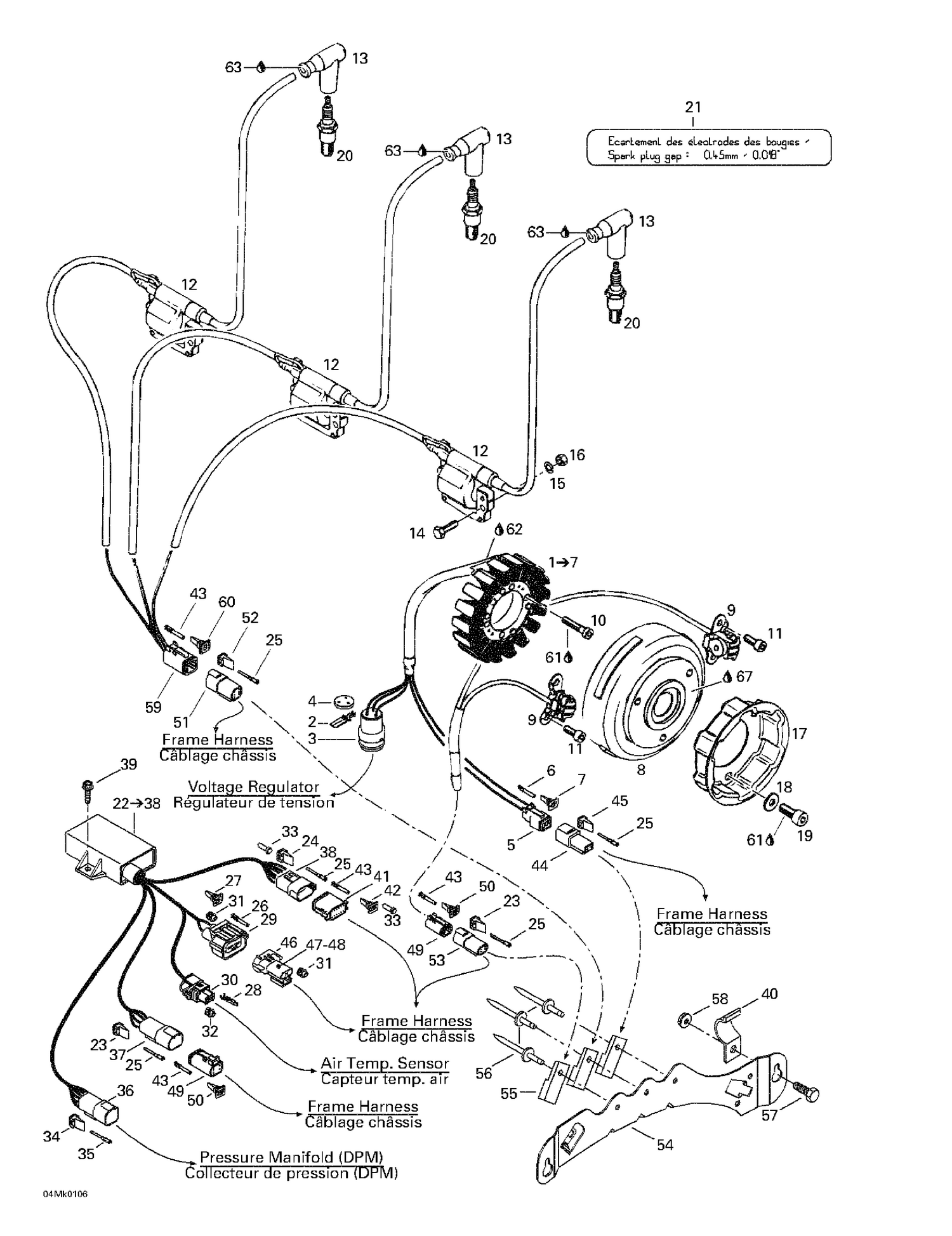

03- Magneto 12V 360W

03- Magneto 12V 360W

Parts (59)

RefPart NumberDescription
2 409011900 FEMALE TERMINAL - Call your local BRP dealership
3 409208200 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
4 409208500 SEAL - Call your local BRP dealership
5 515175245 Female Terminal Housing (4 circuits)
6 409015100 FEMALE TERMINAL - Call your local BRP dealership
7 515175246 Female Lock (4 circuits)
8 410922908 Flywheel
9 410922909 Pick Up Ass'y
10 420840887 SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
11 420840391 Allen Screw M6 X 14
13 278000237 SPARK PLUG CAP - Call your local BRP dealership
14 207162044 Hex. Screw M6 X 20
15 420945751 WASHER-LOCK DIN.128 - Call your local BRP dealership
16 232061414 Hex. Nut M6
17 420852418 Starting Pulley
18 420827405 Flat Washer
19 420841520 Socket Head Screw M8 X 12
20 219703119 NGK Spark Plug BR8ES This part replaces 278000609.
21 516000986 Spark Plug Decal
23 278000636 Female Wedge, 4 Circuits
24 Not Available As Spare Part - Male Terminal Housing (12 Circuits)
25 278000631 Male Terminal
26 409011700 FEMALE TERMINAL - Call your local BRP dealership
27 Not Available As Spare Part - Female Lock (2 Circuits)
28 278000998 Female Terminal
29 409206500 Female Connector Housing (2 Circuits)
30 278001005 Male Housing, 2 Circuits
31 409208300 Seal
32 278000999 Wire Seal
33 293000052 Sealing Cap
34 409014600 Male Lock, 6 Circuits
35 409014800 MALE TERMINAL - Call your local BRP dealership
36 409015200 Male Terminal Housing, 6 Circuits
37 Not Available As Spare Part - Male Connector Housing (4 Circuits)
38 Not Available As Spare Part - Male Terminal Housing (12 Circuits)
39 243141630 Hex. Plastic Screw M4.8 X 16 This part replaces 243141640.
40 517274400 Bracket
41 Not Available As Spare Part - Female Terminal Housing (12 Circuits)
42 Not Available As Spare Part - Female Lock (12 Circuits)
43 278000632 Female Terminal
44 409206900 Male Housing, 2 Circuits
45 409207500 Male Lock, 2 Circuits
46 Not Available As Spare Part - Male Terminal Housing (2 Circuits)
47 Not Available As Spare Part - Male Lock (2 Circuits)
48 409010900 Male Terminal
49 278000739 Male Connector, 4 Circuits
50 278000738 Male Lock, 4 Circuits
51 278000137 Fuse Holder 8 Amp
52 278000735 Female Lock, 6 Circuits
53 278000635 Female Housing, 4 Circuits
54 515175148 Housing Support
55 270000141 Clip
56 Not Available As Spare Part - Pop Rivet
57 207151444 Hex. Screw M5 X 14
58 233251434 Flange Elastic Nut M5 This part replaces 233251414.
59 710001540 CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736.
60 278000737 MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
61 293800060 Loctite 243, 10 ml
62 296000309 Silicone Sealant 51388, 300 ml
