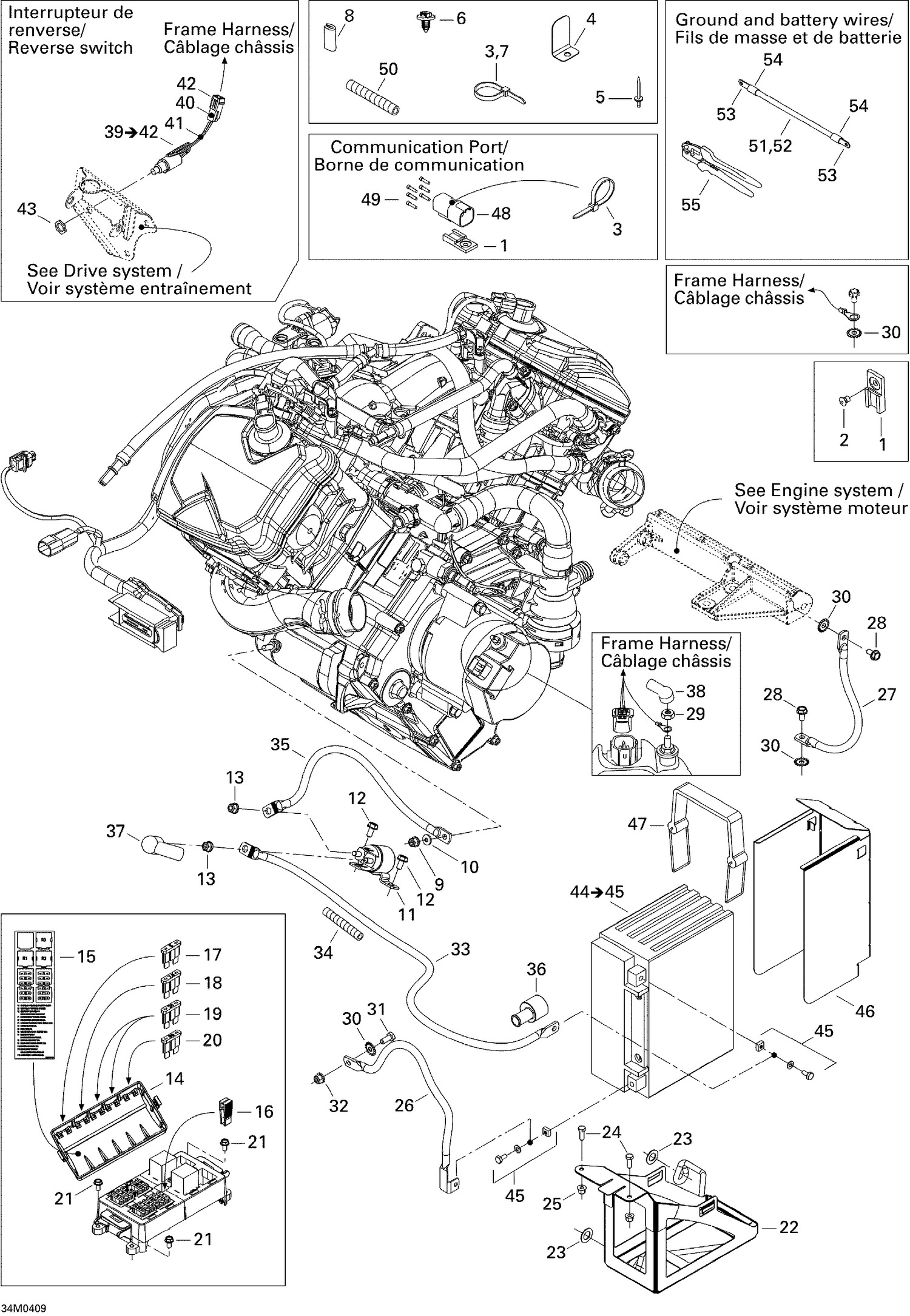

| Ref | Part Number | Description |
|---|
| 1 |
270000141 |
Clip This part replaces 515175917. |
| 2 |
293150037 |
Avdel Rivet 3/16" |
| 3 |
293750009 |
Tie-Rap 173 mm |
| 4 |
518322530 |
Tab Lock |
| 5 |
390402400 |
Pop Rivet 3/16" |
| 6 |
293730040 |
Mount Dart This part replaces 293730018. |
| 7 |
414115200 |
Tie-Rap 180 mm |
| 8 |
219704353 |
Was 271000110 Protection Trim |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
234061410 |
Flat Washer 6 mm |
| 11 |
515176011 |
Starter Relay |
| 12 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 13 |
232561414 |
Elastic Stop Nut M6 |
| 14 |
515176066 |
COVER - Call your local BRP dealership |
| 15 |
516001613 |
Fuse Decal |
| 16 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 17 |
278000344 |
Fuse, 5 Amperes |
| 18 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 19 |
409003900 |
Fuse, 20 Amperes |
| 20 |
410917200 |
Fuse, 30 Amperes |
| 21 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 22 |
515175954 |
Battery Support |
| 23 |
503175800 |
Washer |
| 24 |
207151444 |
Hex. Screw M5 X 14 |
| 25 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 26 |
Not |
Available As Spare Part - Ground Wire |
| 27 |
Not |
Available As Spare Part - Ground Wire |
| 28 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 30 |
250200041 |
Lock Washer Serrated M6 |
| 31 |
207161644 |
Hex. Screw M6 X 16 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
515175794 |
Battery Wire |
| 34 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 35 |
515175793 |
Battery Wire |
| 36 |
515175919 |
Protector Cap |
| 37 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 38 |
710000526 |
Protector Cap |
| 40 |
515175232 |
Male Terminal |
| 41 |
293740005 |
Tape |
| 42 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 43 |
250100012 |
BRASS NUT - Call your local BRP dealership |
| 45 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 46 |
515175616 |
DEFLECTOR - Call your local BRP dealership |
| 47 |
605356180 |
Battery Strap This part replaces 515175955. |
| 48 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 49 |
293000052 |
Sealing Cap |
| 51 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 52 |
278001690 |
Cable Battery, no 6, meter) |
| 53 |
278001682 |
Terminal 45°, Small Hole |
| 54 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
| 293750002 |
Tie |
Wrap 142 mm 293750002 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
