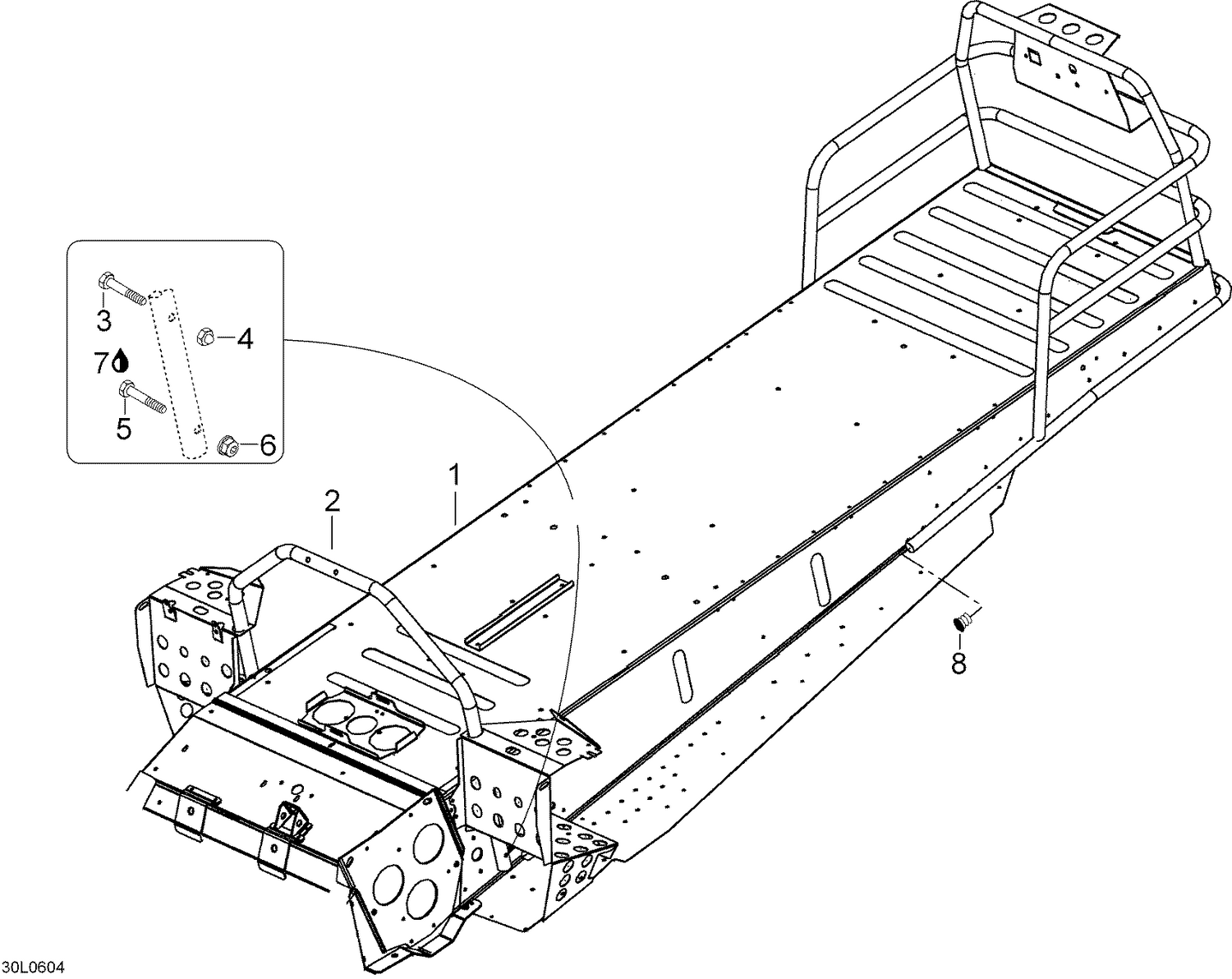

09- Frame — Parts Catalog

Ref	Part Number	Description
1	605153752	Chassis
2	605150258	HANDLE SUPPORT - Call your local BRP dealership
3	40032	Screw M6 x 30
4	33051	Nut M6
5	40002	Screw M6 x 40
6	233261414	Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
7	32028	Liima Loctite 243, 10ml
