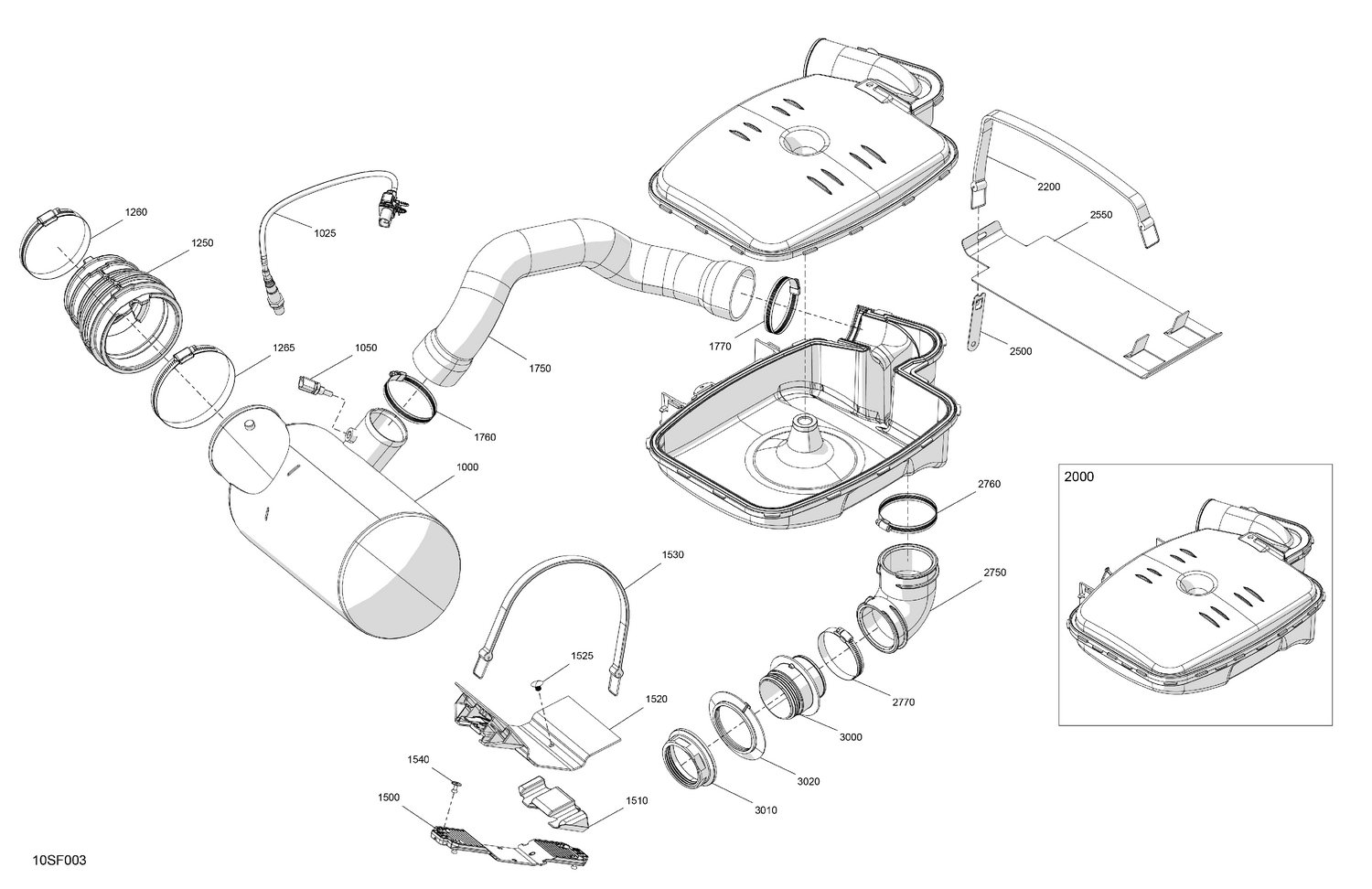

02- Engine - Exhaust
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 274001685 | Muffler |
| 1025 | 707602926 | Oxygen Sensor |
| 1050 | 278002895 | Temperature Sensor |
| 1250 | 274001755 | Boot |
| 1260 | 293650202 | Gear Clamp This part replaces 293650281. |
| 1265 | 293650310 | Gear Clamp |
| 1500 | 293450390 | Muffler Support |
| 1510 | 274001721 | Stopper |
| 1520 | 293830253 | Cut Insulating Pad |
| 1525 | 293730113 | Christmas Tree Anchorage |
| 1530 | 293850163 | Retaining Strap |
| 1540 | 293150186 | Pop Rivet 3/16 |
| 1750 | 274001709 | Front Exhaust Hose |
| 1760 | 293650244 | Tridon Gear Clamp |
| 1770 | 293650244 | Tridon Gear Clamp |
| 2000 | 274001751 | Resonator |
| 2200 | 293850163 | Retaining Strap |
| 2500 | 293850157 | Anchorage Strap |
| 2550 | 293830254 | Cut Insulating Pad |
| 2750 | 274001754 | Exhaust Hose |
| 2760 | 293650244 | Tridon Gear Clamp |
| 2770 | 293650244 | Tridon Gear Clamp |
| 3000 | 274001742 | Exhaust Fitting |
