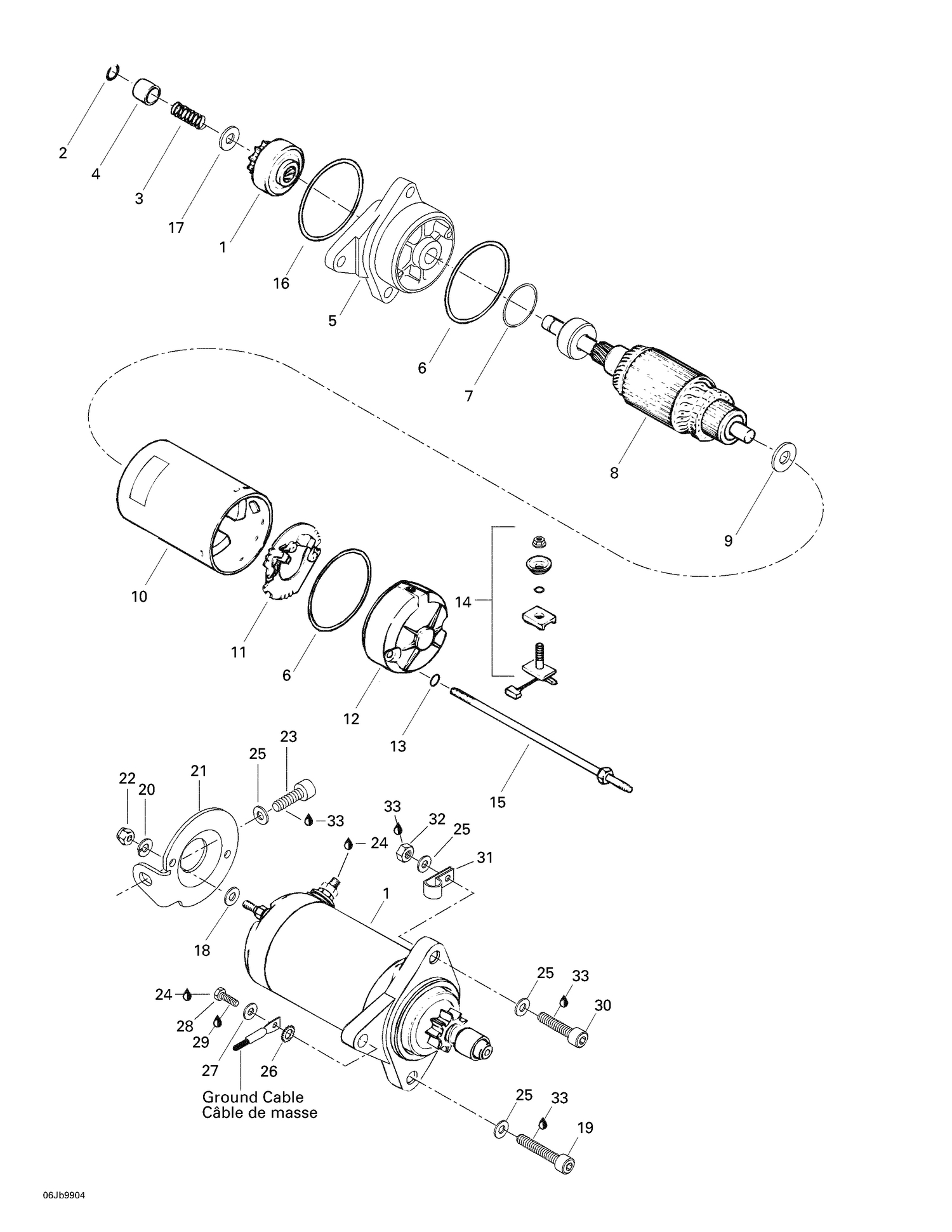

04- Starter
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 278001106 | STARTER CLUTCH ASS'Y - Call your local BRP dealership |
| 2 | 410207700 | SNAP RING - Call your local BRP dealership |
| 3 | 278000050 | Spring |
| 4 | 278000254 | Stopper Bushing |
| 5 | 278001107 | Housing Ass'y |
| 6 | 278000695 | O-Ring |
| 7 | 415129342 | O-Ring Kit This part replaces 278000696. |
| 8 | 278001108 | Armature |
| 9 | 278000056 | THRUST WASHER - Call your local BRP dealership |
| 10 | 278001109 | YOKE ASS'Y - Call your local BRP dealership |
| 11 | 278001296 | Brush Holder |
| 12 | 278001111 | Rear Cover |
| 13 | 278000060 | O-RING - Call your local BRP dealership |
| 14 | 278001298 | BRUSH STARTER KIT - Call your local BRP dealership |
| 15 | 278000170 | RETAINER STUD - Call your local BRP dealership |
| 16 | 278000694 | O-RING - Call your local BRP dealership |
| 17 | 278001105 | WASHER PLATE - Call your local BRP dealership |
| 18 | 234051600 | Flat Washer M5, Stainless |
| 19 | 205083060 | Socket Screw M8 X 30 |
| 20 | 234151601 | Helical Lock Washer M5 |
| 21 | 270000387 | Starter Support |
| 22 | 232051600 | Hex. Nut M5 |
| 23 | 205081660 | Socket Head Screw M8 X 16 |
| 24 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 25 | 234081600 | Stainless, Flat Washer 8 mm |
| 26 | 234381608 | TOOTHED LOCK WASHER - Call your local BRP dealership |
| 27 | 234081600 | Stainless, Flat Washer 8 mm |
| 28 | 207181660 | Hex. Screw M8 X 16 |
| 29 | 293800005 | Loctite 271, 10 ml |
| 30 | 205084560 | Socket Head Screw M8 X 45 |
| 31 | 293850018 | Clip |
| 32 | 232081600 | Hex. Nut M8 |
