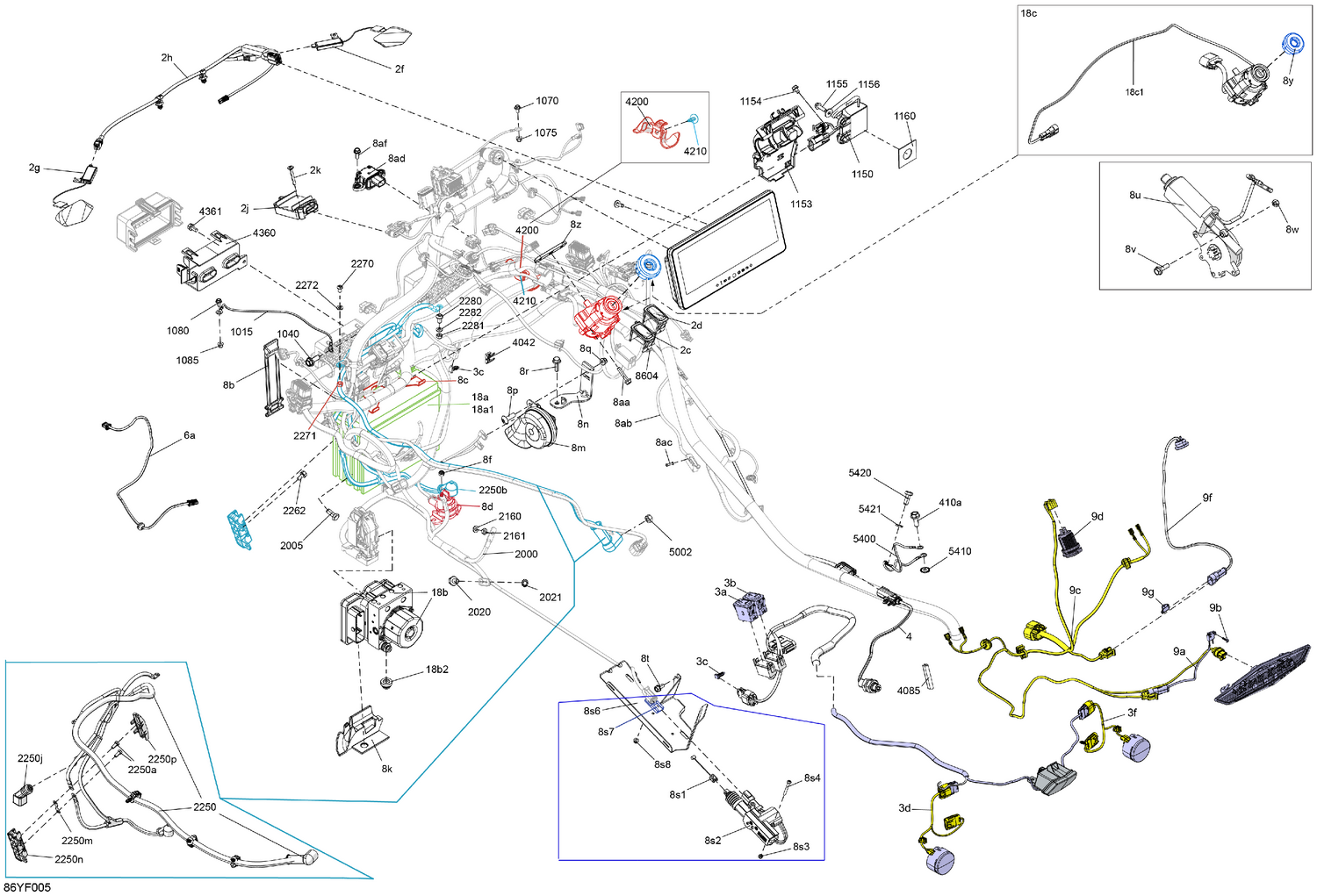

08- Electric - System - Built Before September 2025
Parts (93)
| Ref | Part Number | Description |
|---|---|---|
| 2c | 517306808 | Switch Hole Cap |
| 2f | 710010624 | Fm1 / Fm1 Dab Antenna |
| 2g | 710010625 | Fm2 Antenna |
| 2h | 710010432 | Phantom Box |
| 2j | 278004172 | External Module GPS |
| 2k | 250001111 | Torx Screw K50 X 35 |
| 3a | 710007706 | Heated Grip Switch |
| 3b | 710010674 | Switch_Heated Seat |
| 3c | 710002033 | Connector Holder |
| 3d | 710007142 | Tailight Harness |
| 3f | 710007142 | Tailight Harness |
| 4 | 710009604 | Brake Switch |
| 6a | 710009557 | Wiring Harness |
| 8aa | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 8ab | 710001379 | Brake Pressure Switch Ass'y |
| 8ac | 293150150 | Pop Rivet |
| 8ad | 710005658 | Yaw Rate Sensor |
| 8af | 210261650 | Hex. Flange Screw M6 X 16 |
| 8b | 520000528 | Latch |
| 8c | 710010843 | Battery Support |
| 8d | 278003012 | Starter Relay |
| 8f | 232561600 | Hex. Elastic Stop Nut M6 |
| 8k | 710003996 | VCM Harness Protector |
| 8m | 710004940 | Horn |
| 8n | 710005769 | Horn Support |
| 8p | 250000874 | Torx Truss M8 X 25 |
| 8q | 233281414 | Hex. Flange Elastic Nut M8 |
| 8r | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 8s1 | 710002889 | Reverse Cable |
| 8s2 | 710011269 | Actuator |
| 8s3 | 232541414 | Elastic Stop Nut M4 |
| 8s4 | 205444056 | Socket Head Screw M4 X 40 |
| 8s6 | 710010657 | Actuator Support |
| 8s7 | 270000141 | Clip |
| 8s8 | 293150293 | Pop Rivet 3/16 X ,425 |
| 8t | 210261650 | Hex. Flange Screw M6 X 16 |
| 8u | 710007256 | Actuator Motor |
| 8v | 207662054 | Hex. Flange Screw M6 X 20 |
| 8w | 232561434 | Elastic Stop Nut M6 |
| 8y | 710009167 | Switch Cover |
| 8z | 710001365 | Switch Support |
| 9a | 710005315 | Open Detection |
| 9b | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 |
| 9c | 710008257 | Upper Rear Box Wiring Harness |
| 9d | 219400510 | USB Outlet |
| 9f | 710001533 | Trunk Light |
| 9g | 409210100 | Clip Bracket Connector (edge) |
| 18a1 | 715500541 | Battery Bolt Kit |
| 18b2 | 710003279 | Shock Damper |
| 18c1 | 710010282 | Blank Ignition Key |
| 1015 | 710009889 | Antenna Ground Strap |
| 1040 | 207582046 | Hex Flange Screw M8 X 20 |
| 1070 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1075 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1080 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1085 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1150 | 710004916 | Dess Module |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062670 | Stainless Steel Flat Washer |
| 1160 | 293830091 | Rubber Bumper |
| 2000 | 710008074 | Pos Cable |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2250a | 207161444 | Hex. Screw M6 X 14 |
| 2250b | 710000393 | Protector Cap |
| 2250j | 710002945 | Battery Guard |
| 2250m | 710008102 | Fuse 80 A |
| 2250n | 710008098 | Fuse Holder Support |
| 2250p | 710008154 | Fuse Holder Cover |
| 2262 | 210261250 | Hex. Flange Screw M6 X 12 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 4042 | 710001222 | Lock |
| 4085 | 219704354 | Trim 1000Mm Long |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 5002 | 233081416 | Hex. Flange Nut M8 |
| 5400 | 710004849 | Tank Cable |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5420 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5421 | 250200111 | Washer |
| 8604 | 710002033 | Connector Holder |
