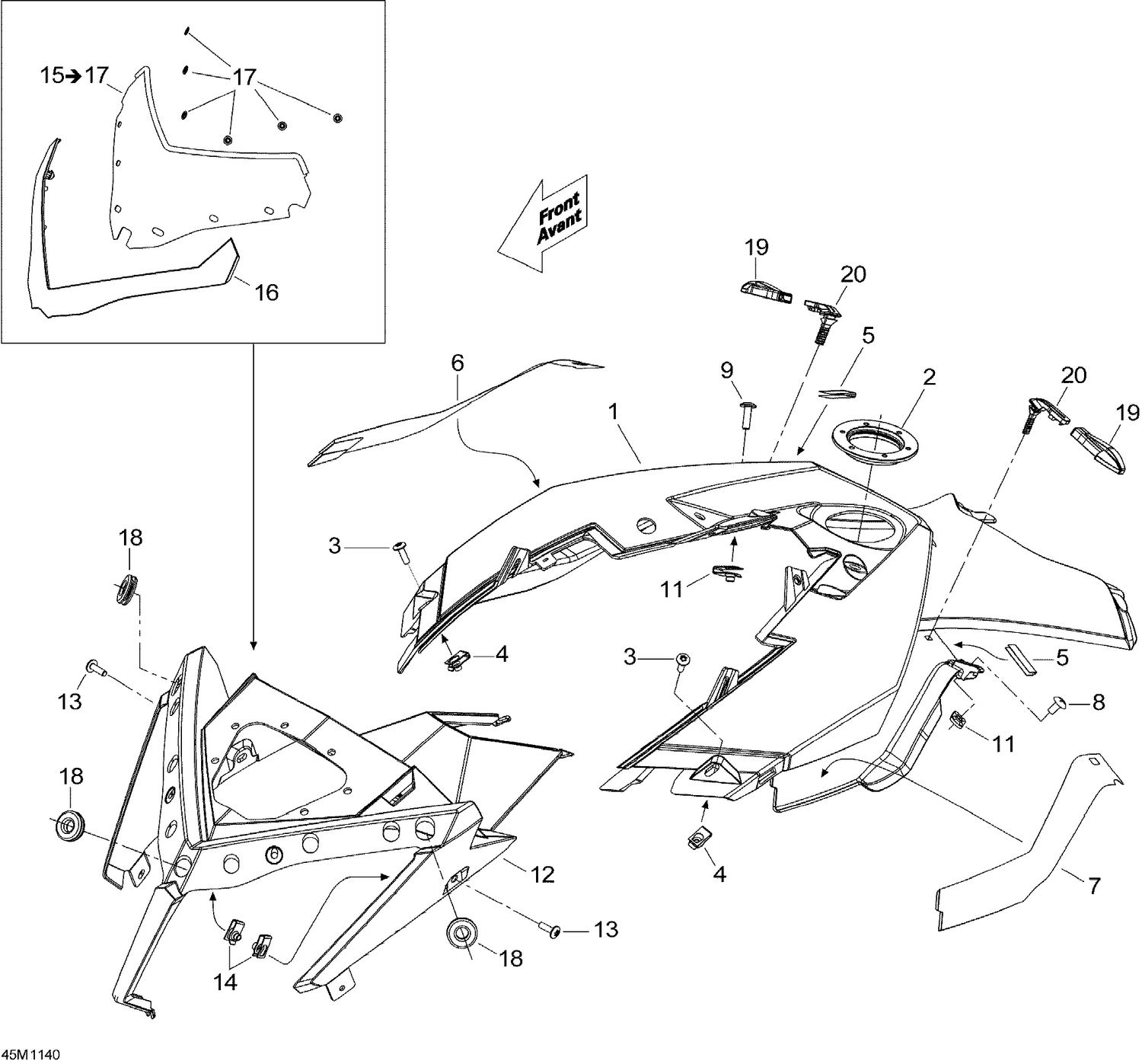

| Ref | Part Number | Description |
|---|
| 1 |
517304127 |
YELLOW CONSOLE - Call your local BRP dealership |
| 2 |
517304518 |
Console Nut |
| 3 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 4 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5 |
517304105 |
Console Decal |
| 6 |
517304103 |
RH Decal |
| 7 |
517304104 |
LH Decal |
| 8 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 9 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 11 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 12 |
517304699 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 13 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 14 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 16 |
860200089 |
Windshield Support Kit |
| 17 |
732610072 |
Push Nut |
| 18 |
517303756 |
Grommet |
| 19 |
860200239 |
Black Latch Kit |
