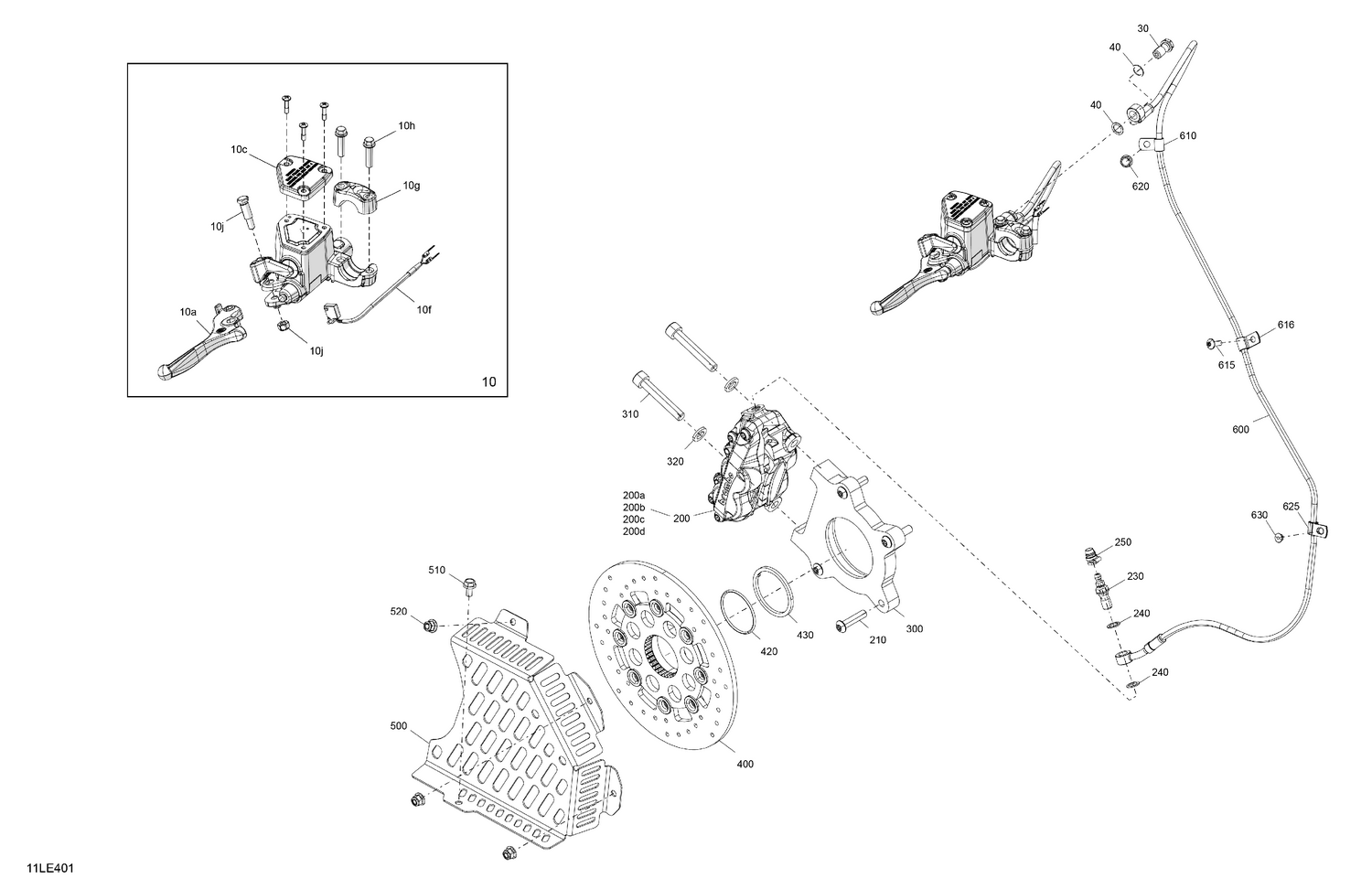

03- Mechanic - Brakes
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 507032739 | Parking Brake Lever |
| 10c | 507032737 | Reservoir Cover Kit |
| 10f | 507032738 | Micro Switch |
| 10g | 507032761 | Mounting Clamp |
| 10h | 229000652 | Hex Flanged Screw M6 X 25 |
| 10j | 415030000 | Pin Ass'y |
| 30 | 507032551 | Banjo Bolt |
| 40 | 414920600 | Washer For Hose Connection |
| 200a | 507032615 | Brake Pads Kit |
| 200b | 507032616 | Pin & Spring Kit |
| 200c | 507032617 | Spring Plate |
| 200d | 507032618 | Spring Clips |
| 210 | 250000971 | Screw-torx Button Head M8 X 35 |
| 230 | 705601201 | Banjo Bolt/ Bleeder |
| 240 | 414920600 | Washer For Hose Connection |
| 250 | 705601190 | Bleeder Bolt Cap |
| 300 | 507032733 | Brake Caliper Support |
| 310 | 205506044 | Screw Socket S,Grip M10 X 60 |
| 320 | 503192496 | Washer |
| 400 | 507032740 | Disc Brake Ass'y |
| 420 | 293300221 | O Ring |
| 430 | 507032711 | Spacer |
| 500 | 507032749 | Disc Brake Guard Kit |
| 510 | 207661254 | Hex. Flange Screw M6 X 12 |
| 520 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 600 | 507032661 | Brake Hose |
| 610 | 414108400 | Open Clamp |
| 615 | 250000742 | Torx Screw M5 X 14 |
| 616 | 293650257 | Hose Clamp |
| 620 | 210261040 | Hex. Flanged Forming Screw M6 X 10 |
| 625 | 293650257 | Hose Clamp |
