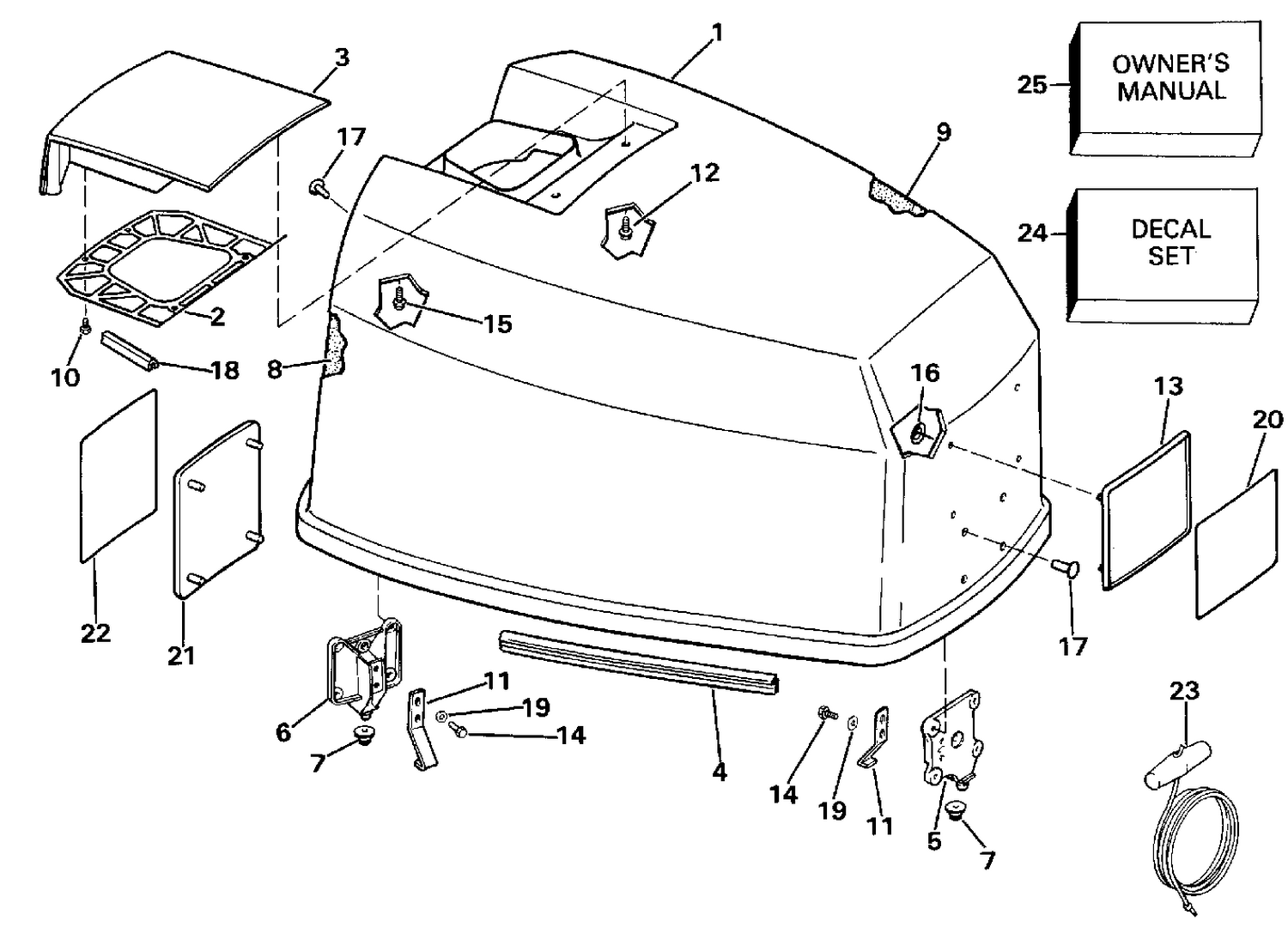

ENGINE COVER - JOHNSON
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0422462 | ENGINE COVER ASSY., 140 |
| 1 | 0432461 | ENGINE COVER ASSY., 140 |
| 1 | 0432465 | ENGINE COVER ASSY., 120 |
| 1 | 0432575 | ENGINE COVER ASSY., 120 |
| 1 | 0432576 | ENGINE COVER ASSY., 140 |
| 5 | 0329762 | LOCATING BRACKET, Front |
| 6 | 0394976 | LOCATING BRACKET, Rear |
| 13 | 0331006 | APPLIQUE, Front |
| 13 | 0331576 | APPLIQUE, Engine cover, rear |
| 20 | 0334559 | PLATE, Applique, front |
| 20 | 0334561 | PLATE, Applique, front |
| 21 | 0331576 | APPLIQUE, Engine cover, rear |
| 22 | 0334560 | PLATE, Rear, 140 |
| 22 | 0334562 | PLATE, Rear, 140 |
| 22 | 0334566 | PLATE, Rear, 120 |
| 23 | 0378347 | CORDE DE LANCEUR |
| 24 | 0433150 | DECAL SET |
| 24 | 0433151 | DECAL SET, 120 |
| 25 | 0432383 | OWNER'S MANUAL |
| 25 | 0433163 | OWNER'S MANUAL |
| 25 | 0433164 | OWNER'S MANUAL |
