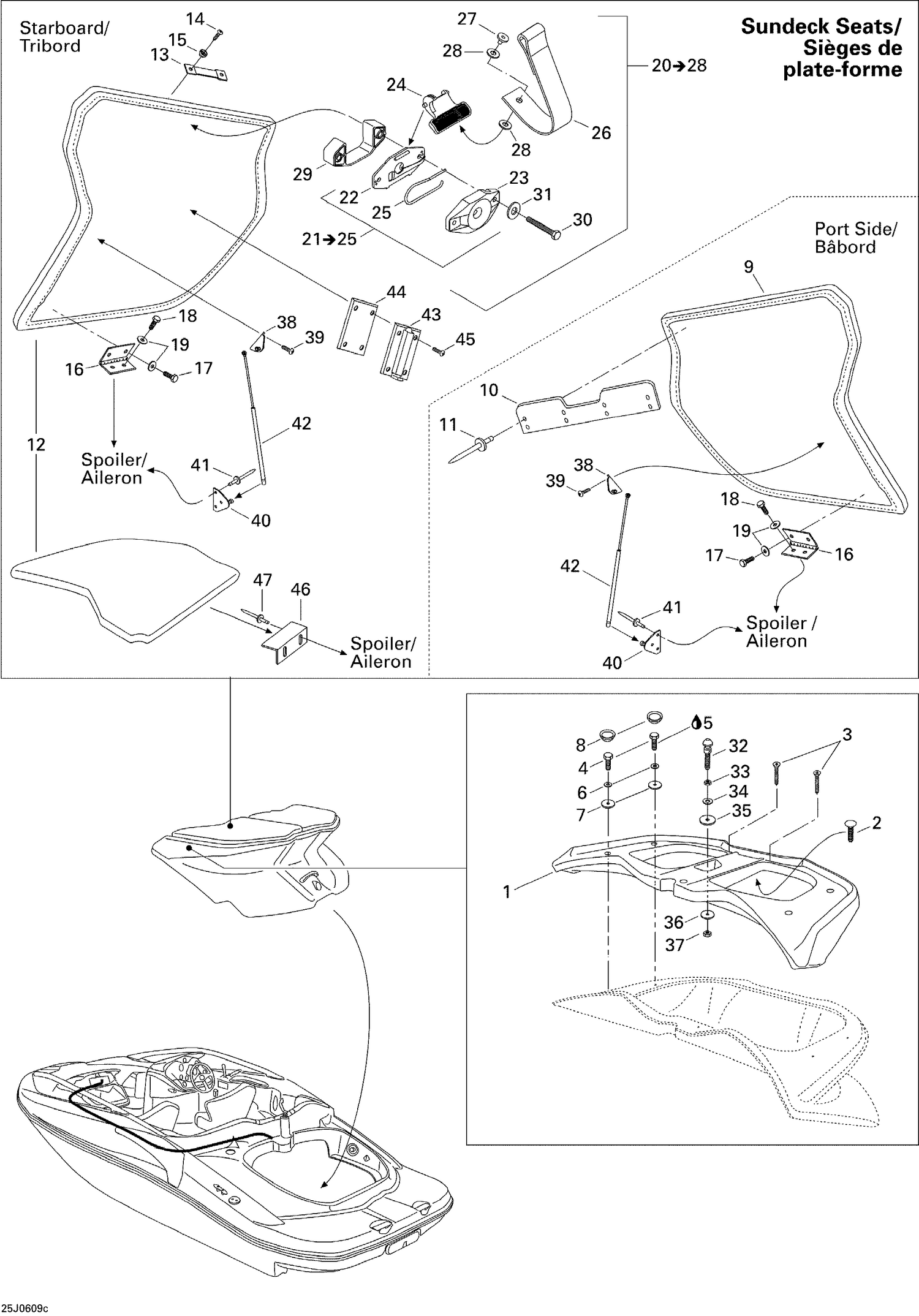

| Ref | Part Number | Description |
|---|
| 1 |
204613003 |
Spoiler |
| 2 |
293730021 |
Dart |
| 3 |
204100164 |
PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership |
| 4 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
234002600 |
Flat Washer 10 mm, Stainless |
| 8 |
204130065 |
PLUG 1-1/2, BLACK - Call your local BRP dealership |
| 10 |
204612684 |
Retainer Plate |
| 11 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 13 |
204612685 |
Loop |
| 14 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 15 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 16 |
204612769 |
SUNDECK HINGE - Call your local BRP dealership |
| 17 |
204100134 |
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership |
| 18 |
204100137 |
TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership |
| 19 |
234061600 |
Stainless Flat Washer M6 |
| 22 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 23 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 24 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 25 |
269700017 |
Latch Spring |
| 26 |
204612642 |
Strap |
| 27 |
293150039 |
Pop Rivet 3/16" |
| 28 |
234052600 |
Flat Washer 5 mm, Stainless |
| 29 |
269700015 |
SHIM - Call your local BRP dealership |
| 30 |
204100141 |
HEX. BOLT TAPPING - Call your local BRP dealership |
| 31 |
234061600 |
Stainless Flat Washer M6 |
| 32 |
291000689 |
LATCH STUD - Call your local BRP dealership |
| 33 |
232100600 |
Hex. Jam Nut M10 |
| 34 |
234002600 |
Flat Washer 10 mm, Stainless |
| 35 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 36 |
234002600 |
Flat Washer 10 mm, Stainless |
| 37 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 38 |
204073074 |
Shock Bracket This part replaces 204071700. |
| 39 |
204100073 |
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 40 |
204071673 |
Shock Bracket |
| 41 |
293150039 |
Pop Rivet 3/16" |
| 42 |
204071874 |
GAS SHOCK - Call your local BRP dealership |
| 43 |
204612641 |
SLIDE LATCH - Call your local BRP dealership |
| 44 |
204612664 |
LATCH SHIM - Call your local BRP dealership |
| 45 |
204100082 |
TAPPING SCREW - Call your local BRP dealership |
| 46 |
204070060 |
KEEPER - Call your local BRP dealership |
