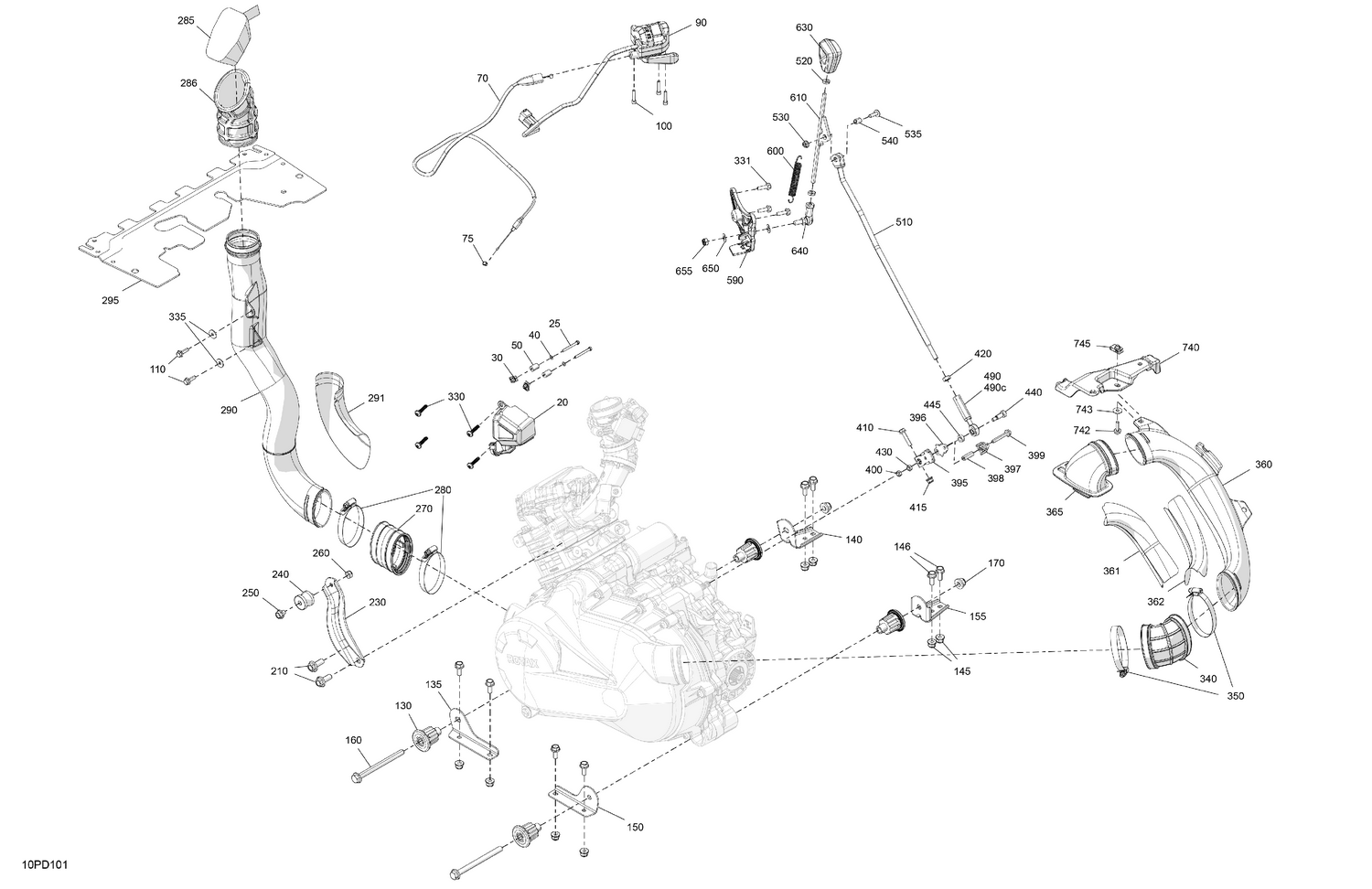

02- Engine - System
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 707000945 | Cover |
| 25 | 207144044 | Hex. Cap Screw |
| 30 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 40 | 234040600 | Flat Washer 4 mm |
| 50 | 293900117 | Bushing |
| 70 | 707000955 | Throttle Cable |
| 75 | 707000434 | Cable Guide |
| 90 | 707003188 | Hand Lever Accelerator |
| 100 | 205052588 | Socket Head Screw M5 X 25 |
| 110 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 130 | 707001169 | Vibration Damper |
| 135 | 707003321 | LH Front Engine Support |
| 140 | 707003323 | RH Front Engine Support |
| 145 | 233281416 | Hex. Elastic Flange Nut M8 |
| 146 | 207682046 | Hex. Flange Screw M8 X 20 |
| 150 | 707003327 | LH Rear Engine Support |
| 155 | 707003320 | RH Rear Engine Support |
| 160 | 230602546 | Hex. Flange Screw M10 X 125 |
| 170 | 233201436 | Hex. Flange Elastic Nut M10 |
| 210 | 207602544 | Hex. Flange Screw M10 X 25 |
| 230 | 707003322 | Upper Engine Support |
| 240 | 707000949 | Rubber Isolator |
| 250 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 260 | 232581414 | Hex. Elastic Stop Nut M8 |
| 270 | 707002585 | Flexibale Adaptor |
| 280 | 293650091 | Norma Clamp |
| 285 | 707001786 | CVT Filter |
| 286 | 707001864 | CVT Inlet |
| 290 | 707002289 | CVT Air Inlet |
| 291 | 707001638 | Heat Shield |
| 295 | 707001124 | Upper Water Deflector |
| 330 | 250000949 | Screw PT K60 X 30 |
| 331 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 335 | 234062600 | Flat Washer M6, Stainless |
| 340 | 707001425 | CVT Air Outlet Adaptor |
| 350 | 293650091 | Norma Clamp |
| 360 | 707001413 | CVT Air Outlet |
| 361 | 707001639 | Heat Shield |
| 362 | 707001641 | Heat Shield |
| 365 | 706600400 | CVT Cooling Duct Out |
| 395 | 707000503 | Lever |
| 396 | 707000507 | Pivot Plate |
| 397 | 707000310 | Spring |
| 398 | 293900079 | Bushing |
| 399 | 207664044 | Hex. Flange Screw M6 X 40 |
| 400 | 232561434 | Elastic Stop Nut M6 |
| 410 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 415 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 250100144 | Hex. Nut M8, LH Threads |
| 430 | 232561434 | Elastic Stop Nut M6 |
| 440 | 250000669 | Socket Head Screw M8 X 16 |
| 445 | 293900028 | Bushing |
| 490c | 232180600 | Hex. Jam Nut M8 |
| 510 | 707002382 | Shifter Rod |
| 520 | 232180600 | Hex. Jam Nut M8 |
| 530 | 233161414 | Hex. Flange Nut M6 |
| 535 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 540 | 293900019 | Bushing |
| 590 | 707003054 | Lever Support |
| 600 | 707000577 | Spring |
| 610 | 707000840 | Shift Arm |
| 630 | 707003211 | Lever Trim |
| 640 | 707001959 | RH Ball Joint |
| 650 | 506151252 | Washer |
| 655 | 232581414 | Hex. Elastic Stop Nut M8 |
| 740 | 707001262 | Air Outlet Support |
| 742 | 207662044 | Hex. Flange Screw M6 X 20 |
| 743 | 234062410 | Flat Washer 6 mm |
| 745 | 250100198 | Panel Nut M6 X 1.0 |
