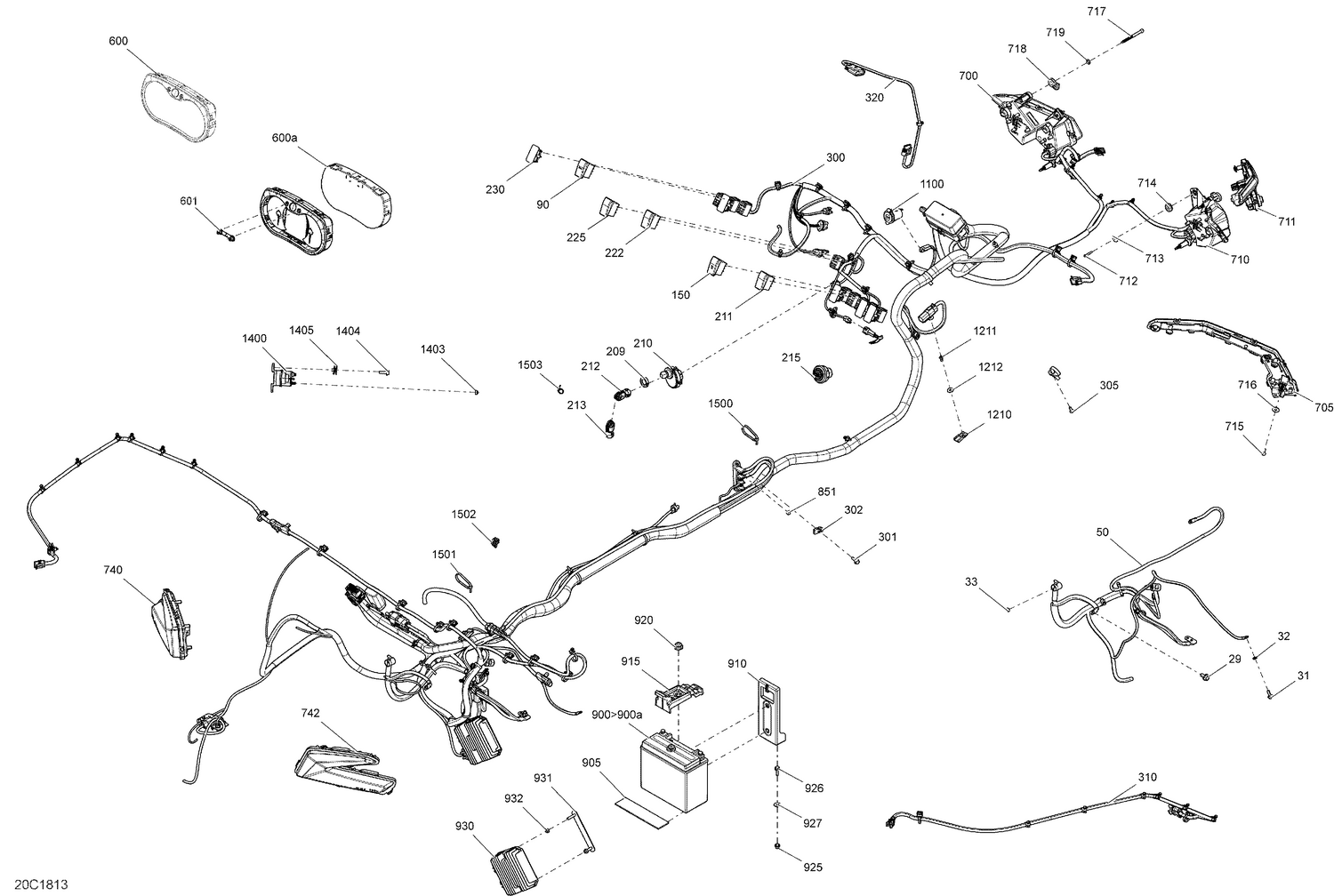

10- Electrical - System
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 29 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 32 | 234461608 | External Serrated Lock Washer 6 mm |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 50 | 710004863 | Starter Cable |
| 90 | 710004492 | Light Switch |
| 150 | 710004814 | Interrupteur 2 X 4 |
| 209 | 278002963 | Safety Nut (DESS Switch) |
| 210 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 211 | 710001781 | Switch DPS |
| 212 | 710004964 | Grey Key RFID |
| 213 | 710005232 | Green Key RFID |
| 215 | 710005213 | Start-Stop Button |
| 222 | 710003541 | Switch PPS Sport |
| 225 | 710002053 | Switch, Over ride |
| 230 | 710007173 | Plug Carling This part replaces 710001999. |
| 300 | 710005788 | Harness-Ass'y |
| 301 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 302 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 305 | 250000959 | Screw PT Type K-50 X 16 |
| 310 | 710004776 | Rear Harness |
| 320 | 710005291 | Cable Throttle Pedal |
| 600a | 415129349 | Lens |
| 601 | 415129355 | Speedometer Button |
| 700 | 710008811 | LH Front Auxiliary LED Light This part replaces 710004658. |
| 705 | 710004994 | LH Signature Beam |
| 710 | 710008812 | RH Front Auxiliary LED Light This part replaces 710004659. |
| 711 | 710004995 | RH Signature Beam |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet This part replaces 293720053. |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 716 | 234062670 | Stainless Steel Flat Washer |
| 717 | 710005837 | Ajustment Screw This part replaces 710005096. |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 740 | 710004743 | LH Tail Light |
| 742 | 710004744 | RH Tail Light |
| 851 | 232561434 | Elastic Stop Nut M6 |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 293830126 | Rubber Pad |
| 910 | 710004788 | Fixation Plate |
| 915 | 710004789 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 925 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 926 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 927 | 234062410 | Flat Washer 6 mm |
| 930 | 710005842 | Voltage Regulator This part replaces 710005568. |
| 931 | 710005782 | Bracket |
| 932 | 232561414 | Elastic Stop Nut M6 |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1210 | 270000141 | Clip |
| 1211 | 390402300 | Pop Rivet 3/16" |
| 1212 | 391301600 | Washer |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1405 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1502 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 1503 | 293750001 | Tie Wrap 94 mm |
