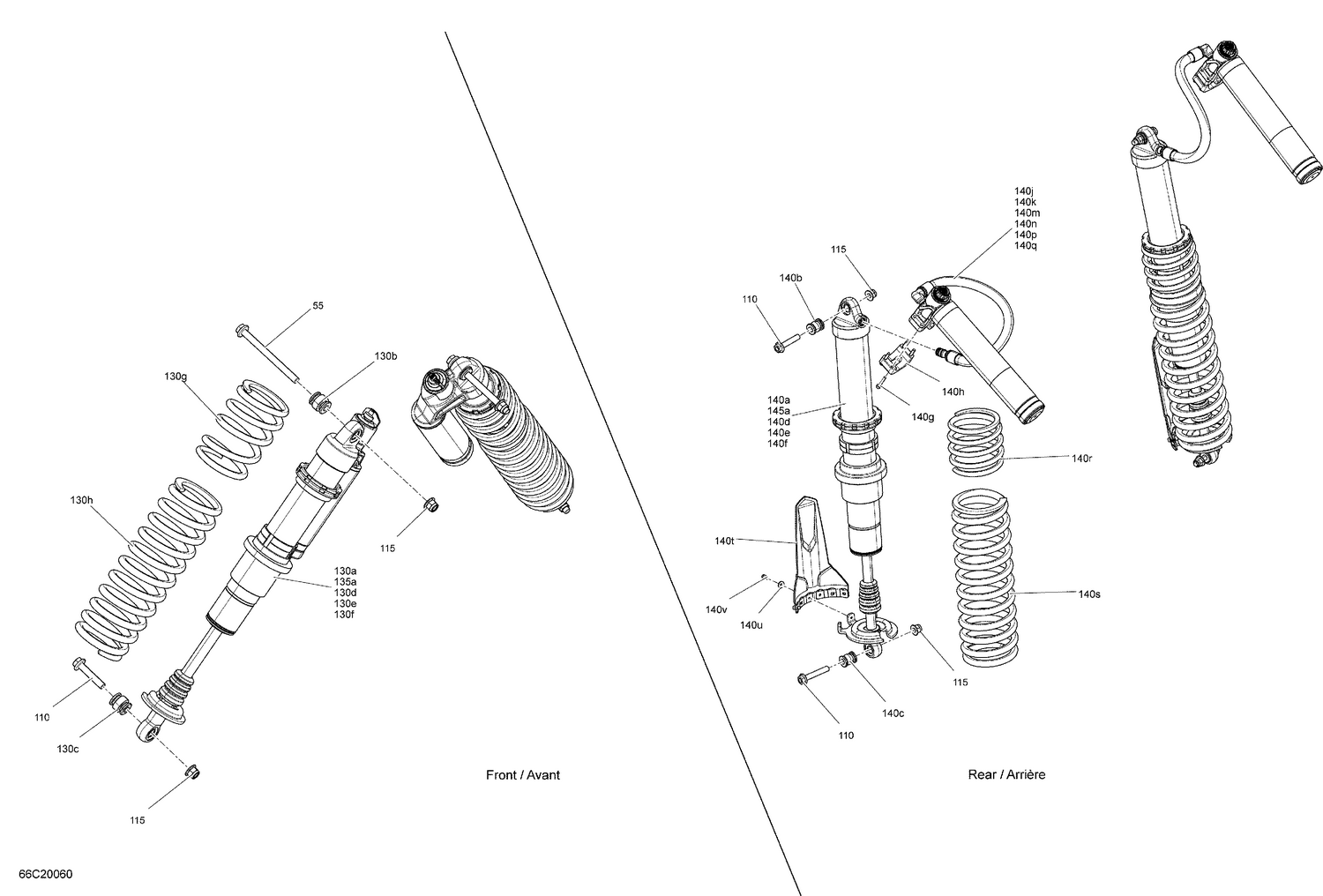

08- Shocks
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250000861 | Flange Screw M12 X 145 |
| 110 | 250000857 | Flange Screw M12 X 60 |
| 115 | 233221466 | Elastic Flange Nut M12 |
| 130b | 715900337 | Spherical Bearing |
| 130c | 706004078 | Ball Joint This part replaces 715900482. |
| 130d | 715900338 | O-Ring Bushing |
| 130e | 715900480 | Circlip |
| 130f | 715900481 | Reducer |
| 130g | 706203835 | Orange Crush, Front Compression Spring |
| 130h | 706203836 | Orange Crush, Front Compression Spring |
| 140b | 715900337 | Spherical Bearing |
| 140c | 706004078 | Ball Joint This part replaces 715900482. |
| 140d | 715900338 | O-Ring Bushing |
| 140e | 715900480 | Circlip |
| 140f | 715900481 | Reducer |
| 140g | 715900521 | Screw M6 X 35 |
| 140h | 715900522 | Réservoir Clamp |
| 140j | 715900605 | Preload Ring |
| 140k | 715900606 | Preload Ring Backup |
| 140m | 715900607 | Spring Adapter |
| 140n | 715900608 | Crossover ring |
| 140p | 715900597 | Spring Retainer |
| 140q | 715900593 | Spring Coupler |
| 140r | 706003566 | Orange Crush, Rear Compression Spring |
| 140s | 706003565 | Orange Crush, Rear Compression Spring |
| 140t | 706202215 | Protector |
| 140u | 250200025 | Washer M5 |
| 140v | 210251150 | Hex Flange Screw M5 X 11 |
