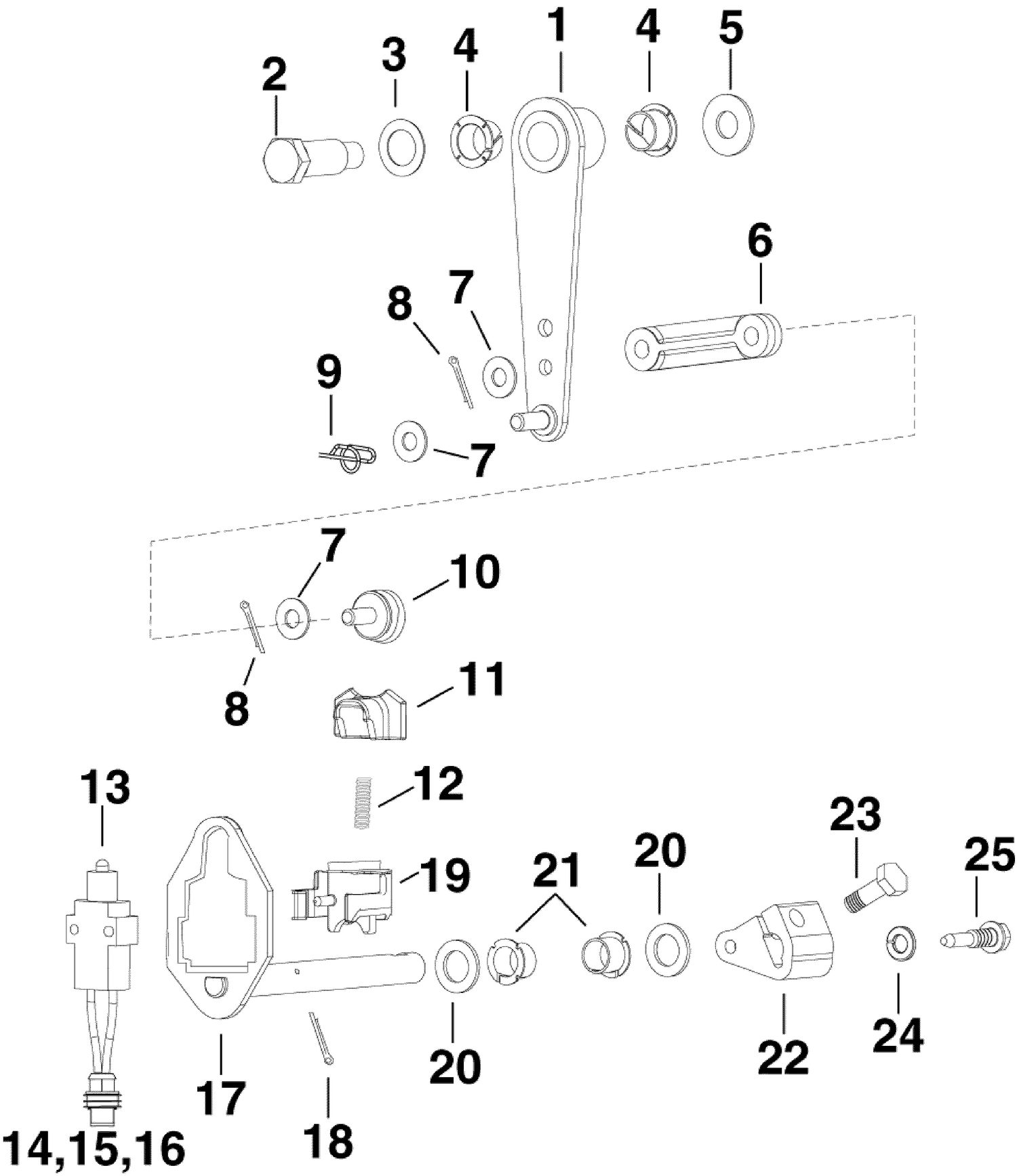

SHIFT LINKAGE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5005919 | SHIFT ARM |
| 2 | 0347338 | SCREW, Cam to C/C |
| 3 | 0127386 | RONDELLE |
| 5 | 0908398 | WASHER |
| 6 | 0331737 | LINK, Shift arm |
| 10 | 0331404 | AXE, aide à la commande de sens de marche |
| 11 | 0513811 | SUPPORT, coulisse |
| 12 | 0333749 | RESSORT |
| 13 | 0586861 | SWITCH, Neutral/Shift interrupt |
| 17 | 0431908 | LEVIER & ARBRE DE SENS DE MARCHE |
| 18 | 0330145 | COTTER PIN |
| 19 | 0513134 | SUPPORT, à clipser |
| 20 | 0202026 | LOCK WASHER, Stud |
| 21 | 0312708 | BUSHING |
| 22 | 0335191 | LEVER, Shift rod |
| 23 | 0328695 | CLAMP, Engine cable |
