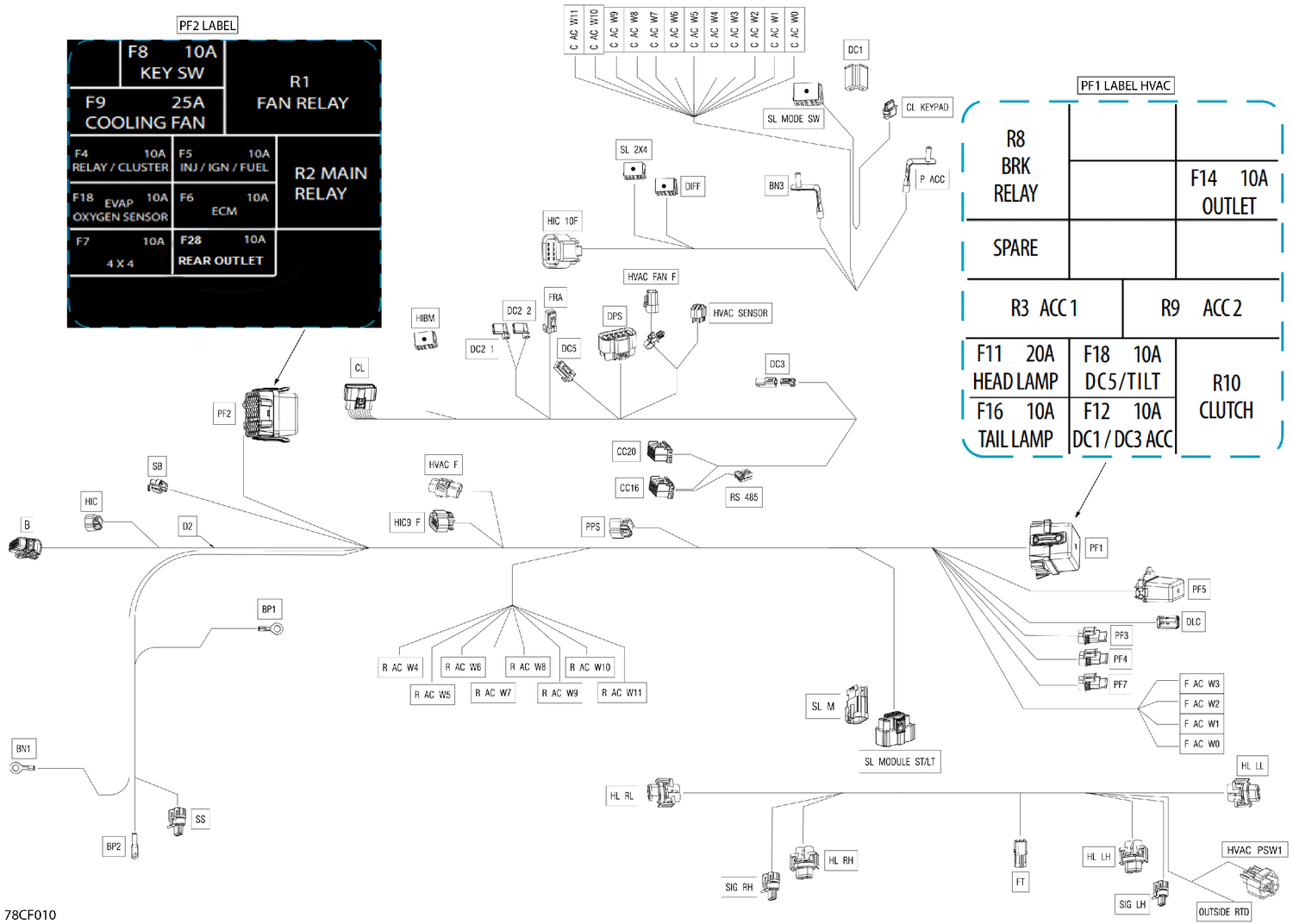

08- Electric - Main Harness - 710008771
Parts (116)
| Ref | Part Number | Description |
|---|---|---|
| B | 710001588 | Female Terminal Housing, 48 Circuits |
| B | 710001589 | Female Terminal |
| B | 710001591 | Cover, 48 positions |
| B | 710001592 | Plug |
| B | 710001593 | Plug |
| B | 710001727 | Female Terminal |
| B | 710001728 | Terminal |
| BN1 | 710000913 | Terminal |
| BN3 | 710006801 | Open Barell |
| BP1 | 278000992 | Open Barrel |
| BP2 | 710007033 | Cap Battery Cable |
| C | AC | W0 278001008 Insulated Sheath 278001008 |
| CC16 | 710006686 | Female Terminal Housing 16 Circuits |
| CC16 | 710006688 | Terminal |
| CC20 | 710006687 | Female Terminal Housing 20 Circuits |
| CC20 | 710006688 | Terminal |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| CL | 515178349 | Female Terminal 22 AWG |
| D2 | 409012700 | Diode |
| DC1 | 710005373 | Housing |
| DC1 | 710005518 | Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DC5 | 515175231 | Female Terminal |
| DC5 | 515175658 | Female Housing, 2 Circuits |
| DIFF | 710002000 | Housing |
| DIFF | 710003047 | Terminal |
| DIFF | 710005491 | Female Terminal |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| F | AC | W0 278001007 Insulated Sheath 278001007 |
| FRA | 515175658 | Female Housing, 2 Circuits |
| FRA | 710003896 | Female Terminal |
| FT | 278000217 | Female Housing, 2 Circuits |
| FT | 278000218 | Wire Seal |
| FT | 409004300 | Male Terminal |
| FT | 710000992 | Clip |
| HIBM | 710002001 | Housing Connector |
| HIBM | 710003047 | Terminal |
| HIBM | 710003048 | Terminal |
| HIBM | 710005491 | Female Terminal |
| HIC | 10 | F 710001928 Housing 710001928 |
| HIC | 710001222 | Lock |
| HIC | 710001225 | Cap |
| HIC | 710001228 | Terminal |
| HIC | 710001229 | Terminal |
| HIC | 710001233 | Seal |
| HIC | 710001332 | Seal Wire |
| HIC | 710001930 | Female Housing, 12 Circuits |
| HIC | 710006333 | Lock |
| HVAC | FAN | F 278001473 Female Terminal Housing, 4 Circuits 278001473 |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 278003553 | Fuse Cover |
| PF1 | 293300198 | Seal |
| PF1 | 515177177 | Female Terminal |
| PF1 | 710000048 | Wire Seal |
| PF1 | 710000918 | Female Terminal |
| PF1 | 710008508 | Terminal |
| PF1 | LABEL | HVAC 710008908 Fuses Decals 710008908 |
| PF2 | 278000216 | Wire Seal |
| PF2 | 278000218 | Wire Seal |
| PF2 | 278001065 | Wire Seal |
| PF2 | 278002578 | Female Terminal |
| PF2 | 278003448 | Fuse Base Ass'y |
| PF2 | 278003553 | Fuse Cover |
| PF2 | 293300198 | Seal |
| PF2 | 710000890 | Female Terminal |
| PF2 | 710000918 | Female Terminal |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| PF4 | 278001325 | Fuse Holder |
| PF4 | 710000357 | Female Terminal |
| PF5 | 278000216 | Wire Seal |
| PF5 | 278000218 | Wire Seal |
| PF5 | 278002285 | Fuse Box Ass'y |
| PF5 | 278002286 | Fuse Box Cover |
| PF5 | 278002578 | Female Terminal |
| PF5 | 710000504 | Wire Seal |
| PF5 | 710000890 | Female Terminal |
| PF5 | 710000918 | Female Terminal |
| PF5 | 710001427 | Wire Seal |
| PF5 | 710006791 | Fuse Box Decal |
| PF7 | 278001325 | Fuse Holder |
| PF7 | 710000113 | Female Terminal |
| PF7 | 710000357 | Female Terminal |
| PPS | 515177151 | Housing |
| PPS | 710001229 | Terminal |
| PPS | 710001233 | Seal |
| PPS | 710005296 | Lock 6 Positions |
| R | AC | W10 278001007 Insulated Sheath 278001007 |
| SB | 278001482 | Seal |
| SB | 710001134 | Female Terminal |
| SB | 710002043 | Lock |
| SB | 710002177 | Housing |
| SL | MODE | SW 710002000 Housing 710002000 |
| SL | MODULE | LT 278003046 Seal 278003046 |
| SS | 515177192 | Female Housing, 2 Circuits |
| SS | 710001152 | Lock |
| SS | 710001153 | Seal Wire |
| 300 | 710008771 | Main Wiring Harness |
