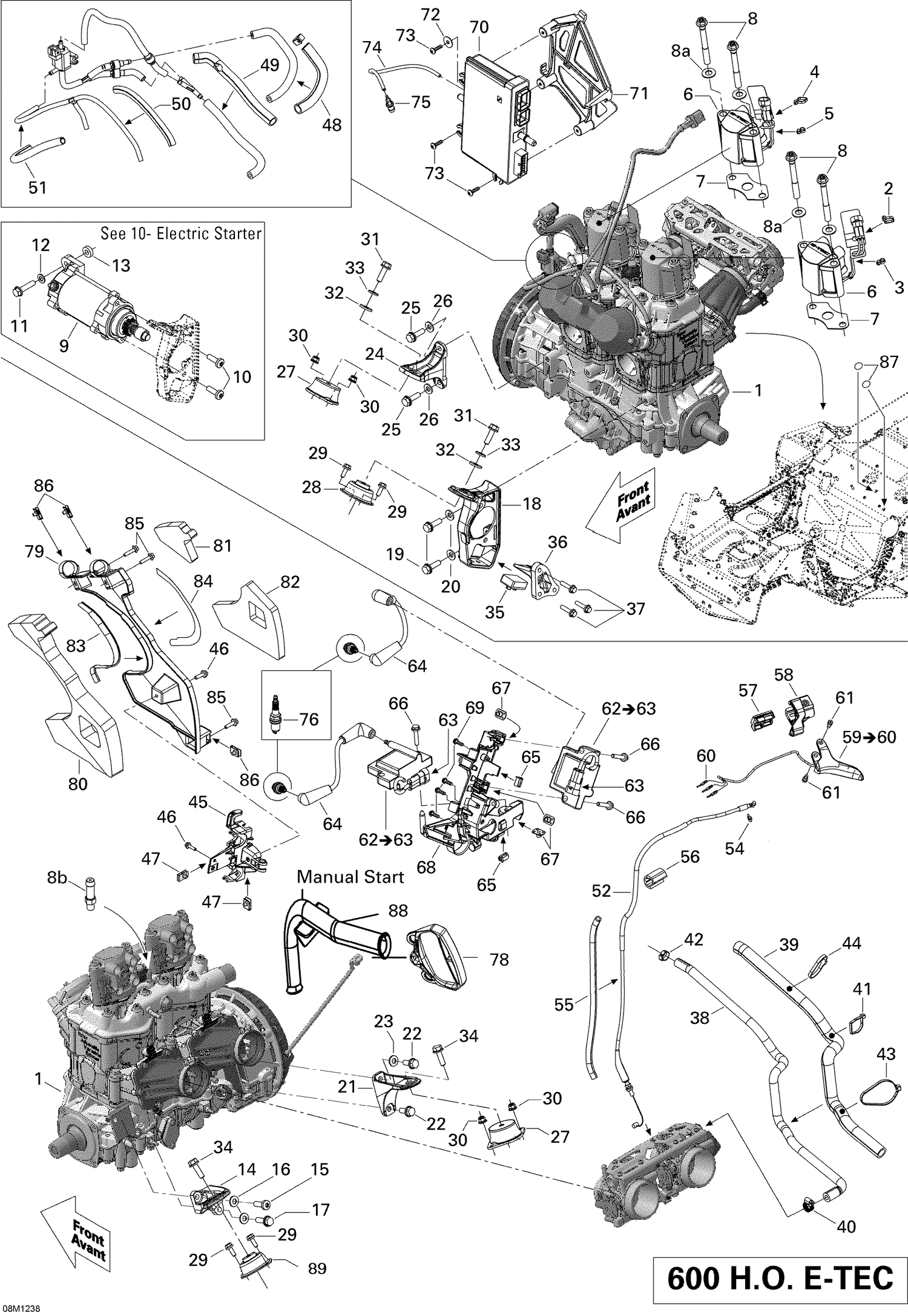

01- Engine And Engine Support

01- Engine And Engine Support

Parts (80)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 600HOE With Rewind Starter
2 293750001 Tie Wrap 94 mm
3 293750002 Tie Wrap 142 mm
4 293750001 Tie Wrap 94 mm
5 293750002 Tie Wrap 142 mm
6 512061233 Fuel Injector This part replaces 512060539.
7 420430930 Gasket
8 420441187 Torx Flange Screw M10 X 90 -SW 13/T50
8a 234001410 Flat Washer 10 mm
8b 420924724 Hose Nipple This part replaces 420924720.
13 Not Available As Spare Part - See 10-Battery And Starter
14 512060478 Rear Support, PTO
15 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
16 234281474 Conical Spring Washer M8
17 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
18 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060560.
19 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
20 234281474 Conical Spring Washer M8
21 512060559 Rear Support, MAG
22 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
23 234281474 Conical Spring Washer M8
24 512060469 Front Support, MAG
25 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
26 234281474 Conical Spring Washer M8
27 512060729 Rubber Mount This part replaces 512060457.
28 512061507 Vibration Damper This part replaces 512060387.
29 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
30 233261414 Hex. Flange Elastic Nut M6 x 1.0
31 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
32 503183200 Yellow, Washer
33 234281474 Conical Spring Washer M8
34 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
35 512060627 Stopper This part replaces 512060577.
36 512060576 Stopper Support
37 207562544 Hex. Flange Screw M6 X 25
38 509000793 FORMED HOSE OUTPUT TB - Call your local BRP dealership
39 219704408 Tubing 16 Mm 1000Mm Long
40 293650084 Norma Clamp
41 414115200 Tie-Rap 180 mm
42 293650046 Oetiker Clamp
43 414115200 Tie-Rap 180 mm
44 414115200 Tie-Rap 180 mm
45 512060298 Solenoid Support
46 207652044 Hex.Flange Screw M5 X 20
47 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
48 219704400 Was 409901800 Tubing (13 mm)
49 219704400 Was 409901800 Tubing (13 mm)
50 219704407 Tubing 10 MM 1000MM Long
51 219704407 Tubing 10 MM 1000MM Long
52 512060633 Throttle Cable
54 414274500 Circlip
55 219704399 Was 409901700 Tubing (9 mm)
56 512060313 Protector
57 512060198 Upper Housing Ass'y
58 512060860 Lower Housing This part replaces 512060430.
60 515175232 Male Terminal
61 732601143 Flange Screw
63 710000568 Housing
64 512061126 Ignition Cable, 177mm long This part replaces 512060094.
65 710000992 Clip
66 250000253 Hex. Flange Screw M6 X 1.0 X 30
67 293100003 Nut Welded, M6
68 512060888 Ignition Coils Support This part replaces 512060696.
69 241151640 Hex. Flange Screw K50 X 2.24 X 16
70 512060780 Calibrated Module This part replaces 512060612.
71 512060858 Calibrated Module Support This part replaces 512060297.
72 250200040 Flat Washer
73 250000297 Truss Head Torx Screw K50 X 20
74 219704709 NEEDS DESCRIPTION This part replaces 219704409.
75 414814100 Male Connector
76 415130430 Spark Plug NGK PZFR6F This part replaces 415129432.
79 512060339 NOISE SHIELD - Call your local BRP dealership
80 512060343 Interior Noise Foam
81 512060344 Upper Exterior Noise Foam
82 512060362 LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership
83 512060574 Heat Shield
84 512060575 Heat Shield
85 207652044 Hex.Flange Screw M5 X 20
86 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
87 518325560 Adhesive Patch
