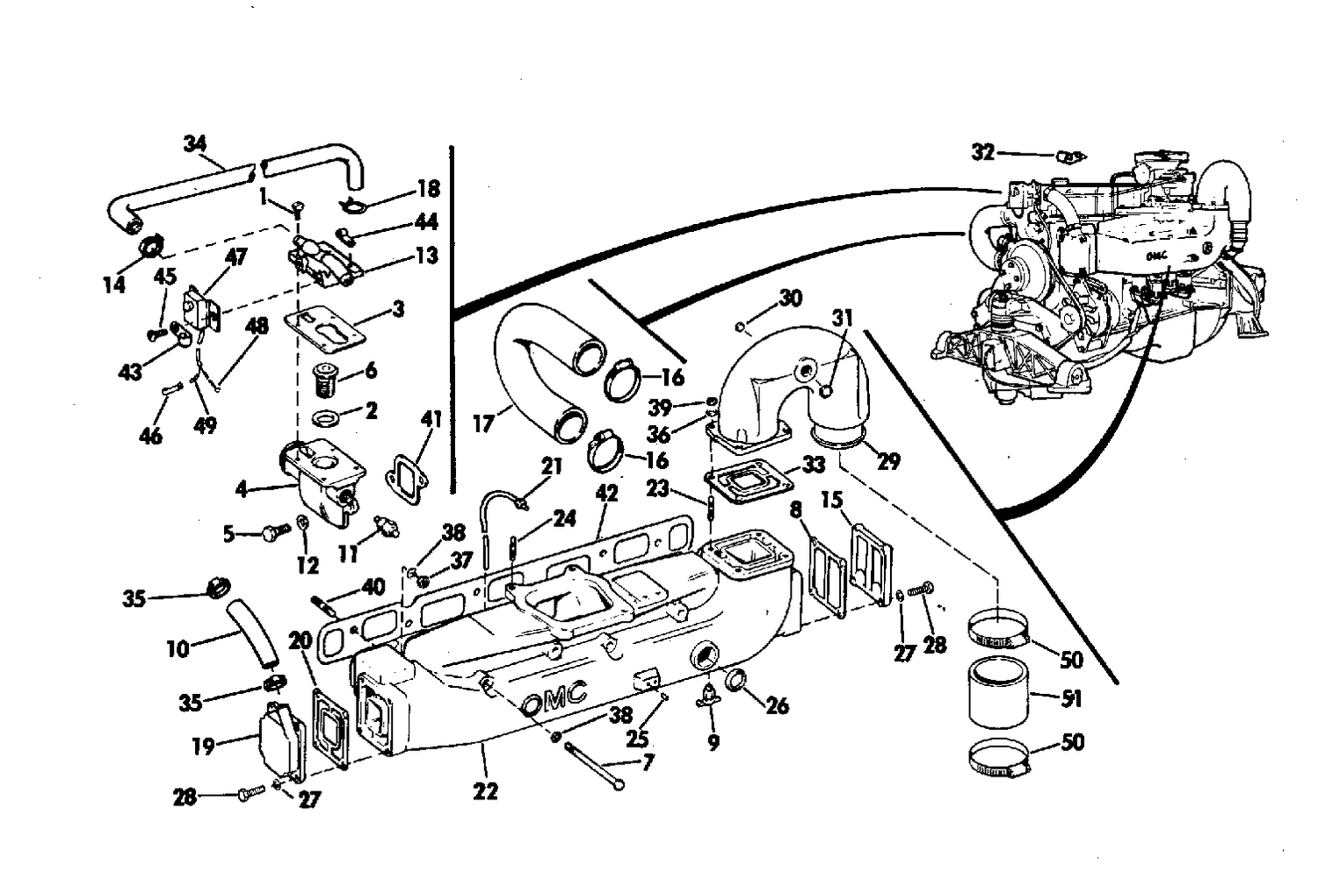

| Ref | Part Number | Description |
|---|
| 2 |
0310913 |
GASKET |
| 3 |
0314809 |
GASKET |
| 4 |
3854254 |
HOUSING & PLUG ASSY This part replaces 0383313. |
| 5 |
0306414 |
SCREW |
| 6 |
0383307 |
TERMOSTAT ASSEMBLY |
| 7 |
0907891 |
SCREW, Exh mfld, rear |
| 8 |
0907761 |
GASKET, Cap to manifold |
| 9 |
0379757 |
DRAIN COCK |
| 10 |
0908189 |
HOSE, Outlet |
| 11 |
0171960 |
SENDER, Water temperature |
| 13 |
0908216 |
HOUSING ASSY, Upper |
| 14 |
0979803 |
CLAMP |
| 15 |
0907885 |
CAP, Exh manifold rear |
| 17 |
0311075 |
HOSE |
| 18 |
0310903 |
CLAMP HOSE TO INT HSG |
| 19 |
0910384 |
CAP, Manifold This part replaces 0908184. |
| 20 |
0311121 |
GASKET, Cap to manifold |
| 21 |
0979882 |
HEAT EXCHANGER ASSY |
| 22 |
0980958 |
MANIFOLD & STUD ASSY This part replaces 0980461. |
| 23 |
0310870 |
STUD |
| 25 |
0907799 |
PIN |
| 26 |
0315712 |
CORE PLUG |
| 28 |
0552940 |
SCREW, Stern bracket |
| 30 |
0907807 |
CORE PLUG |
| 31 |
0315712 |
CORE PLUG |
| 33 |
3850495 |
GASKET, Elbow to manifold This part replaces 0908013. |
| 34 |
0908190 |
HOSE, Inlet |
| 35 |
0912627 |
CLAMP This part replaces 0313851. |
| 38 |
0120177 |
L'WASHER, Alternator to brkt |
| 40 |
3852093 |
STUD, Lift bracket This part replaces 0310968. |
| 41 |
3789161 |
GASKET, Housing |
| 42 |
0907932 |
GASKET, Manifold to head |
| 43 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 44 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 45 |
0307920 |
SCREW |
| 47 |
0383440 |
BOLTAGE REG CABLE ASSY |
| 50 |
0980021 |
CLAMP, Boot to trim motor |
