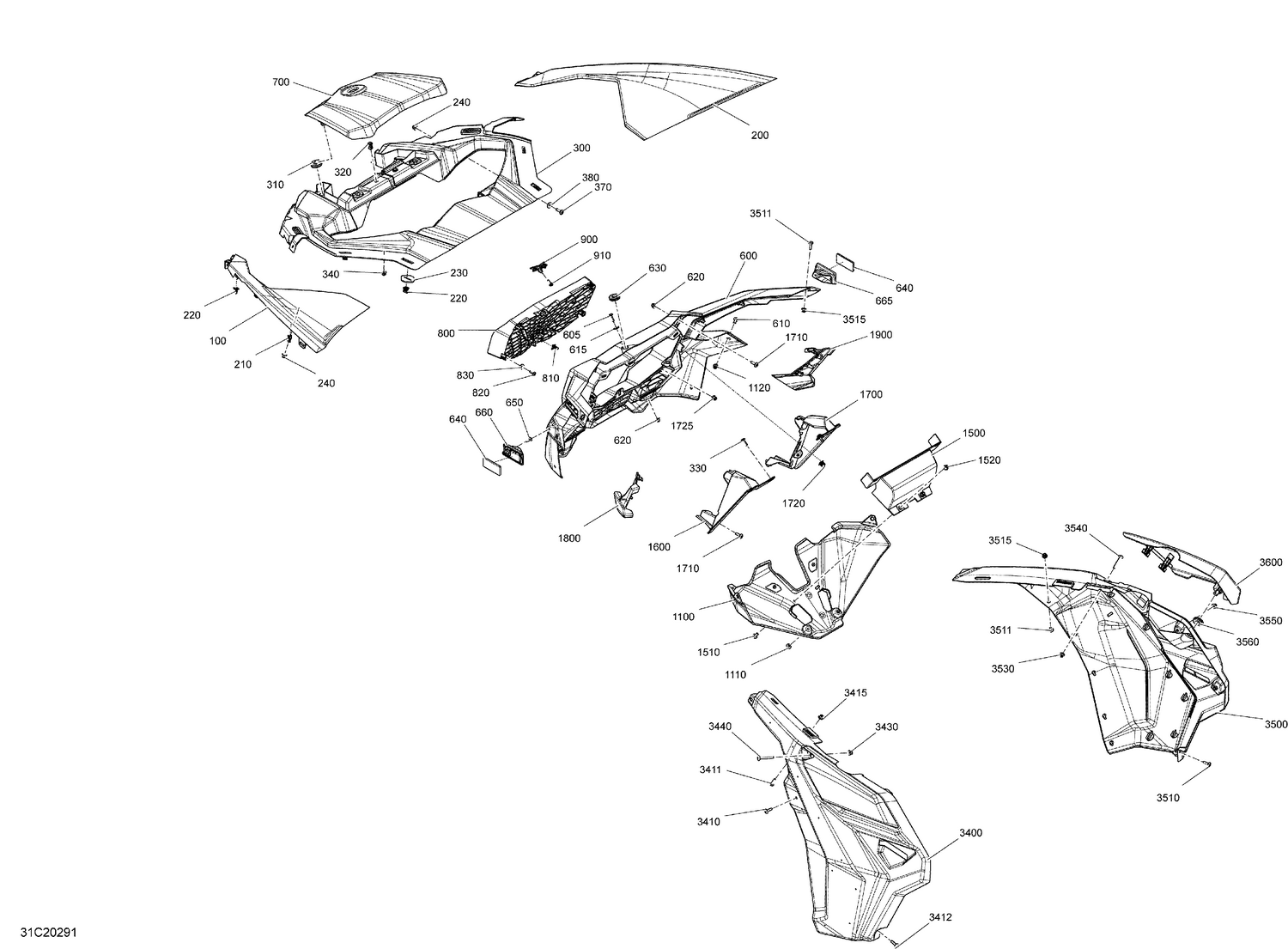

09- Body - Front Section - XRS - Dazzling Blue
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705014303 | Dazzling Blue, LH Front Fender This part replaces 705014073. |
| 200 | 705014311 | Dazzling Blue, RH Front Fender This part replaces 705014077. |
| 210 | 705010721 | Clip |
| 220 | 517302785 | Edge Clip |
| 230 | 705003841 | Support Plate |
| 240 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 300 | 705014684 | Central Hood |
| 310 | 705010718 | Grommet |
| 320 | 293150230 | Tuflok Plastic Rivet |
| 330 | 250000722 | Torx Screw M6 X 20 |
| 340 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 234062670 | Stainless Steel Flat Washer |
| 600 | 705009508 | Front Facia |
| 605 | 250000722 | Torx Screw M6 X 20 |
| 610 | 250000722 | Torx Screw M6 X 20 |
| 615 | 234062670 | Stainless Steel Flat Washer |
| 620 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 630 | 517303756 | Grommet |
| 640 | 520000271 | Amber, Reflector |
| 650 | 250000720 | Torx Screw K50 X 16 |
| 660 | 705011806 | LH Reflector Support |
| 665 | 705011814 | RH Reflector Support |
| 700 | 705014317 | Dazzling Blue, Front Hood This part replaces 705014081. |
| 800 | 703501021 | Radiator Front Grille |
| 810 | 517302785 | Edge Clip |
| 820 | 250000720 | Torx Screw K50 X 16 |
| 830 | 250200025 | Washer M5 |
| 900 | 705010885 | Logo |
| 910 | 250000725 | Screw M4 X 16 |
| 1100 | 705009978 | Front Deflector |
| 1110 | 293150103 | Pop Rivet 3/16" |
| 1120 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1500 | 705010742 | Lower Radiator deflector |
| 1510 | 250000722 | Torx Screw M6 X 20 |
| 1520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1600 | 705017559 | LH Front Radiator Deflector This part replaces 705010626. |
| 1700 | 705017560 | RH Front Radiator Deflector This part replaces 705010627. |
| 1710 | 250000722 | Torx Screw M6 X 20 |
| 1720 | 517302785 | Edge Clip |
| 1725 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1800 | 705010628 | LH Light Cover |
| 1900 | 705017566 | RH Headlight Trim This part replaces 705010629. |
| 3400 | 715006594 | Black, LH Front Lateral Panel Kit |
| 3410 | 250000722 | Torx Screw M6 X 20 |
| 3411 | 250000712 | Torx Screw M6 X 20 |
| 3412 | 250000807 | Torx Truss Screw M6 X 25 |
| 3415 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3430 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3440 | 250000868 | Torx Truss M6 X 50 |
| 3500 | 715006596 | Black, RH Front Lateral Panel Kit |
| 3510 | 250000722 | Torx Screw M6 X 20 |
| 3511 | 250000712 | Torx Screw M6 X 20 |
| 3515 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3530 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3540 | 250000868 | Torx Truss M6 X 50 |
| 3550 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3560 | 517303756 | Grommet |
