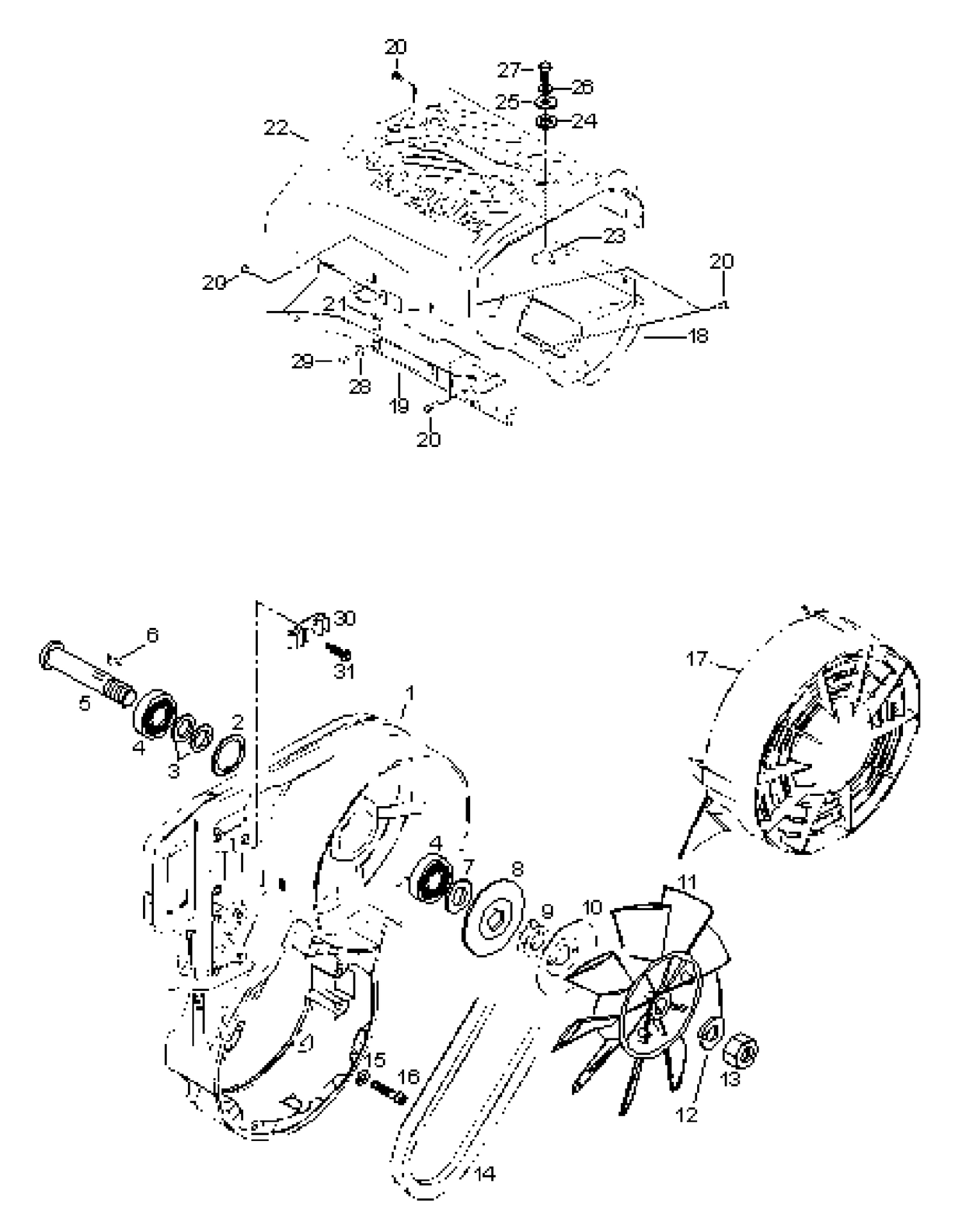

01- Fan Housing
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912230 | Fan Housing This part replaces 420912203. |
| 2 | 420945880 | Locking ring |
| 3 | 420244585 | Shim |
| 4 | 420832161 | Ball Bearing 6203 |
| 5 | 420937941 | Fan Axle This part replaces 420937940. |
| 6 | 420246015 | Woodruff Key |
| 7 | 420827650 | Distance sleeve |
| 8 | 420980496 | Pulley half |
| 9 | 420827080 | Shim 0.5 mm |
| 9 | 420827082 | Shim 0.2 mm |
| 10 | 420980523 | Protection washer |
| 11 | 420866294 | Fan |
| 12 | 420945756 | Lock washer |
| 13 | 420942289 | Nut M16 This part replaces 420942285. |
| 14 | 414630800 | V-belt |
| 15 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 16 | 420440647 | Flanged Torx Screw M6 X 30 This part replaces 420440642. |
| 17 | 420975695 | FAN COVER - Call your local BRP dealership |
| 18 | 420811392 | Cylinder cowl(exhaust) |
| 19 | 420811835 | LOWER COWLING INTAKE SIDE - Call your local BRP dealership |
| 20 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 21 | 417300005 | SPRING NUT U #10-24 - Call your local BRP dealership |
| 22 | 420811295 | CYLINDER COWL - Call your local BRP dealership |
| 23 | 420827817 | Cup washer |
| 24 | 420960865 | Rubber washer |
| 25 | 420227936 | Washer This part replaces 420227935. |
| 26 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 27 | 40035 | Screw M8 x 16 |
| 28 | 420926180 | FLAT WASHER - Call your local BRP dealership |
| 29 | 417300006 | Tapping Screw M4.8 X 16 This part replaces 420841495. |
| 30 | 420860945 | CLAMP - Call your local BRP dealership |
