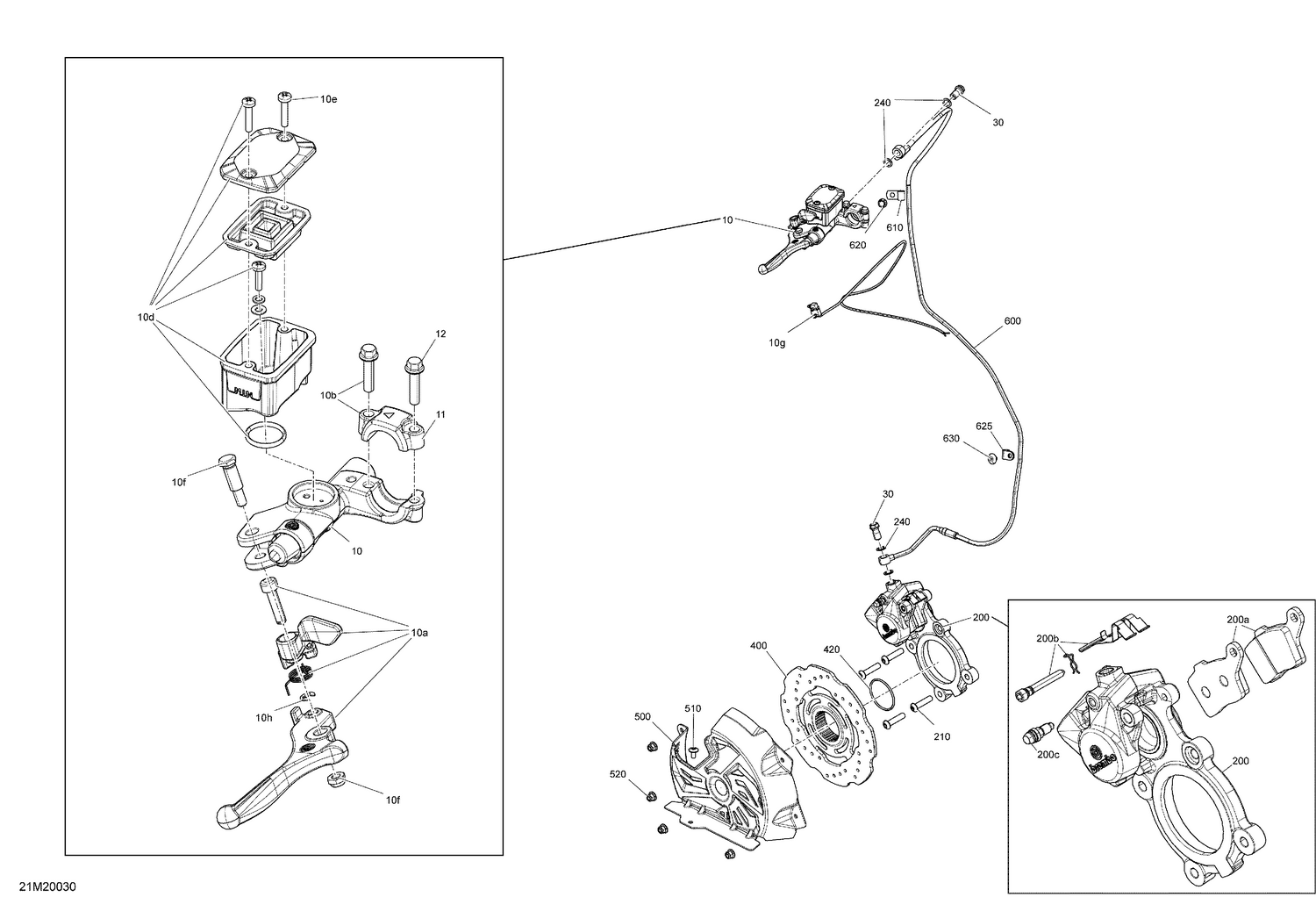

06- Brakes - System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 507032476 | Lever With Parking Lock |
| 10c | 250000447 | Hex. Flange Screw M6 X 25 |
| 10e | 415129356 | Screw M4 X 20 |
| 10f | 415030000 | Pin Ass'y |
| 10g | 507032601 | Microswitch |
| 10h | 414439000 | Circlip |
| 11 | 719000049 | Clamps |
| 12 | 250000447 | Hex. Flange Screw M6 X 25 |
| 30 | 507032551 | Banjo Bolt |
| 200a | 507032473 | Brake Pads Kit |
| 200b | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 200c | 507032475 | Bleeder |
| 210 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 240 | 705601628 | Copper Washer |
| 400 | 507032554 | Disk |
| 420 | 293300221 | O Ring |
| 510 | 250000767 | Torx Truss Screw M6 X 12 |
| 520 | 233261466 | Hex. Flange Elastic Nut M6 |
| 600 | 507032655 | Brake Hose |
| 610 | 414108400 | Open Clamp |
| 620 | 210261040 | Hex. Flange Screw M6 X 10 |
| 625 | 293650257 | Hose Clamp |
