Parts Catalog

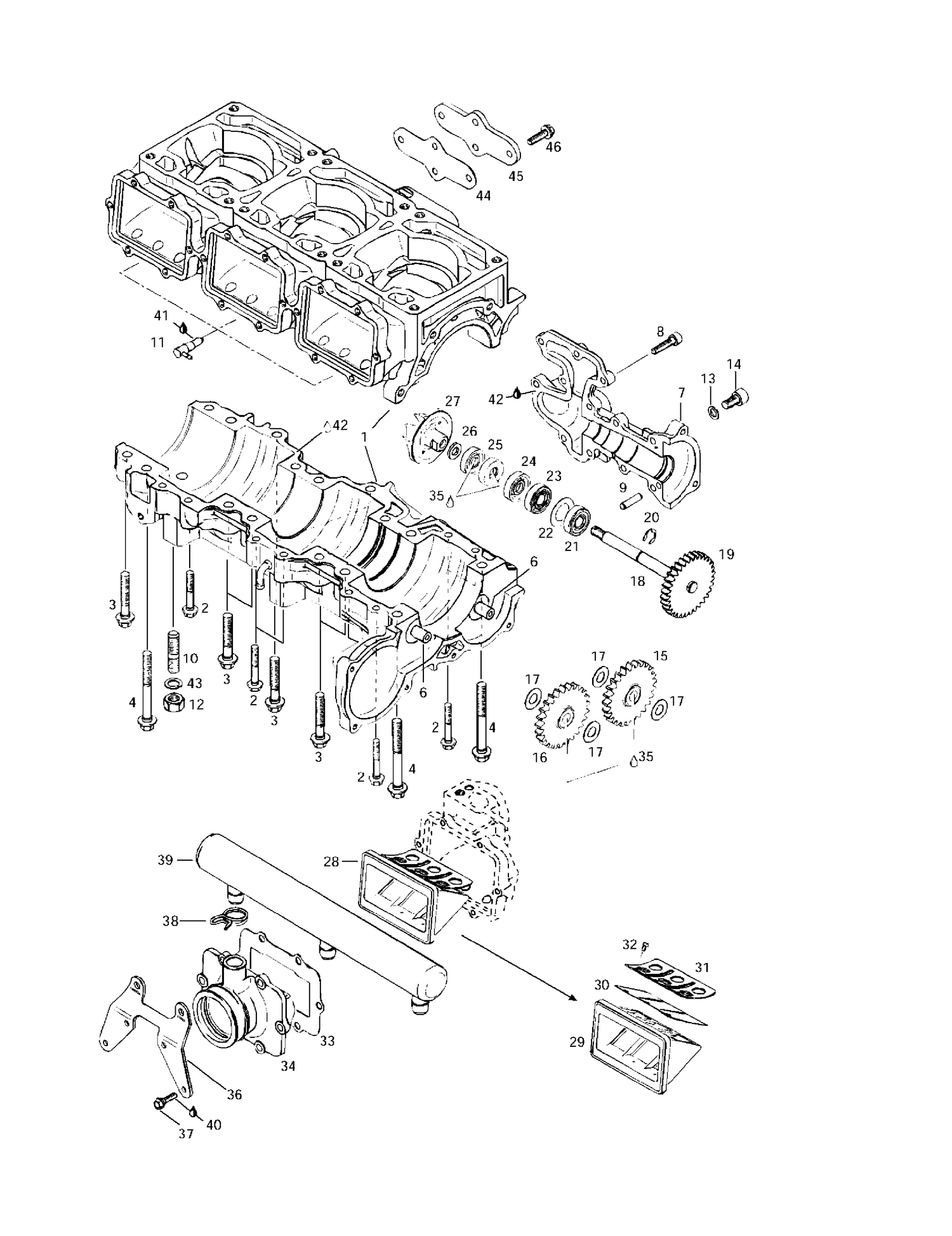

01- Crankcase, Reed Valve, Water Pump

Parts (42)

Ref	Part Number	Description
2	420941451	HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
3	420640433	Collar Hex Screw M8 X 45 This part replaces 420940636.
4	420841307	Hex. Collar Screw M8 X 65 This part replaces 420841306.
5	Not	Available As Spare Part - Silastic 732 RTV, 100 gr
6	420929935	INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
7	Not	Available As Spare Part - Water Pump Cover
8	205062544	Socket Head Screw M6 X 25 This part replaces 222962565.
9	420429230	Dowel Pin
10	420940400	Stud M10 x 25
11	420956511	Check Valve This part replaces 420956510.
12	232006414	Hex. Nut M10 X 1.5 This part replaces 228001045.
13	420950141	Sealing Ring
14	420440191	Socket Head Screw M8 x 16
15	420834266	Sprocket 32 T
16	420834267	SPROCKET, 32 TEETH - Call your local BRP dealership
17	420927952	THRUST WASHER - Call your local BRP dealership
19	Not	Available As Spare Part - Waterpump Gear
20	420845390	RETAINING RING - Call your local BRP dealership
21	420832490	Bearing_Ball - Call your local BRP dealership
22	420944466	SHIM 1 MM - Call your local BRP dealership
23	420232100	Ball Bearing
24	420230195	Oil Seal
25	420950400	OIL SEAL - Call your local BRP dealership
26	420827795	Distance Shim
27	420922440	Water Impeller
29	420924512	Reed Valve
30	420924532	Reed Pedal
31	420924539	Reed Pedal Stop
32	420941215	Phillips Screw M3 X 5
33	420950292	GASKET 1 MM - Call your local BRP dealership
34	420867776	Carburetor Adaptor
35	413707000	Dow Corning 111, 150 g
36	420851350	Carburetor Socket Carrier
37	420841555	Hex. Tapping Screw M5 X 20
38	420851360	Clamp
39	420867790	Intake Resonator
40	293800060	Loctite 243, 10 ml This part replaces 413703000.
41	219703000	Sealant Loctite 648 This part replaces 420899788.
42	413707100	Sealant, 100 gr
43	420945753	Lock Washer
44	420931300	Water Duct Gasket
45	420810470	Water Duct Cover
