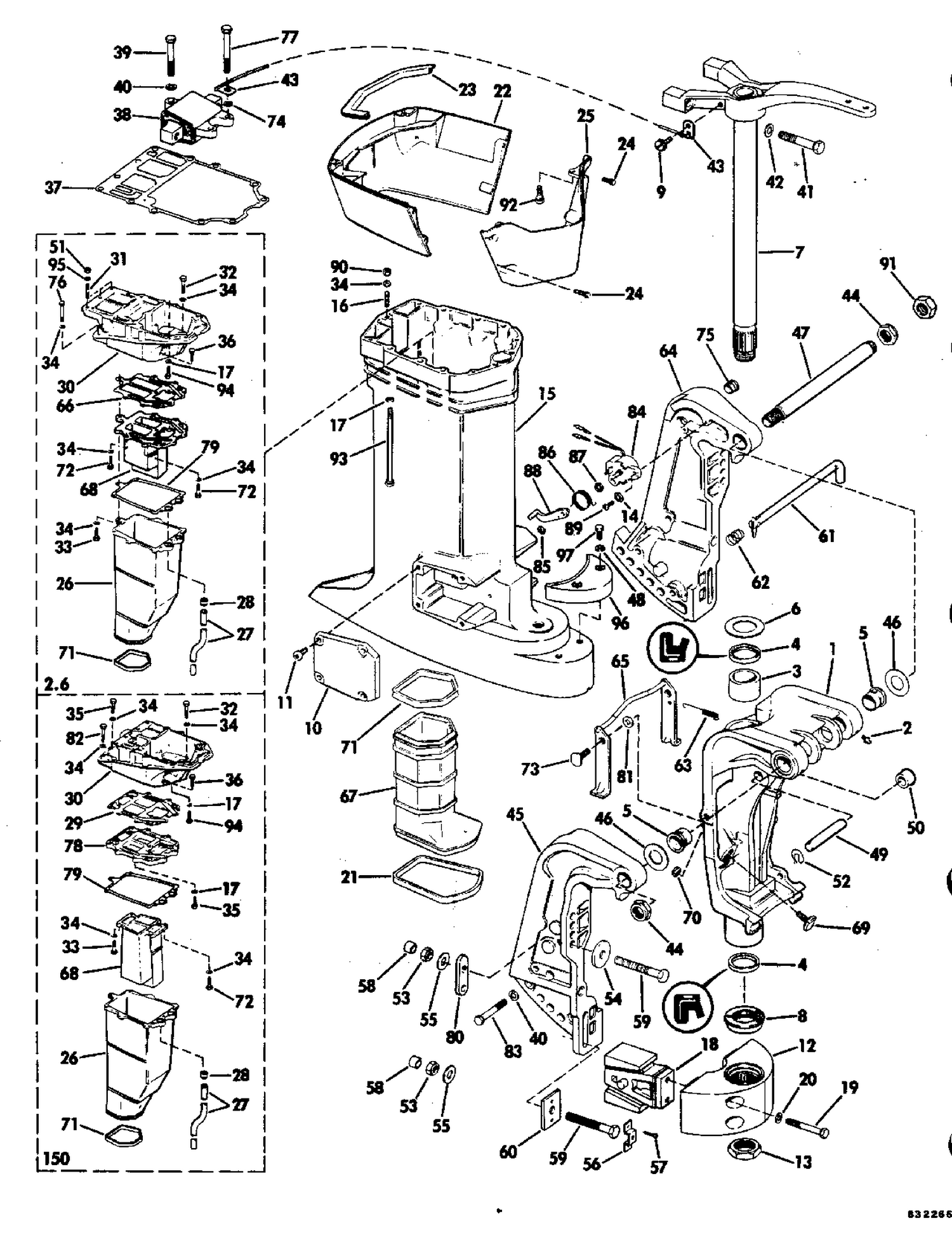

| Ref | Part Number | Description |
|---|
| 1 |
0432708 |
SWIVEL BRACKET This part replaces 0389335. |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392518 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0327801. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0340006 |
BRACKET, Mount This part replaces 0327051. |
| 13 |
0320746 |
CROU, support de montage |
| 15 |
0392144 |
EXHAUST HOUSING, 175 |
| 15 |
0392170 |
EXHAUST HOUSING |
| 16 |
0314956 |
STUD |
| 18 |
0434629 |
MOUNT, Lower This part replaces 0391774. |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0306314 |
L'WASHER,Scr,long |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
0390131 |
COVER, Exhaust housing, rear |
| 23 |
0318258 |
SEAL Cover |
| 25 |
0323800 |
COVER, Exhause housing, front, plastic |
| 26 |
0327800 |
EXH. HSG., Inner, upper This part replaces 0323548. |
| 26 |
0329788 |
EXH. HSG., Inner upper, 2.6 |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 28 |
0305145 |
GROMMET |
| 29 |
0324516 |
GASKET, Adapter to plate, 150 |
| 30 |
0327804 |
ADAPTER, Exh. hsg., 150 |
| 30 |
0392891 |
ADAPTER, Exh. hsg., 2.6 |
| 31 |
0301185 |
STUD |
| 32 |
0030459 |
SCREW,Adapter to inner housing |
| 33 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 35 |
0306418 |
VIS, ancrage |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0323214 |
GASKET, Adap. to pwrhd, 175 |
| 38 |
0387098 |
RUBBER MOUNT ASSY., Upper |
| 39 |
0301431 |
SCREW |
| 40 |
0307708 |
RONDELLE GROWER |
| 41 |
0335612 |
SCREW, Upper This part replaces 0316406. |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0583967 |
GROUND LEAD This part replaces 0392520. |
| 44 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 45 |
0395844 |
STEERING BRACKET, ASSY., Stbd. This part replaces 0392204. |
| 47 |
0335553 |
TILT TUBE This part replaces 0321052. |
| 49 |
0320792 |
PIN |
| 52 |
0321054 |
SPRING CLIP |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0436541 |
ROD Assy, Thrust This part replaces 0387278. |
| 62 |
0321053 |
SORUBG,Thrust rod |
| 64 |
0396309 |
STERN BRACKET ASSEMBLY, Port This part replaces 0392203. |
| 65 |
0390442 |
LOCATING LEVER, Rod |
| 66 |
0323292 |
GASKET, Adapter to megaphone |
| 67 |
0327796 |
EXHASUT HSG,Inner lower |
| 68 |
0327802 |
TUNING MEGAPHONE |
| 68 |
0329789 |
MEGAPHONE, 2.6 |
| 71 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 72 |
0306418 |
VIS, ancrage |
| 73 |
0303398 |
VIS, support This part replaces 0302030. |
| 73 |
0329109 |
SHOULDER SCREW This part replaces 0321389. |
| 76 |
0315071 |
SCREW |
| 77 |
0317222 |
SCREW |
| 78 |
0327803 |
PLATE ASSY. |
| 79 |
0323222 |
GASKET, Inner exh. hsg to meg |
| 80 |
0321735 |
SUPPORT, Stern bracket |
| 82 |
0600014 |
SCREW |
| 83 |
0318612 |
SCREW, Bracket to cover |
| 84 |
0582153 |
SENDING UNIT |
| 89 |
0319682 |
VIS, capteur vers plaque |
| 90 |
0328742 |
NUT This part replaces 0306338. |
| 91 |
0322376 |
NUT, Wiper, tilt tube |
| 93 |
0328698 |
SCREW, Adapter to crankcase This part replaces 0908931. |
| 94 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 96 |
0392123 |
ANODE |
