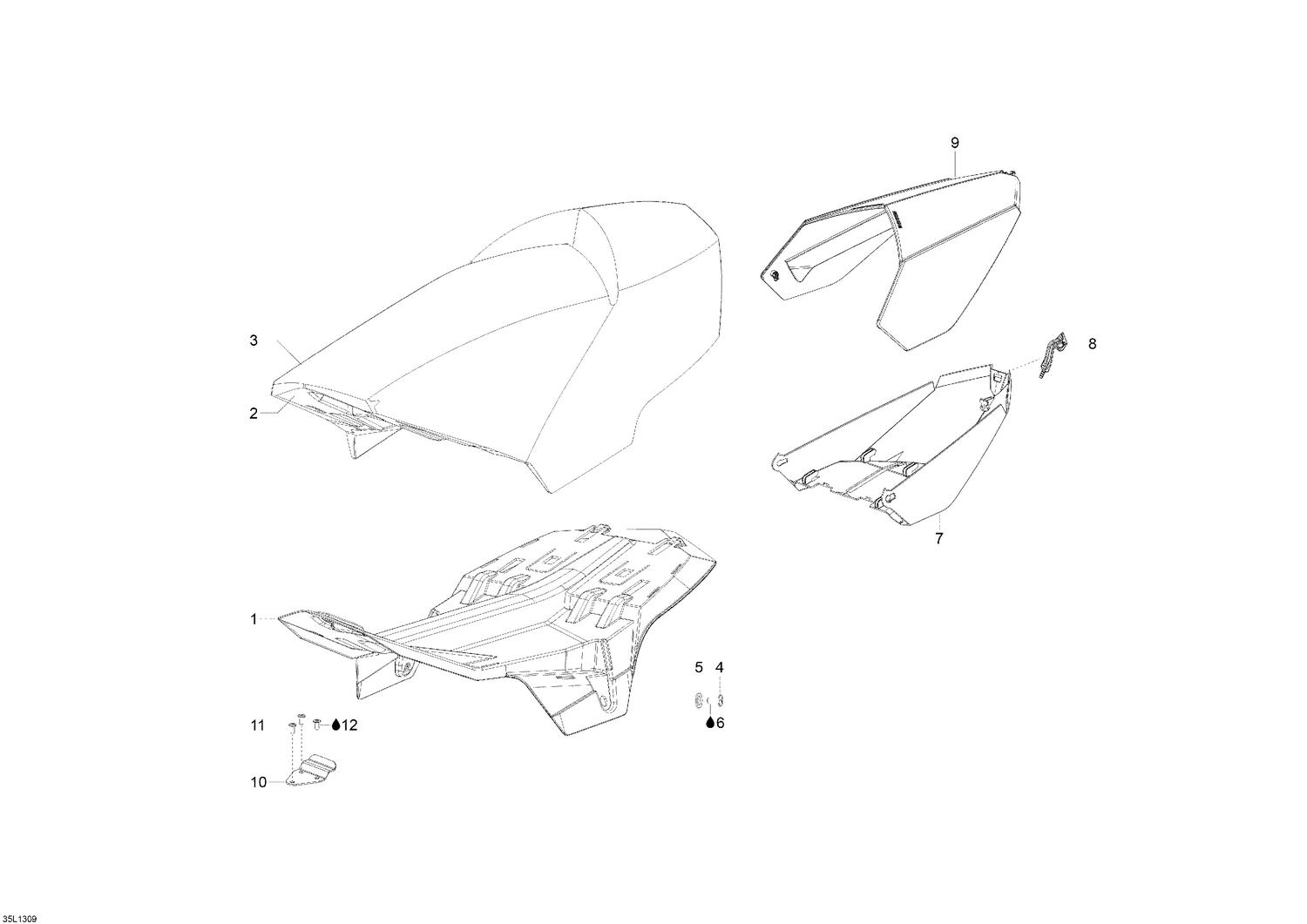

09- Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004899 | BASE-SEAT - Call your local BRP dealership |
| 2 | 510004932 | Seat Foam |
| 3 | 510005533 | Seat Cover |
| 4 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 5 | 510005346 | Washer |
| 6 | 293800060 | Loctite 243, 10ml |
| 7 | 511000757 | Trunk |
| 8 | 511000528 | Bracket |
| 9 | 511000568 | Trunk Cover |
| 10 | 510005129 | Seat Front Fastening Plate |
| 11 | 205461046 | Socket Screw M6 x 10 |
