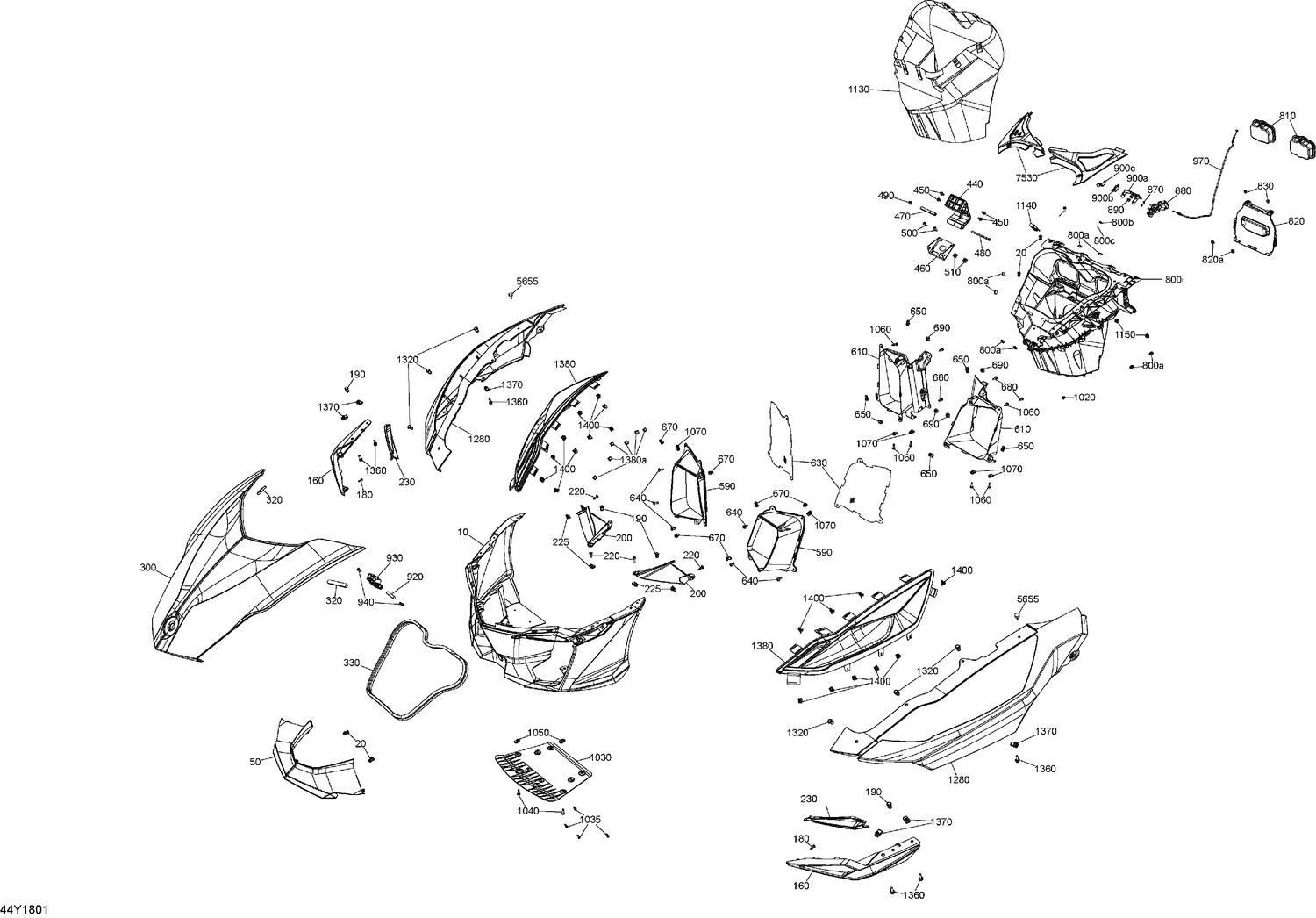

09- Storage Compartments
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 50 | 705005162 | Bumper Cap This part replaces 705007104. |
| 160 | 705004577 | Deep Black, LH Front Wing |
| 160 | 705004578 | Deep Black, RH Front Wing |
| 180 | 250000759 | Torx Truss Pt K40 X 16 |
| 190 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 200 | 705007067 | LH Front Deflector |
| 210 | 705007068 | RH Front Deflector |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 225 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 230 | 705007305 | Front Wing Moulding LH |
| 240 | 705007306 | Front Wing Moulding RH |
| 320 | 705006824 | Néoprene Pad |
| 330 | 219704371 | Neoprene Seal 3000 mm Long |
| 440 | 705003248 | Hood Arm |
| 450 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 460 | 705005434 | Hood Pivot |
| 470 | 705003322 | Spacer |
| 480 | 230061034 | Hex. Screw M6 X 110 |
| 490 | 233261434 | Flange Elastic Nut M6 |
| 500 | 250000712 | Torx Screw M6 X 20 |
| 590 | 705004579 | Lower Air Duct LH |
| 590 | 705004580 | Lower Air Duct RH |
| 610 | 705005859 | Rear Air Duct LH |
| 610 | 705005860 | Rear Air Duct, RH |
| 630 | 705008132 | Radiator Grille |
| 640 | 250000722 | Torx Screw M6 X 20 |
| 650 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 670 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 680 | 250000712 | Torx Screw M6 X 20 |
| 800a | 293740028 | Dual Lock Velcro Washer 3/4" |
| 800b | 390401400 | Rivet |
| 800c | 234031600 | Flat Washer 3 mm, Stainless Steel |
| 810 | 705011444 | Fuse Cover Ass'y |
| 820a | 293740028 | Dual Lock Velcro Washer 3/4" |
| 830 | 250000767 | Torx Truss Screw M6 X 12 |
| 870 | 234461608 | External Serrated Lock Washer 6 mm |
| 890 | 233261494 | Hex. Flange Elastic Nut M6 |
| 920 | 705004513 | Bushing |
| 930 | 705004468 | Hood Guide |
| 940 | 250000720 | Torx Screw K50 X 16 |
| 970 | 517305460 | Hood Cable |
| 1020 | 293830005 | Rubber Bumper |
| 1030 | 705002837 | Skid Plate |
| 1035 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1040 | 250000728 | Torx Screw M6 X 25 |
| 1050 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 1060 | 250000728 | Torx Screw M6 X 25 |
| 1070 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 1130 | Not | Available As Spare Part - Non Applicable |
| 1140 | 705004357 | Holding Strap |
| 1320 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1360 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1370 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 1400 | 517302785 | Edge Clip |
| 5655 | 708000759 | Rubber Stopper |
| 7530 | 705002839 | Service Center Access Panel LH |
| 7530 | 705005903 | Service Center Access Panel RH |
