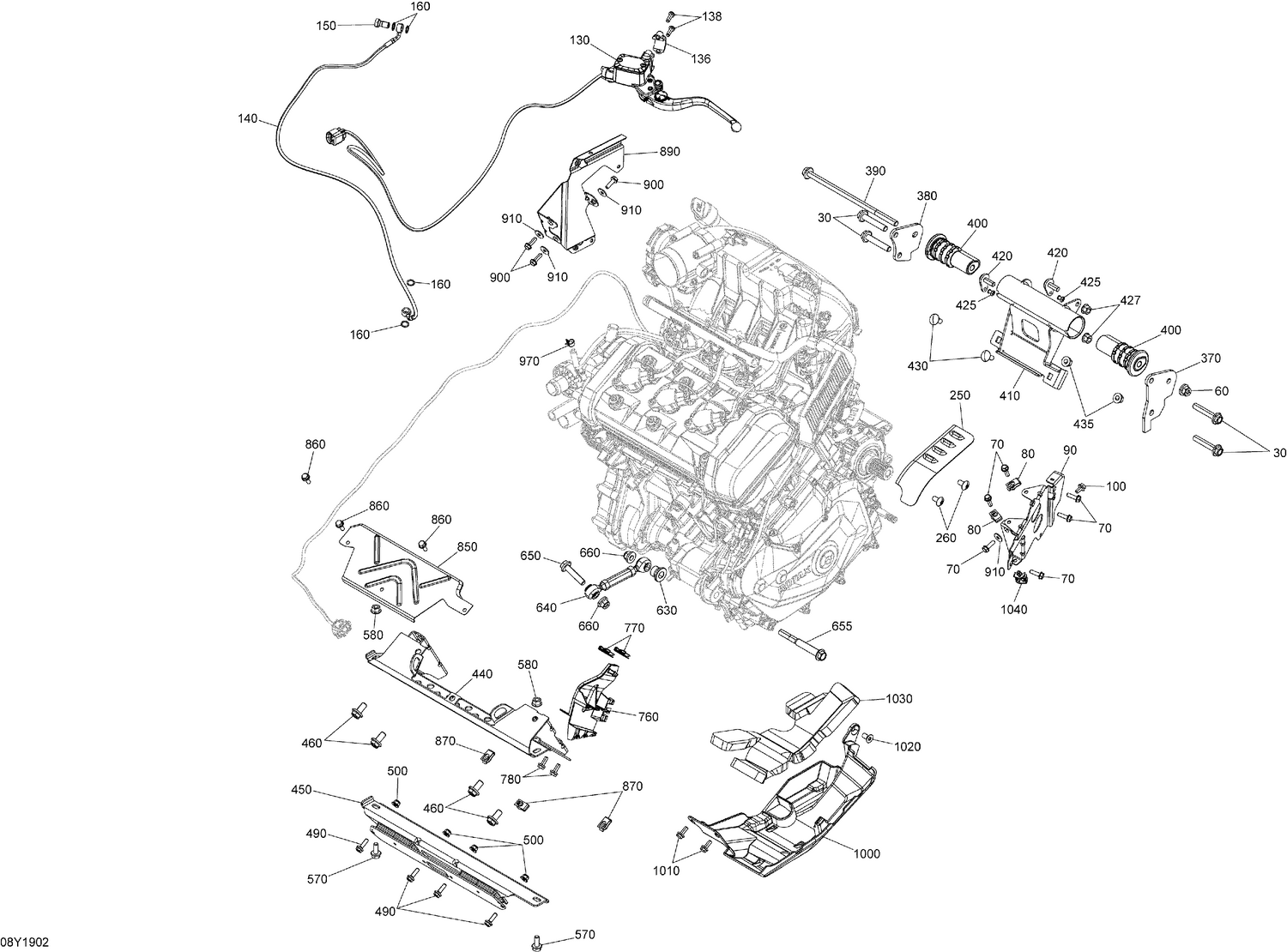

01- Engine
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 70 | 250000768 | Hex. Flange Screw M6 X 20 |
| 80 | 250100198 | Panel Nut M6 X 1.0 |
| 90 | 707001529 | ECM Support |
| 100 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 130 | 707001489 | Clutch Lever Ass'y |
| 136 | 719000049 | Clamps |
| 138 | 250000433 | Torx Screw M6 X 20 |
| 140 | 707001490 | Hose |
| 150 | 507032551 | Banjo Bolt |
| 160 | 414920600 | Washer |
| 250 | 707003651 | Pulley Cover This part replaces 707001660. |
| 260 | 250000746 | Torx Truss Screw M8 X 16 |
| 370 | 707001293 | LH Engine Support |
| 380 | 707001294 | RH Engine Support |
| 390 | 250000507 | Hex. Flange Screw M10 X 220 |
| 400 | 707000973 | Rubber Mount |
| 410 | 707000877 | Frame Extension |
| 420 | 707001292 | Attach |
| 425 | 390402300 | Pop Rivet 3/16" |
| 427 | 233081416 | Hex. Flange Nut M8 |
| 430 | 207782046 | Carriage Bolt M8 X 20 |
| 435 | 233081416 | Hex. Flange Nut M8 |
| 440 | 707001561 | Front Engine Support |
| 450 | 707000876 | Rubber Mount |
| 460 | 207502044 | Hex Flange Screw M10 X 20 |
| 490 | 207662044 | Hex. Flange Screw M6 X 20 |
| 500 | 233261466 | Hex. Flange Elastic Nut M6 |
| 570 | 207682046 | Hex. Flange Screw M8 X 20 |
| 580 | 233081416 | Hex. Flange Nut M8 |
| 630 | 707001736 | Spacer |
| 640 | 707001918 | Connecting Rod |
| 650 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 655 | 250001099 | Hex. Flange Screw M10 X 100 This part replaces 250000702. |
| 660 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 760 | 707001627 | Connector Suppor |
| 770 | 250100208 | Panel Nut M6 X 1.0 |
| 780 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 850 | 707601057 | Upper Heat Deflector |
| 860 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 870 | 250100198 | Panel Nut M6 X 1.0 |
| 890 | 707001530 | TCM Support |
| 900 | 250000768 | Hex. Flange Screw M6 X 20 |
| 910 | 234062600 | Flat Washer M6, Stainless |
| 970 | 414420700 | Spring Clamp |
| 1000 | 707001930 | Skid Plate |
| 1010 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1020 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 1030 | 707003260 | Acoustic Insulation This part replaces 707001657. |
