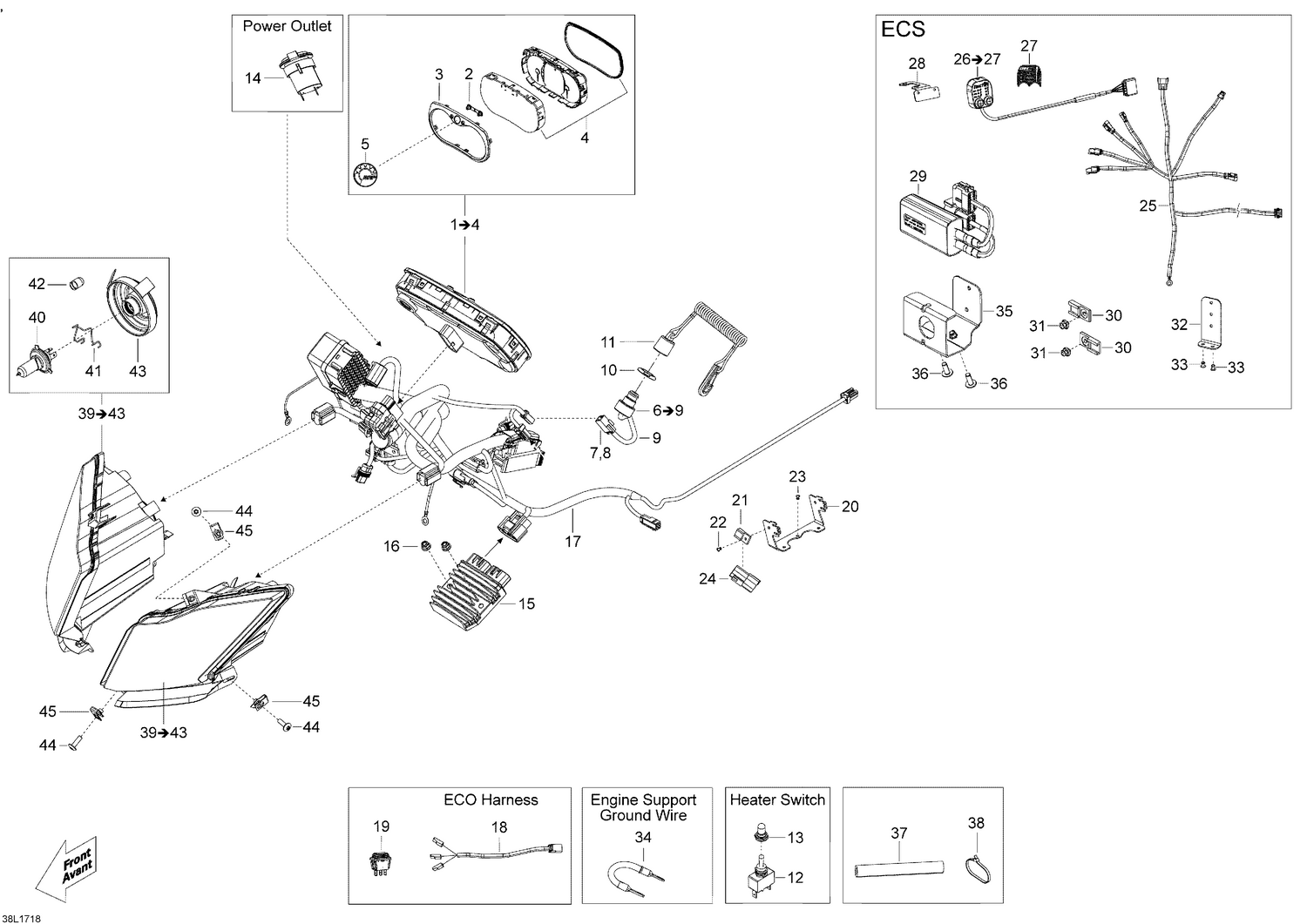

10- Electrical System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens And Seal |
| 5 | 516006224 | BRP Logo |
| 7 | 515175232 | Male Terminal |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 409902000 | Tubing |
| 10 | 278002963 | Safety Nut (DESS Switch) |
| 11 | 515178046 | DESS Cap (Learning Key) |
| 14 | 710001248 | DC Power Outlet |
| 15 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 515179615 | NEEDS DESCRIPTION This part replaces 515177568. |
| 19 | 515177569 | ECO Rocker Switch |
| 20 | 515177073 | FUSEBOX SUPPORT - Call your local BRP dealership |
| 21 | 270000141 | Clip |
| 22 | 293150037 | Avdel Rivet 3/16" |
| 23 | 390402200 | Pop Rivet 3/16 |
| 24 | 710003006 | Housing |
| 34 | 515176883 | Ground Cable |
| 37 | 39066 | ALUMINIUM TUBE D22 - Call your local BRP dealership |
| 38 | 293750001 | Tie-Rap 94 mm |
| 38 | 293750002 | Tie-Rap 142 mm |
| 38 | 414115200 | Tie-Rap 180 mm |
| 40 | 515176274 | H4 Halogen Bulb (60/55W, 12V) |
| 41 | Not | Available As Spare Part - Bulb Holder |
| 42 | 515176498 | Cap |
| 43 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 44 | 250000722 | Torx Truss Screw M6 x 20 |
